VW Tiguan 1.4 CAXA / CAXC
8
Water connections

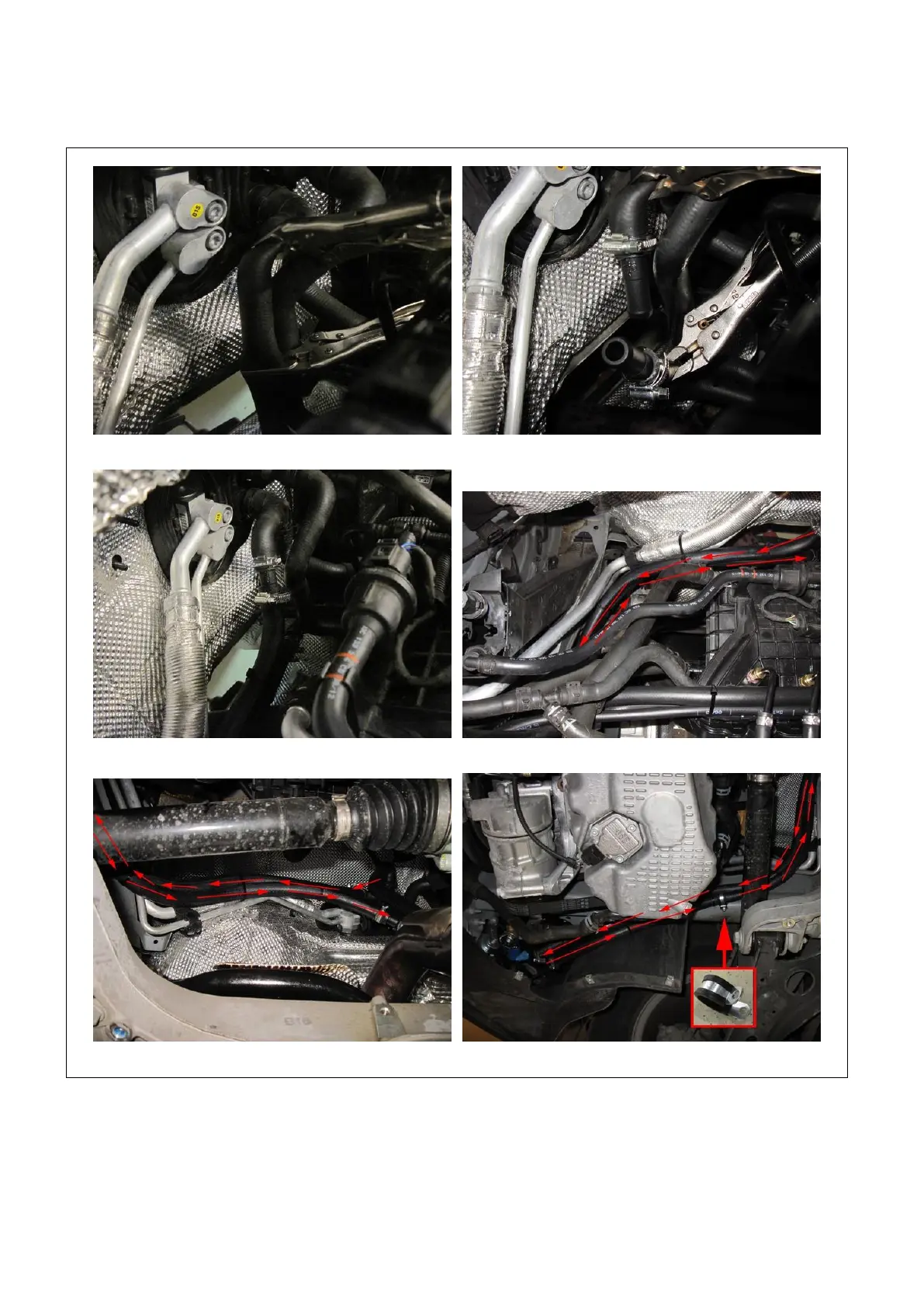

Cut lower heater hose connection against firewall. Mount 2x 16x16mm water connectors.
Mount water hoses to just mounted connectors.Water hose routing. Fixate with pull-straps.
Water hose routing. Mount hoses to reducer. Fixate hoses with clamp.
