Prins VSI-2.0 - Mounting the AFC & Injection Module

PAGE 15
076/2613400
Copyright © Prins Autogassystemen B.V. 2014
VW Tiguan 1.4 CAXA / CAXC
15

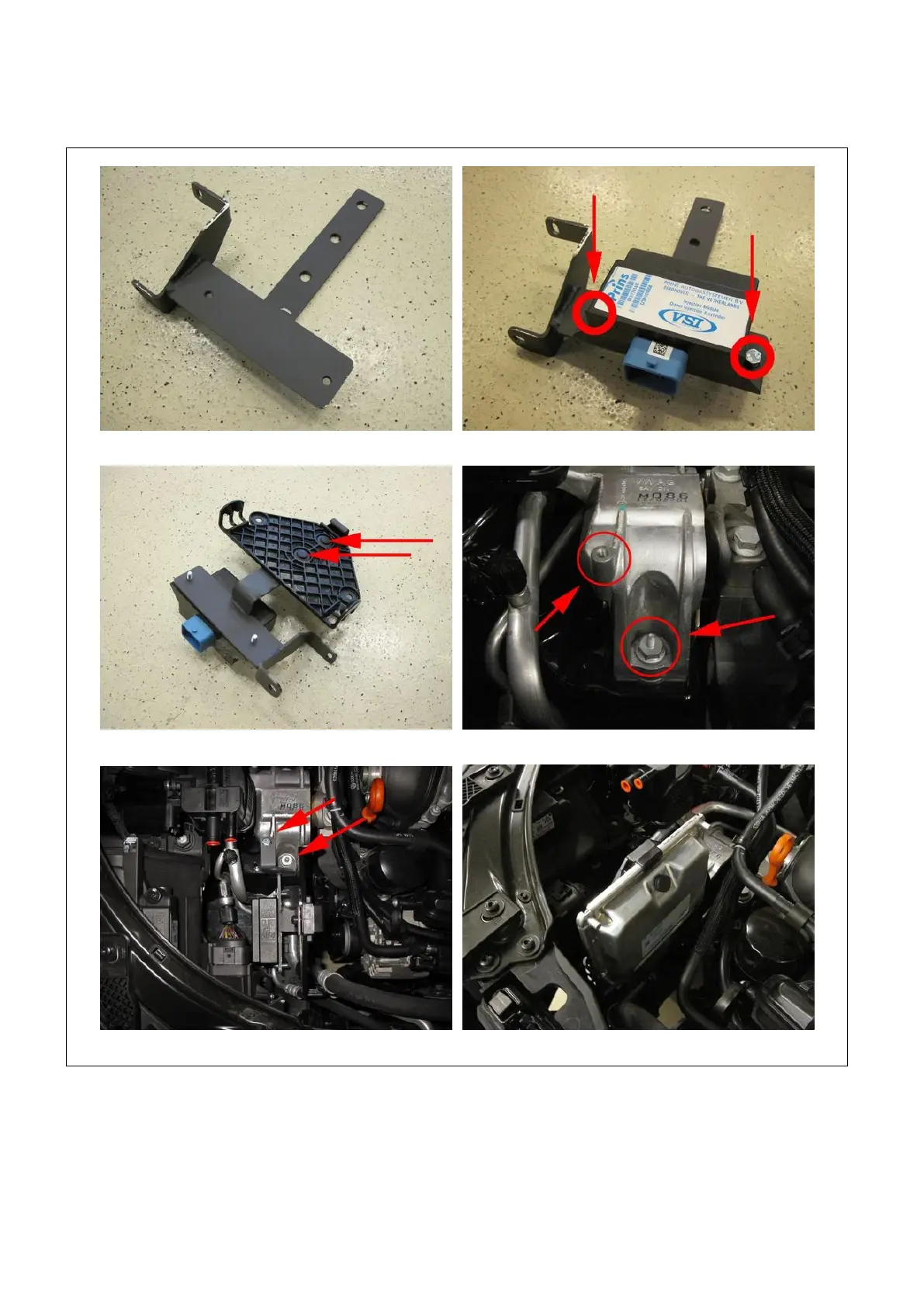

Mounting the AFC & Injection module
Mount injection module on bracket with 2x M6 bolts and spring washers.
Mount plastic AFC clip with quick-clips to bracket. Mount bracket to engine support.
Mount bracket to engine support. Mount AFC onto AFC clip.
