VW Tiguan 1.4 CAXA / CAXC
7

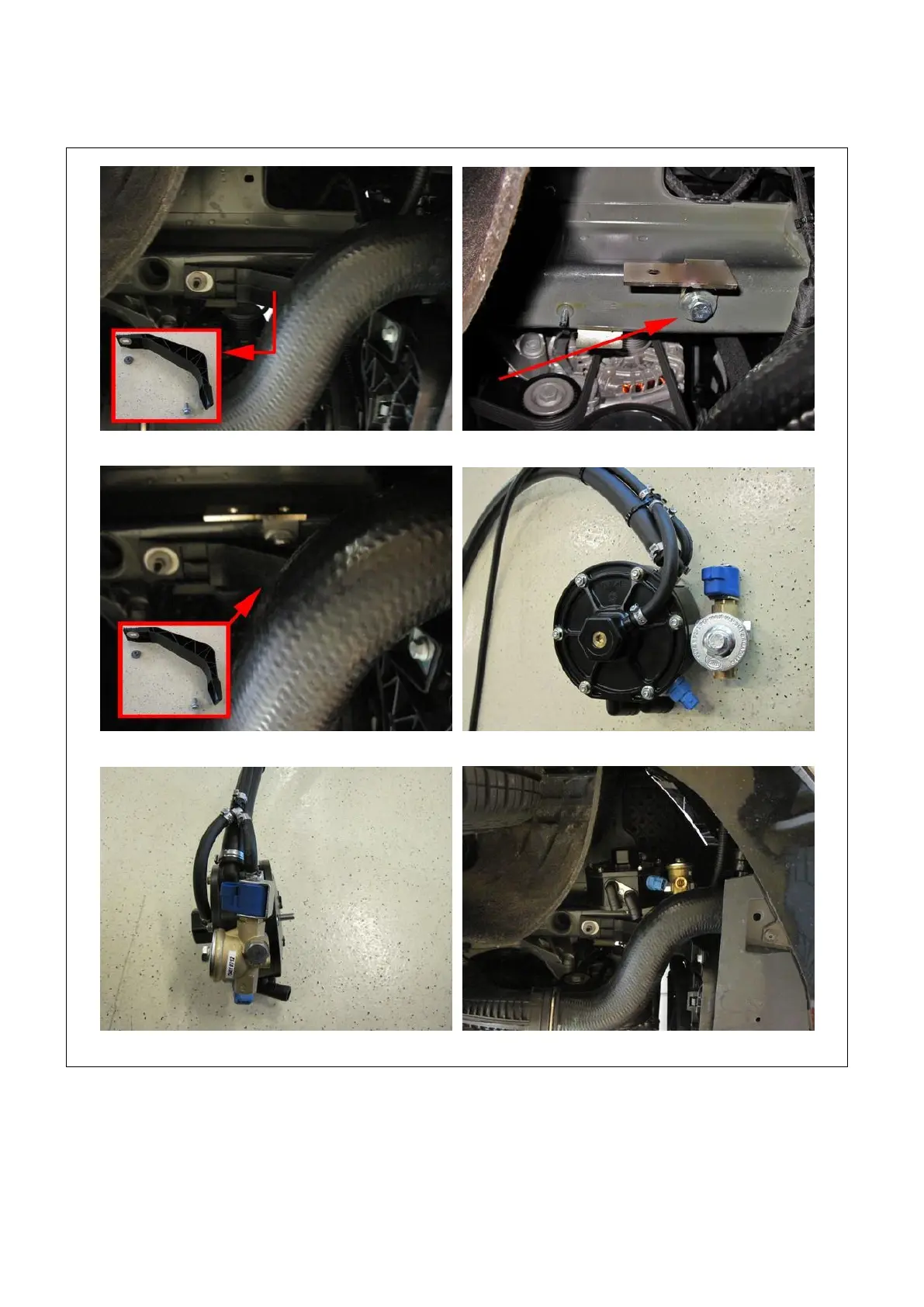

Mounting the reducer
Remove plastic support (if present). Mount reducer bracket with M10 bolt and washer.
Mount back plastic support. Connect hoses to reducer.
Connect hoses to reducer. Mount reducer with nut and spring washer to reducer bracket.
