8 | English
Exhaust Hose Installation
In this stage, you will need…
• Assembled heat exhaust hose
• Pro Breeze smart portable air conditioner
1. Clip the exhaust hose into the rear panel
outlet situated on the back of your air
conditioner. Ensure it is tightly secured in
place
2. When in Cooling Mode, position your air
conditioner close to a window or door, with
the hose outside, to allow the unit to vent
the warm air out of the room

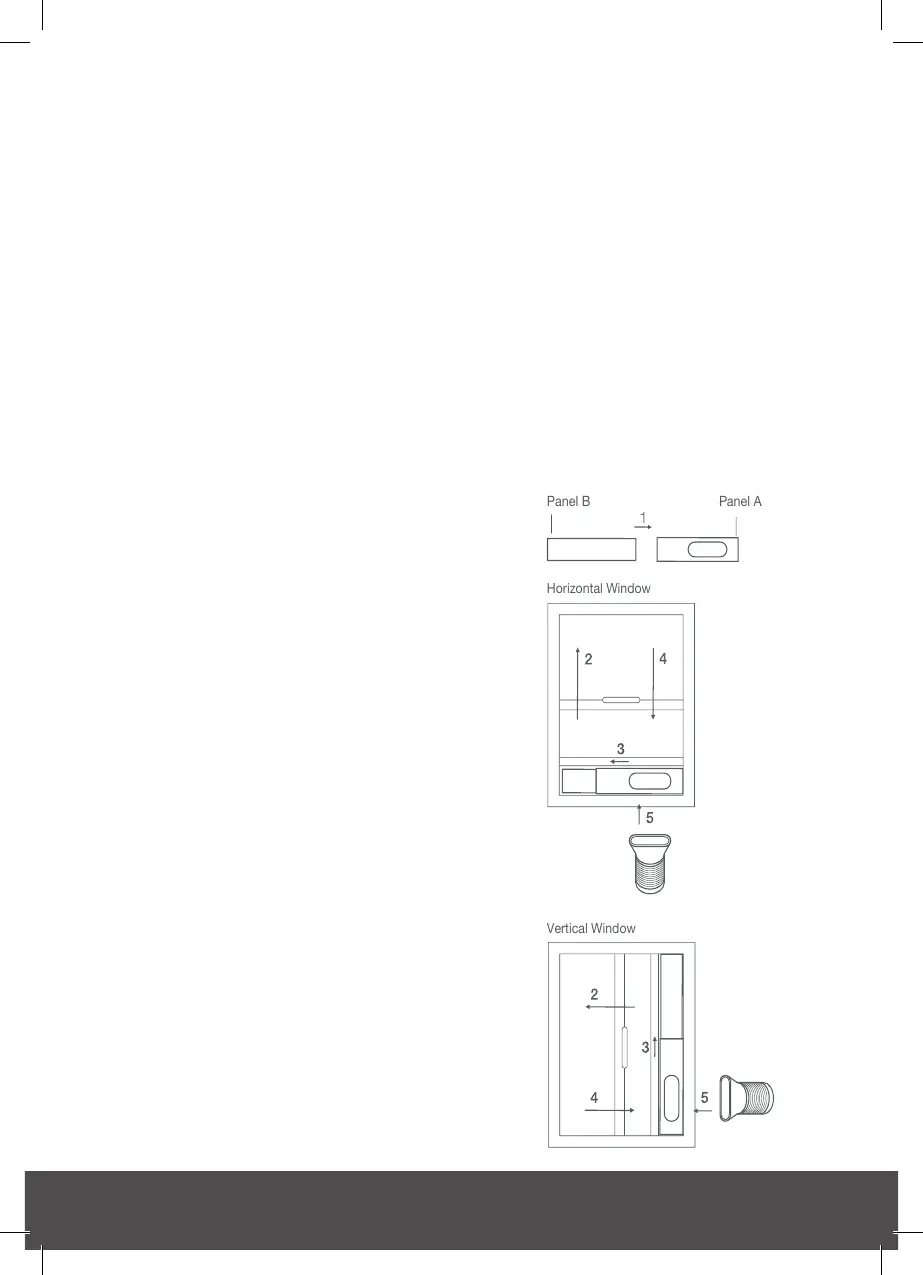

Sliding Windows Sealing Board Assembly
Installation
You will need:
• Window sealing board kit (Panel A&B +
Clip)
• Finished heat exhaust hose short
connector
1. Insert Panel B into Panel A and adjust to
the length or height of the window (see
images)
2. Open your window and place the sealing
board assembly into the open space.
3. Adjust to ensure an exact t and secure
with the clip.
4. Close the window to lock everything into
place.
5. Attach the heat exhaust hose short
connector to the elliptical hole.
The sealing board assembly is now ready for
use.
Horizontal Window
Vertical Window
