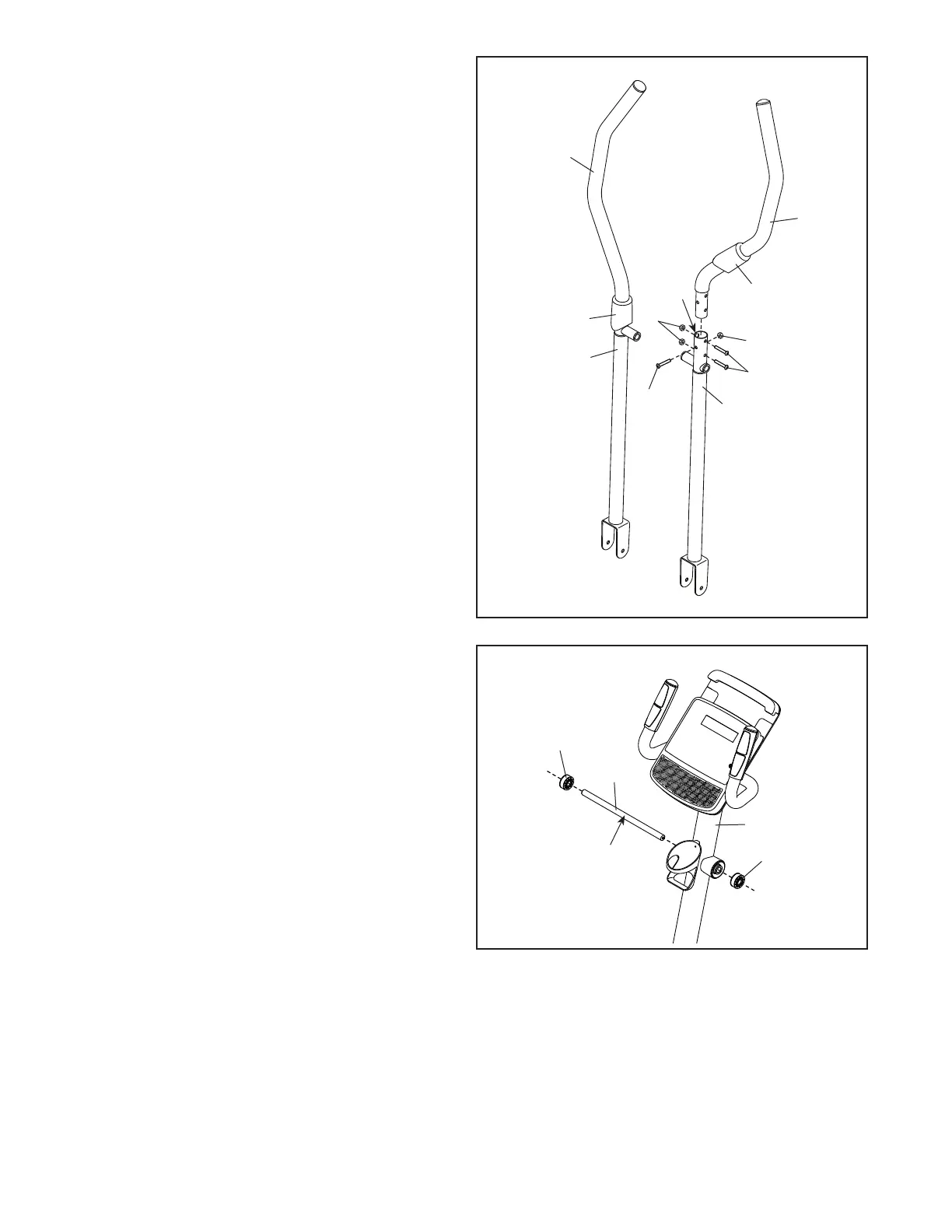

9. Identify the Right Upper Body Arm (8).
Slide an Upper Body Arm Cover (42) upward
onto the Right Upper Body Arm (8).
Next, insert the Right Upper Body Arm (8) into
an Upper Body Leg (5).
Tip: Have a second person hold the Upper
Body Arm Cover (42) while you perform this
action:
Attach the Right Upper Body Arm (8) to the
Upper Body Leg (5) with three M8 x 41mm Bolts
(50) and three M8 Jam Nuts (38). Make sure
that the Jam Nuts are inside the hexagonal
holes (E).
Assemble the Left Upper Body Arm (6) and
the other Upper Body Leg (5) in the same
way.
E
Grease
26
69
69
2
10
10. Insert the Pivot Axle (26) into the Upright (2), and
center the Pivot Axle.
Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to both ends of the Pivot Axle (26).
Then, slide a Pivot Spacer (69) onto each side of
the Pivot Axle (26).
