Pro-Form CADENCE LE User Manual

13
13
14

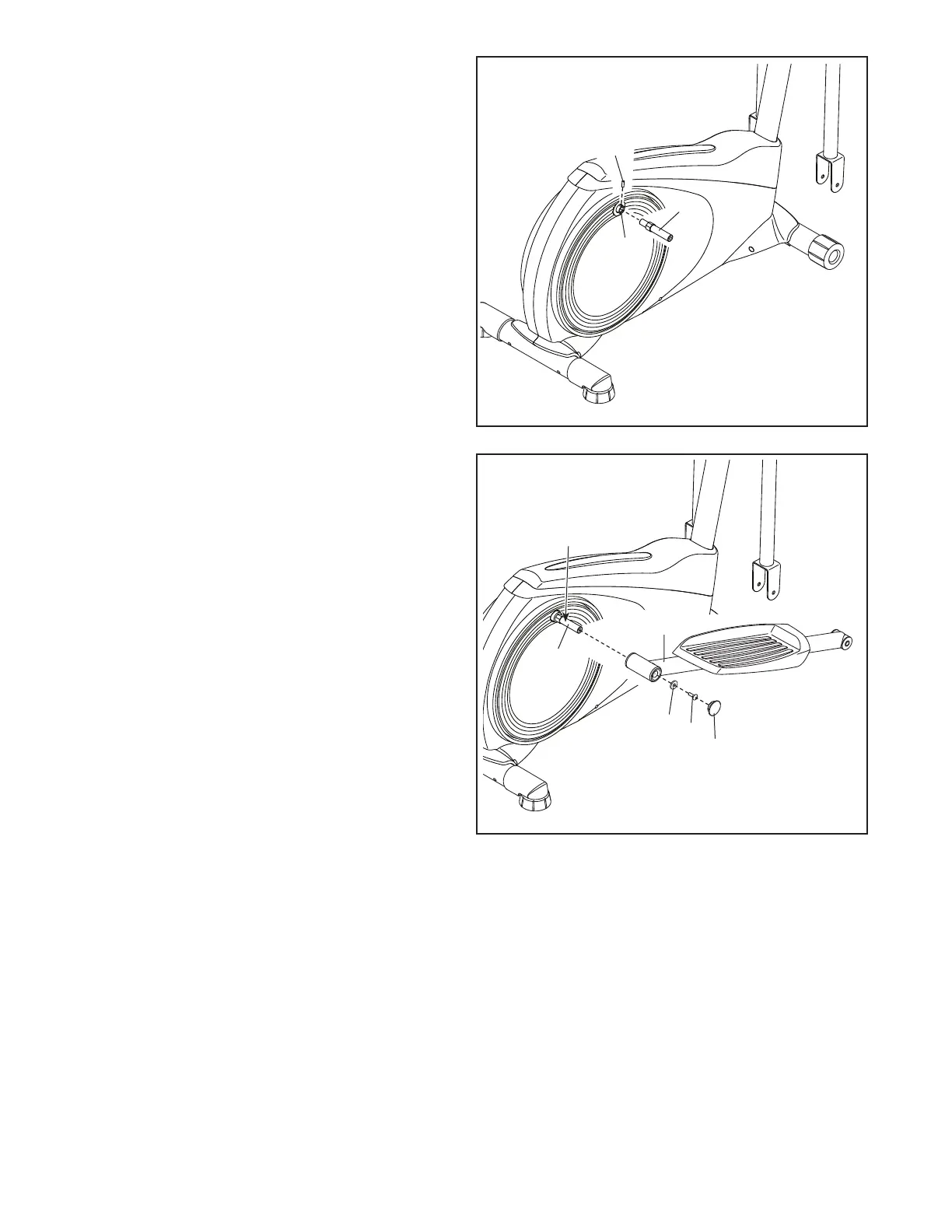

13. Orient a Crank Arm Stud (32) as shown, and
tighten it firmly into the Right Crank Arm (80).
IMPORTANT: Make sure that the Crank Arm
Stud is firmly tightened.
Then, tighten an M6 x 8mm Set Screw (89) into
the Right Crank Arm (80) and the Crank Arm
Stud (32).
Repeat this step on the other side of the
elliptical.
14. Apply a small amount of grease to the axle on
the right Crank Arm Stud (32).
Slide the Right Pedal Arm (12) onto the axle on
the right Crank Arm Stud (32).
Next, slide an M10 x 28mm Washer (83) onto an
M10 x 20mm Screw (40), and tighten the Screw
into the axle.
Then, press a Pedal Arm Cap (74) into the Right
Pedal Arm (12).
Repeat this step on the other side of the
elliptical.
74
40
83
12
89
32
80
32
Grease

Pro-Form CADENCE LE Specifications

General

Brand	Pro-Form
Model	CADENCE LE
Category	Fitness Equipment
Language	English
