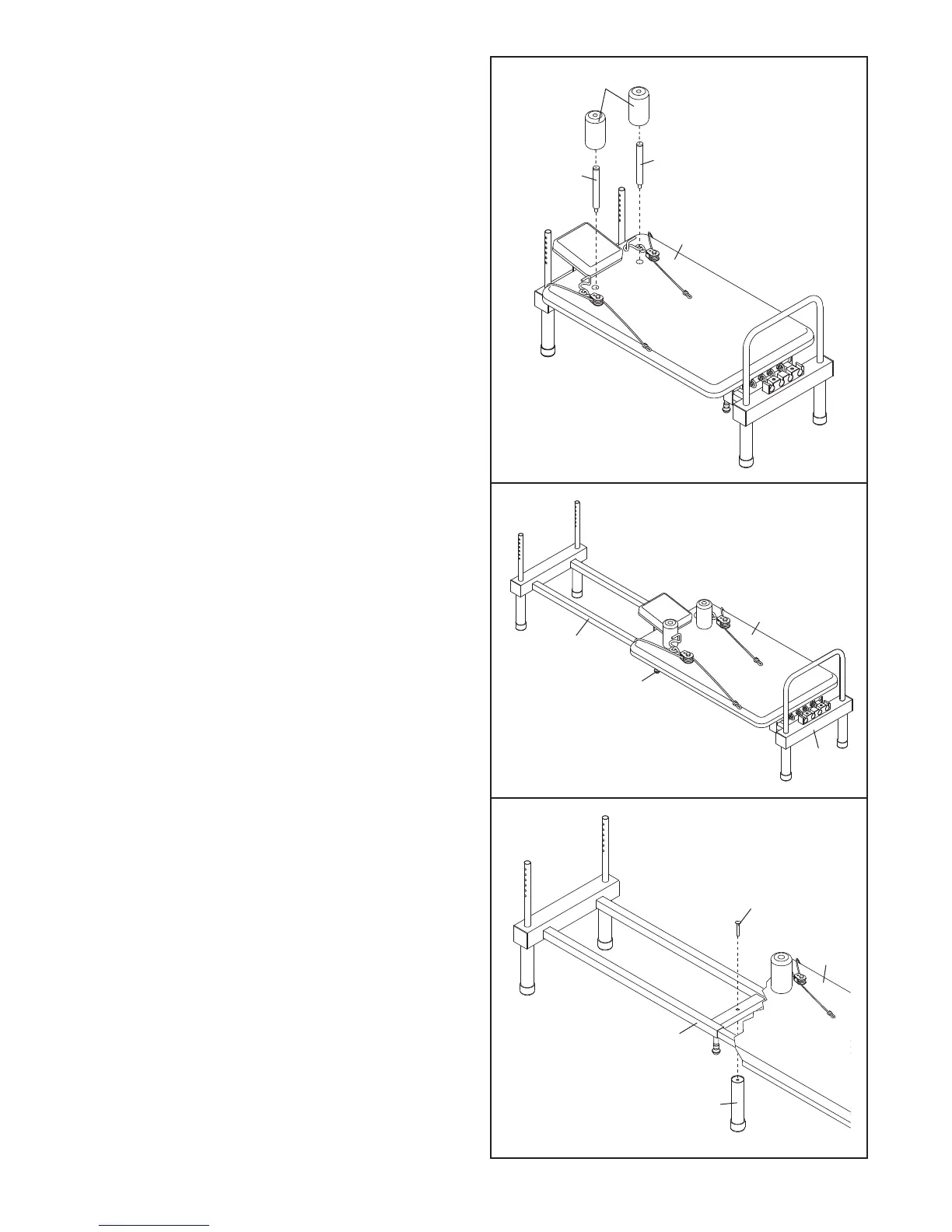

6. Tighten the two Carriage Tubes (11) into the
holes in the Carriage (6).
Slide a Shoulder Block (10) onto each Carriage
T
ube (11).
8. Rest the exercise bench on its side for this step.
Insert an M10 x 50mm Carriage Bolt (41) through
the indicated hole in the Outer Frame (1). Tighten
a Cap Leg (14) onto the Carriage Bolt.
7. Pull the Adjustment Knob (17) out of the Inner
Frame (2). Slide the Inner Frame out of the Outer
Frame (1) and engage the Knob into the adjust-
ment hole in the Inner Frame.
Slide the Carriage (6) to the indicated end of the
exercise bench.
6
7
8
11
6
1
0
1
1
17
6
6
1
41
14
1
2
