7

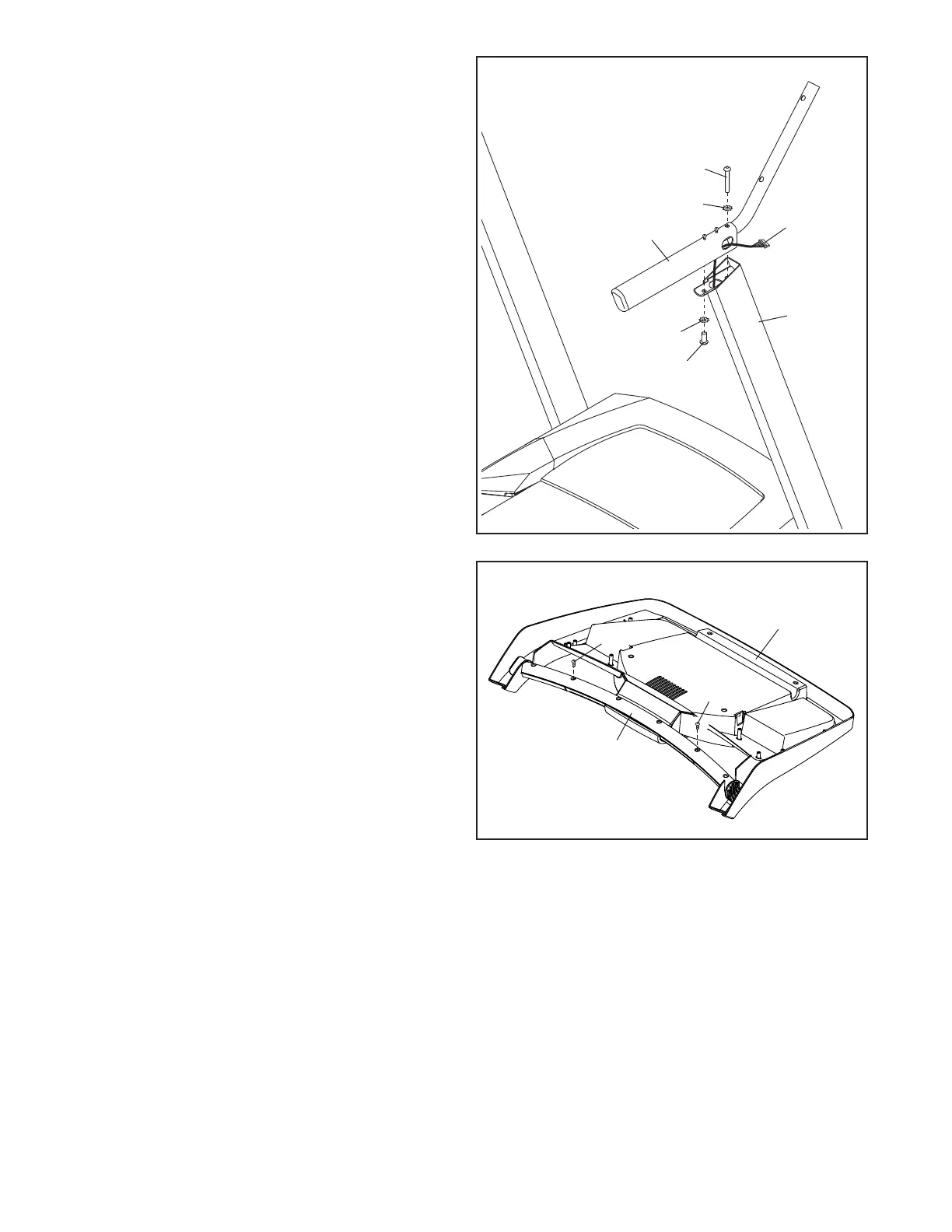

7. Set the console assembly face down on a
soft surface to avoid scratching the console
assembly.
Remove and discard the two indicated screws
(C). Then, remove the Console Crossbar (61).
Console
Assembly
C
61
6. Identify the Right Handrail (64). Have a second
person hold the Right Handrail near the Right
Upright (76).
Route the Upright Wire (63) into the bottom of
the Right Handrail (64) and out of the hole in the
Right Handrail.
Insert and partially tighten a 5/16" x 3/4"
Screw (5) with a 5/16" Star Washer (6) into the
Right Upright (76) and the Right Handrail (64).
Then, partially tighten a 5/16" x 3" Screw (7)
with a 5/16" Star Washer into the Right Handrail
and the Right Upright;
Note: There are no wires on the left
side.
76
63
5
64
6
6
7
C
6
To Next Page
