13
15

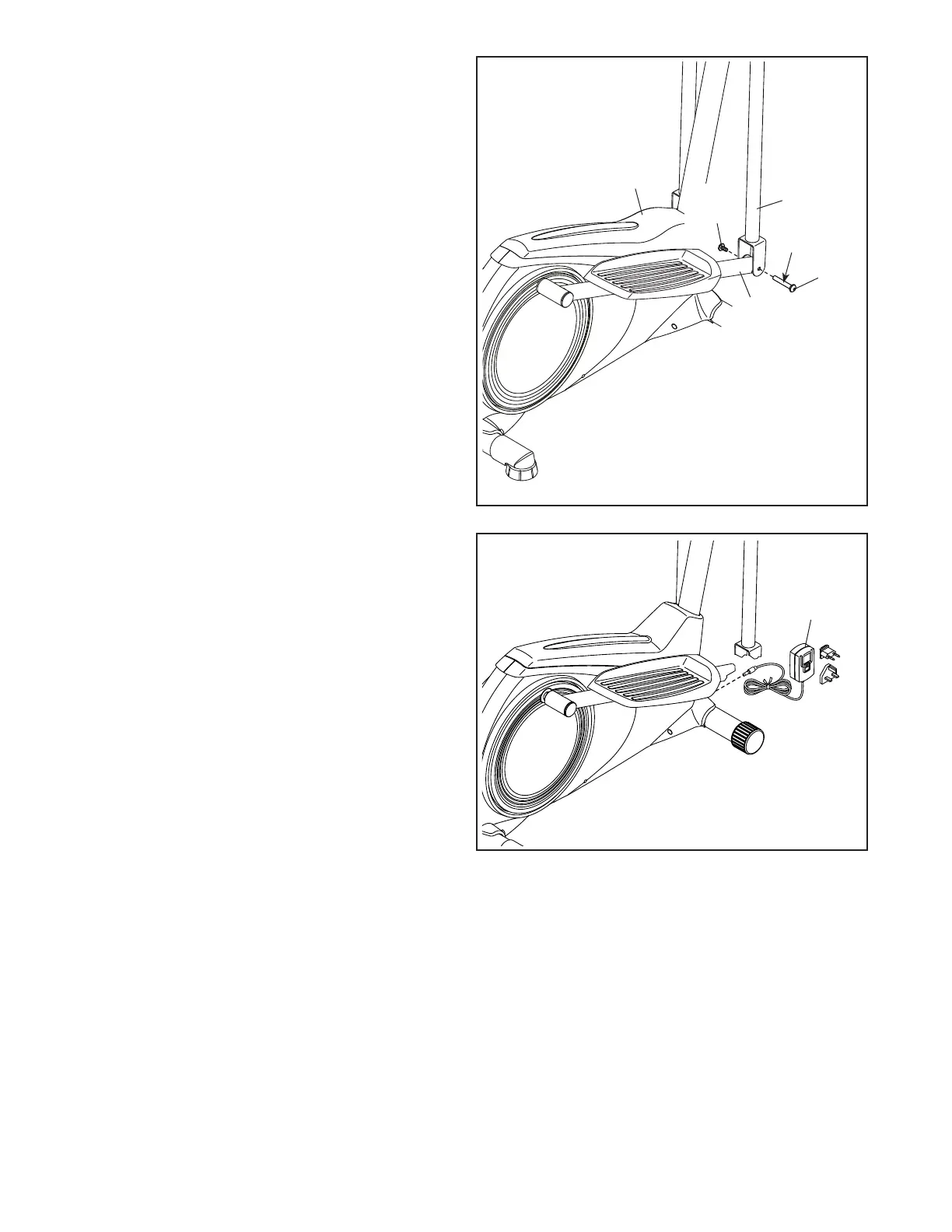

15. See assembly steps 4 and 5. Tighten the
M10 x 20mm Screws (40) and the M10 Locknut
(33). Then, press the Top Shield (41) into place.
Next, apply a small amount of grease to an M6
Bolt Set (25).
Hold the end of the Right Pedal Arm (12) inside
the bracket on the right Upper Body Leg (5).
Attach the right Upper Body Leg (5) to the Right
Pedal Arm (12) with the M6 Bolt Set (25).
Repeat this step on the other side of the
elliptical.
5
25
12
41
25
Grease
16
75
16. Plug the Power Adapter (75) into the receptacle
on the front of the elliptical.
Note: To plug the Power Adapter (75) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 14.
17. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat
beneath the elliptical to protect the floor.
