10

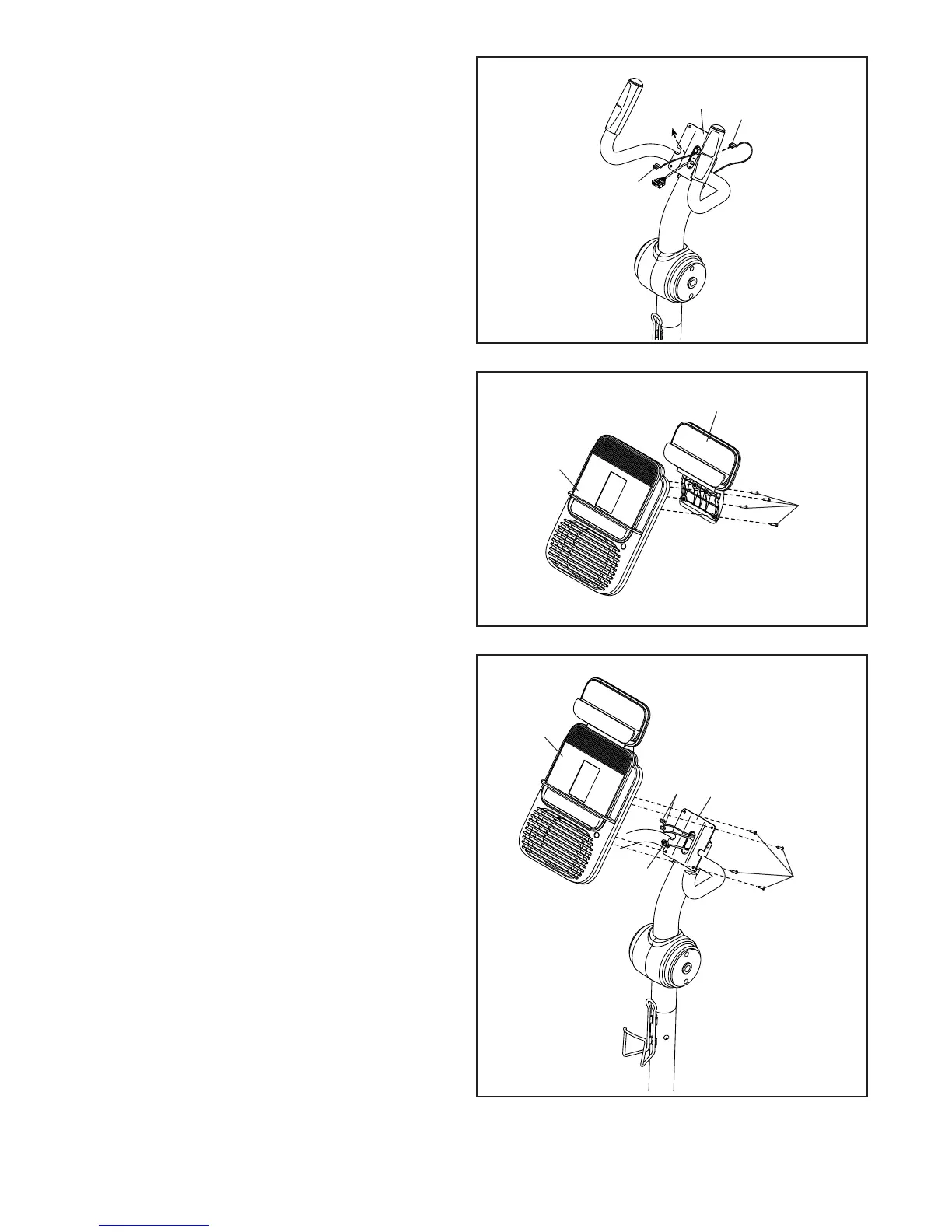

9. Insert the Pulse Wires (118) upward through the
Upright (3) as shown.
9
3
118
118
10
11
5
5
121
112
118
48
103
3
Avoid pinching
the wires
10. Attach the Tablet Holder (121) to the Console (5)
with four #8 x 16mm Screws (112); start all the
Screws, and then tighten them.
11. While a second person holds the Console
(5) near the Upright (3), plug the Upper Wire
Harness (48) and the Pulse Wires (118) into the
receptacles on the Console.
The connectors on the Upper Wire Harness
(48) and the Pulse Wires (118) should slide
easily into the receptacles and snap into
place. If a connector does not slide easily into a
receptacle, turn the connector and try again. If
you do not connect the connectors properly,
the Console (5) may become damaged when
you use the elliptical.
Insert the excess wire into the Upright (3).
Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (3) with four
M4 x 16mm Screws (103); start all the Screws,
and then tighten them.
To Next Page
