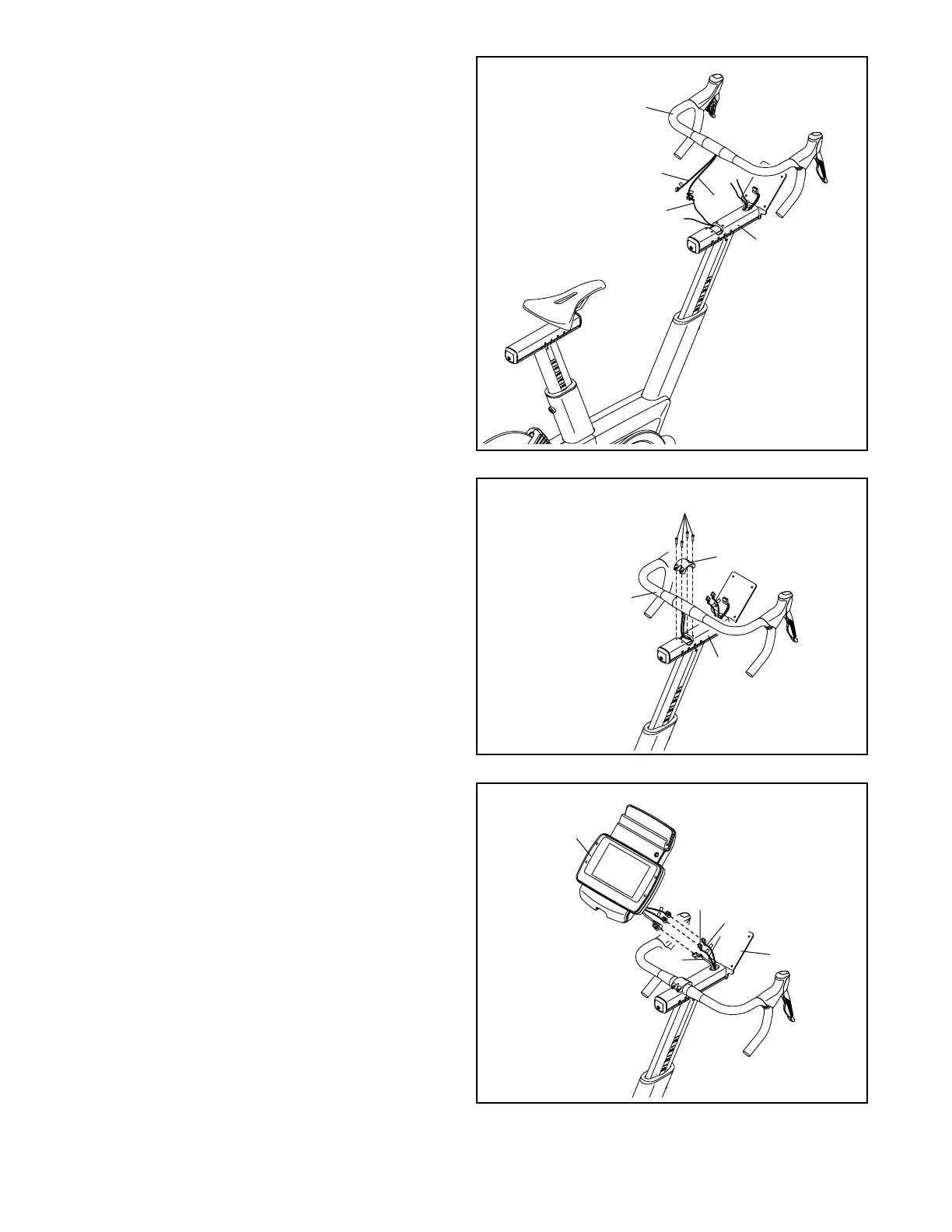

9. Have a second person hold the Console (9) near
the Handlebar Carriage (105).
Connect the console wires to the Main Wire (68)
and to the Extension Wires (107, 108); make
sure to connect the console wire that has an
“L” tag to the Extension Wire that has an “L”
tag, and connect the console wire that has an
“R” tag to the Extension Wire that has an “R”
tag.
Insert the excess wire into the Console (9).
7. Have a second person hold the Handlebar (7)
near the Handlebar Carriage (105).
Locate one of the remaining wire ties in the
Handlebar Carriage (105). Tie the indicated end
of the wire tie to the Right Extension Wire (107).
Then, pull the other end of the wire tie until
the Right Extension Wire is routed through the
Handlebar Carriage. Then, untie and discard the
wire tie.
Route the Left Extension Wire (108) through
the Handlebar Carriage (105) in the same
way.
8. Tip: Avoid pinching the wires. Hold the
Handlebar (7) on the Handlebar Carriage (105),
and rotate the Handlebar to the desired angle;
make sure that the Handlebar is centered on
the Handlebar Carriage.
Attach the Handlebar (7) with the Handlebar
Clamp (28) and four M6 x 16mm Screws (110);
start all four Screws, and then tighten them.
7
8
7
7
110
28
105
105
108
107
Wire Tie
Avoid pinching
the wires
