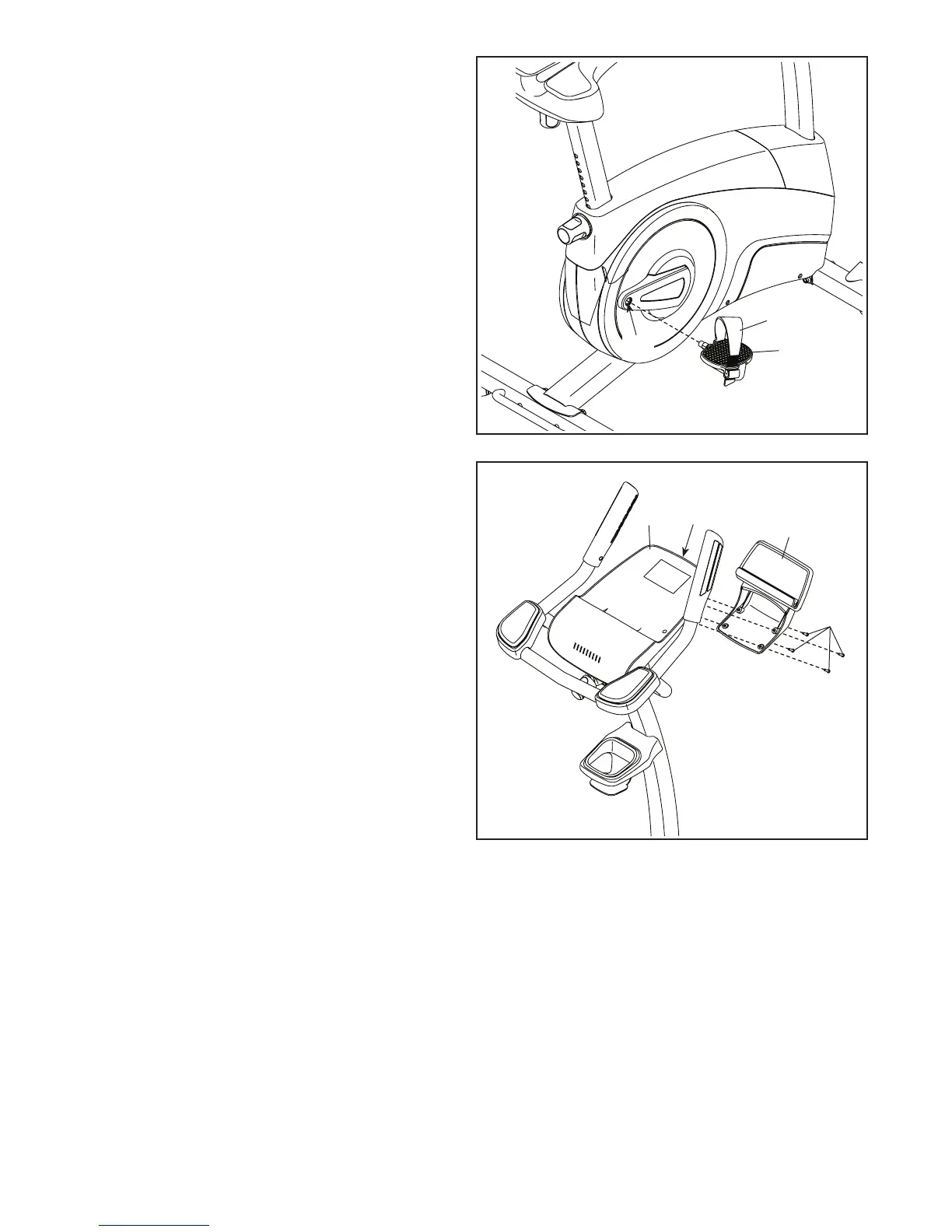

11. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (19).
Firmly tighten the Left Pedal (not shown) coun-
terclockwise into the Left Crank Arm (not shown).
IMPORTANT: You must turn the Left Pedal coun-
terclockwise to attach it.
Then, attach the right pedal strap to the Right
Pedal (21) as shown. Attach the left pedal
strap in the same way.
19
11
91
92
12
12. IMPORTANT: If you purchased the optional
iFit module, insert the iFit module into the iFit
port on the Console (13) before you attach
the Tablet Holder (91). After the exercise
bike is assembled, follow the instructions
included with the iFit module.
Attach the Tablet Holder (91) to the Console (13)
with four #8 x 12mm Screws (92); start all the
Screws, and then tighten them.
13
iFit
Port
