6
9
20
16
4
5
18
Hole
9
33
Console
Wires
Console
Ground
Wire
20
16

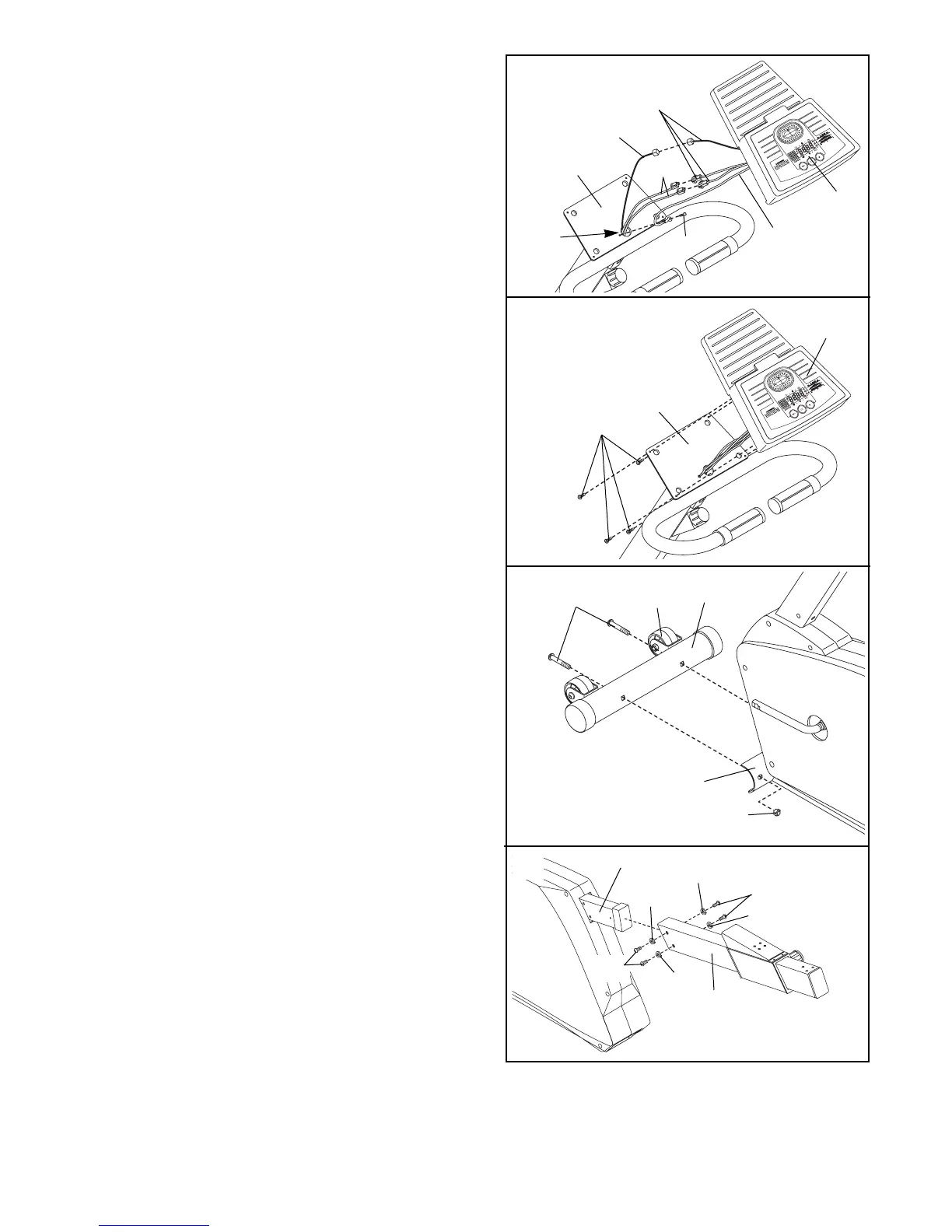

5. Attach the Console (9) to the Handlebar (16) with
four Console Back Screws (20). Make sure that no
wires are pinched between the Console and the
Handlebar.
4. Hold the Console (9) near the Handlebar (16) as
shown. Identify the green console ground wire and
attach it to the Handlebar with a Console Back
Screw (20). Make sure that the console ground
wire connector is pointed toward the center of
the indicated hole as shown.
Next, connect the Reed Switch Wire (18) and the
two Pulse Wires (33) to the corresponding wires on
the Console (9).
6. Attach the Front Stabilizer (2) to the front of the
Frame (1) with two M10 x 75mm Carriage Bolts (72)
and two M10 Nylon Locknuts (45). Make sure that
the Front Stabilizer is turned so the Wheels (69)
are not touching the floor.
2
69
1
72
45
6
7. Slide the Carriage Bar (7) onto the indicated tube on
the Frame (1). Attach the Carriage Bar to the Frame
with four M10 x 25mm Button Screws (71) and four
M10 Split Washers (17).
7
17
7
17
17
17
71
71
1
