10
10

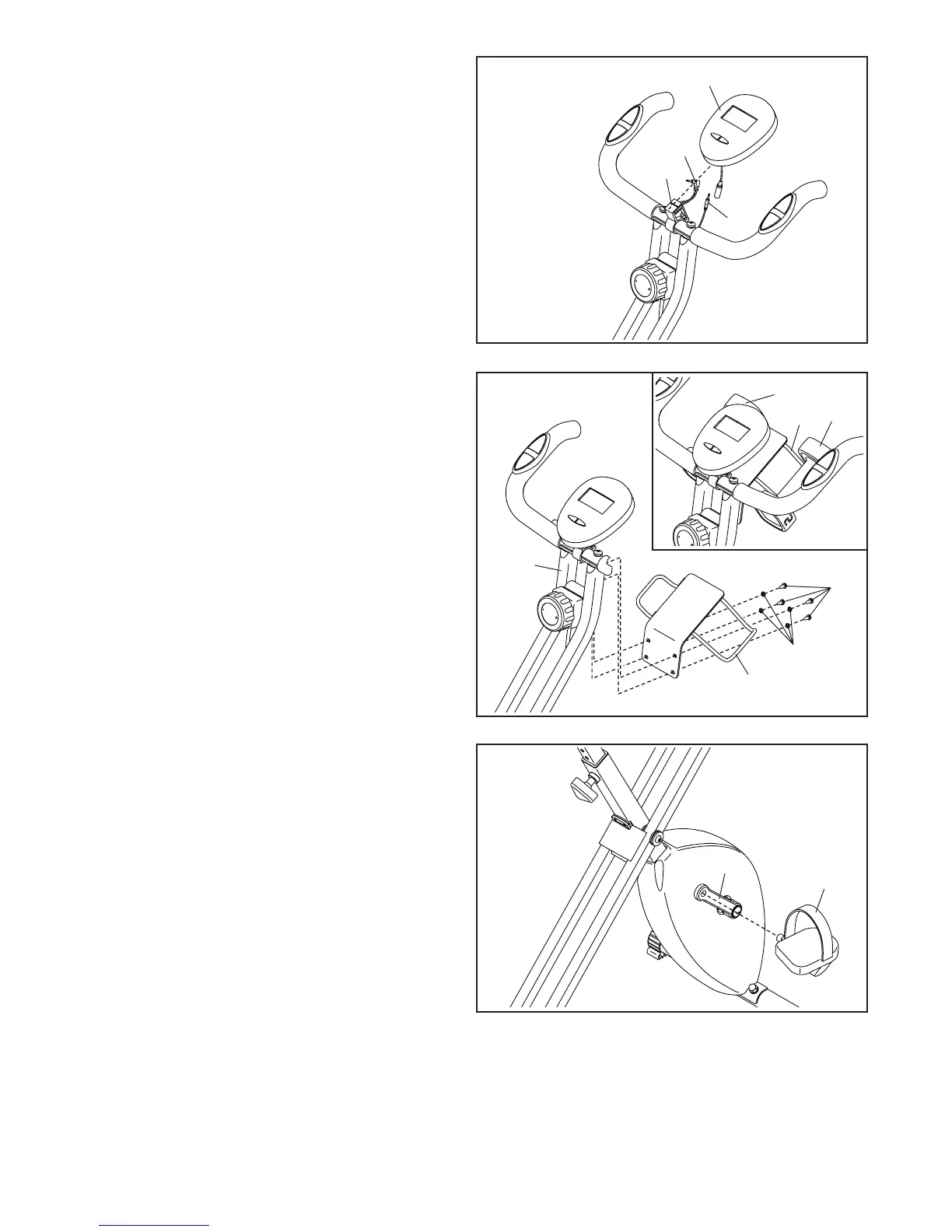

10. Attach the Dumbbell Rack (9) to the Handlebar
Frame (1) with four M6 x 15mm Screws (18) and
four M6 Washers (19); start all the Screws, and
then tighten them.
See the inset drawing. Set the two Dumbbells
(10) on the Dumbbell Rack (9).
9
9. Have a second person hold the Console (8) near
the Console Mount (7). Connect the wire on the
Console to the Reed Switch Wire (23). Then,
plug the Monitor Wire (24) into the back of the
Console.
Tip: Avoid pinching the wires. Slide the
Console (8) onto the Console Mount (7). Then,
pivot the Console and the Console Mount to the
desired angle.
See step 7. Tighten the M4 x 25mm Screw (22).
Avoid pinching
the wires
23
24
8
7
18
19
1
9
12. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor.
11
11. Identify the Right Pedal (11).
Using an adjustable wrench, firmly tighten the
Right Pedal (11) clockwise into the Right Crank
Arm (25).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
25
11
9
10
10
To Next Page
