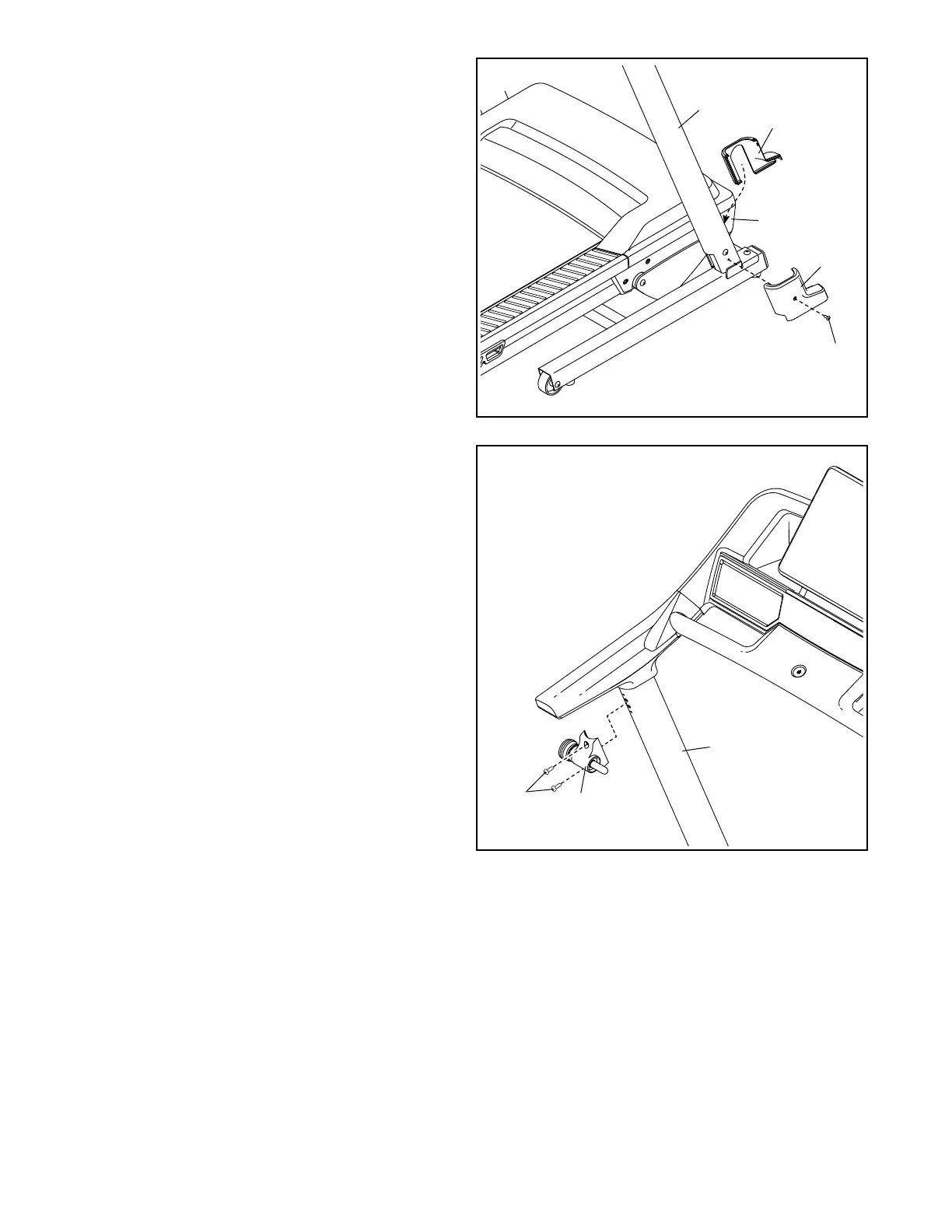

9. Orient the Storage Latch (79) as shown. Attach
the Storage Latch to the left Upright (80) with
two #8 x 3/4" Screws (29); start both Screws,
and then tighten them.
8. Slide the Right Inner Upright Cap (84) between
the Right Upright (81) and the Motor Hood (62).
Then, press the Right Outer Upright Cap (85)
against the Right Inner Upright Cap until they
snap together.
Tighten an #8 x 3/8" Screw (6) into the Right
Outer Upright Cap (85). Do not overtighten the
Screw.
Repeat this step on the left side of the
treadmill.
84
62
85
6
8
81
To Next Page
