11
6
88
86
85
80
E
81
7
12
12
7

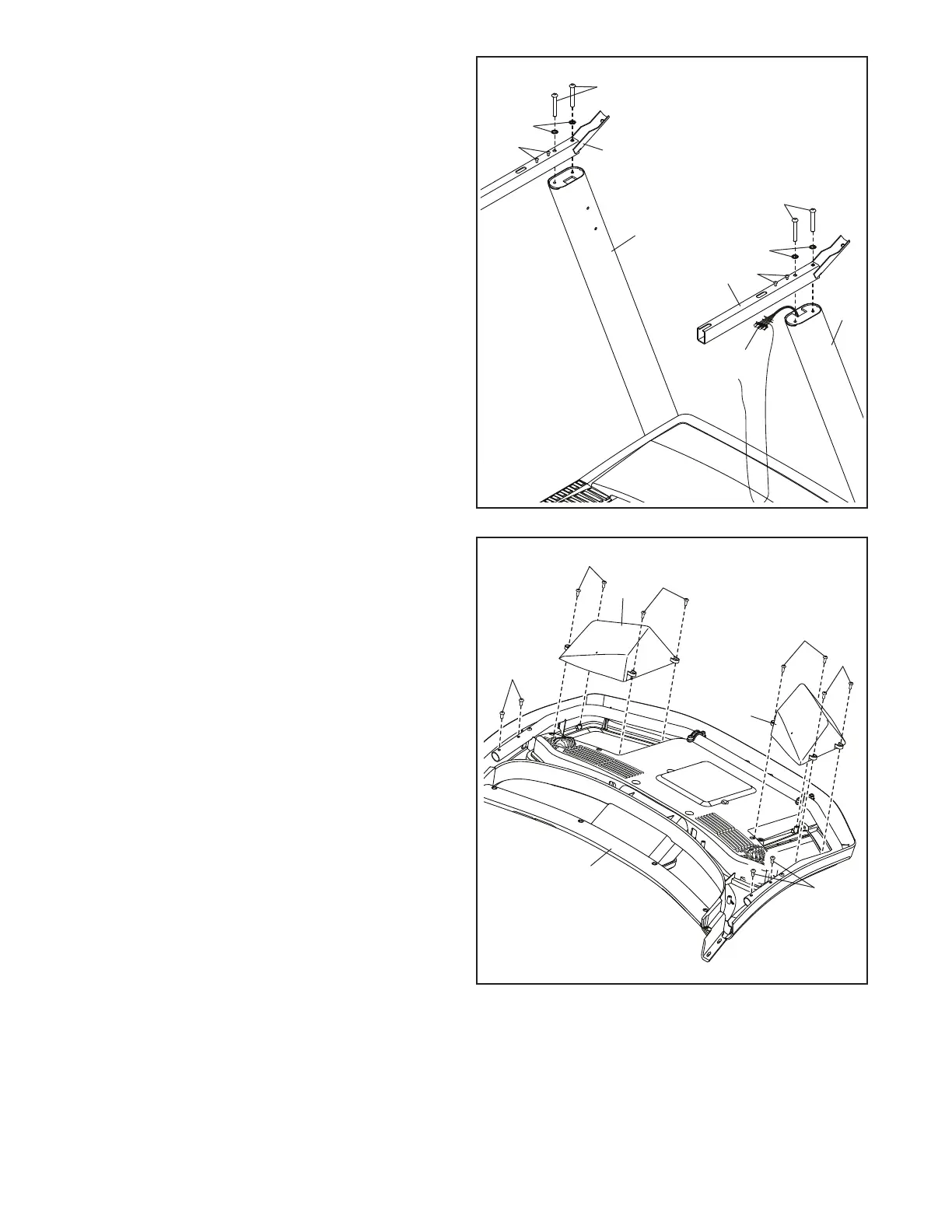

6. Identify the Left and Right Handrails (80, 81).
Attach the Right Handrail (81) to the Right
Upright (86) with two 5/16" x 2 1/4" Screws (7)
and two 5/16" Star Washers (12) in the location
shown; start both Screws, and then tighten
them. Make sure not to pinch the Upright
Wire (88), and make sure that the wire is on
the indicated side of the Right Upright.
Attach the Left Handrail (80) to the Left
Upright (85) in the same way. Note: There are
no wires on the left side.
Then, remove and discard the indicated
screws (E).
E
7
7. Set the console assembly (F) face down on a
soft surface to avoid scratching the console
assembly. Attach the Right and Left Trays
(99, 98) with eight #8 x 1/2" Screws (5); start all
eight Screws, and then tighten them. Do not
overtighten the Screws.
Then, remove and save the four 1/4" x 1/2"
Screws (24).
5
24
99
98
24
F
5
5
5
To Next Page
