12

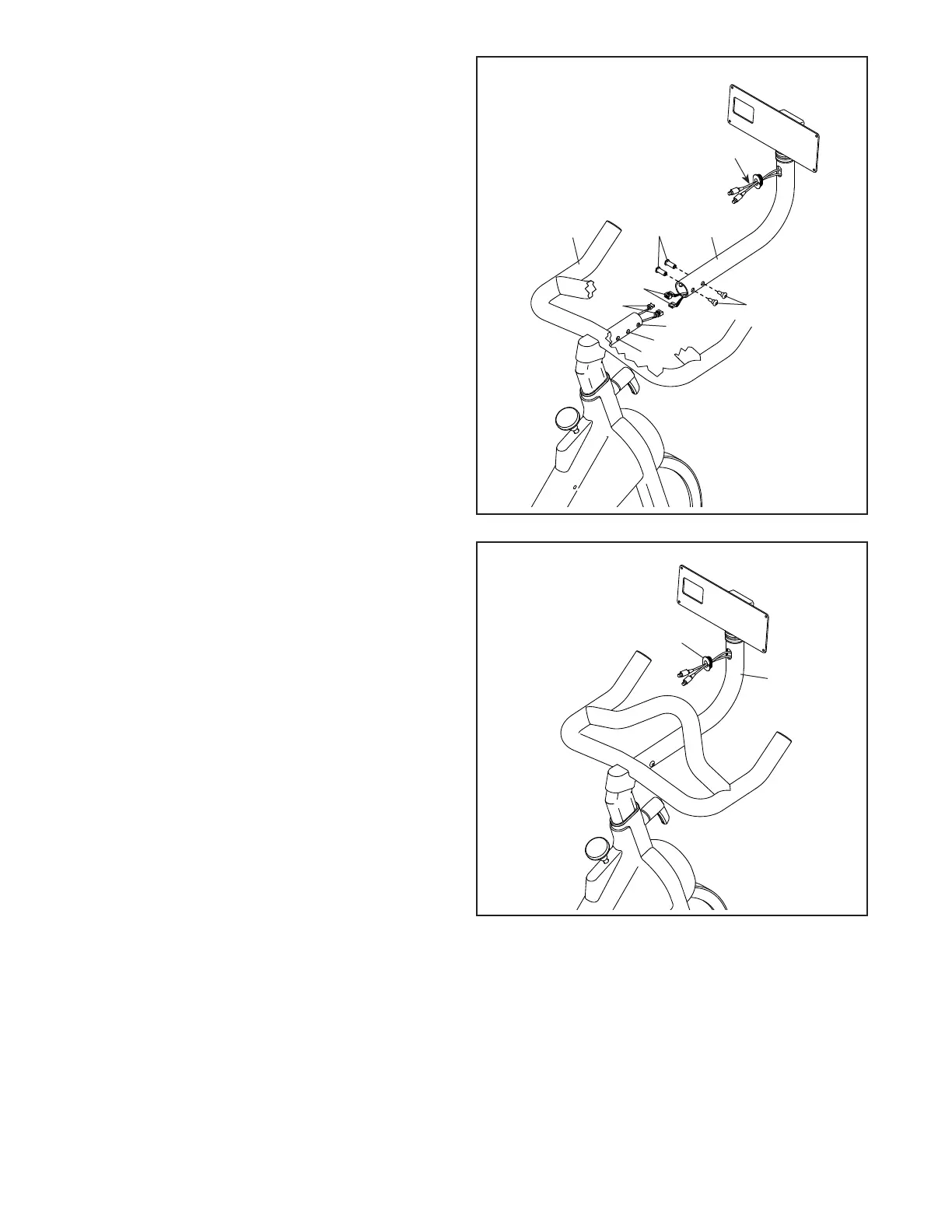

10. While a second person holds the Console Mount
(5) near the Handlebar (4), connect the 6-pin
and 8-pin Wires (90, 91) in the Console Mount to
the matching connectors on the Upper Wire (B)
in the Handlebar.
Tip: Avoid pinching the wires. Gently pull on
the wires in the indicated location (F) as you
slide the Console Mount (5) onto the Handlebar
(4). Make sure that the wires inside the
Handlebar are out of the way of the bolt
holes.
You can attach the Console Mount (5) in either
the standard position or the extended position.
For the standard position, align the Console
Mount with the inner holes (G, H). For the
extended position, align the Console Mount with
the outer holes (H, I).
Tip: Avoid pinching the wires. Attach the
Console Mount (5) with two M6 Bolt Sets (70).
11
11. Press the Wire Protector (98) into the Console
Mount (5).
98
5
10
70
B
90, 91
5
G
H
I
F
4
Avoid pinching
the wires
70
To Next Page
