10. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware
may be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the
walking belt (see page 26). To protect the floor or carpet, place a mat under the treadmill.

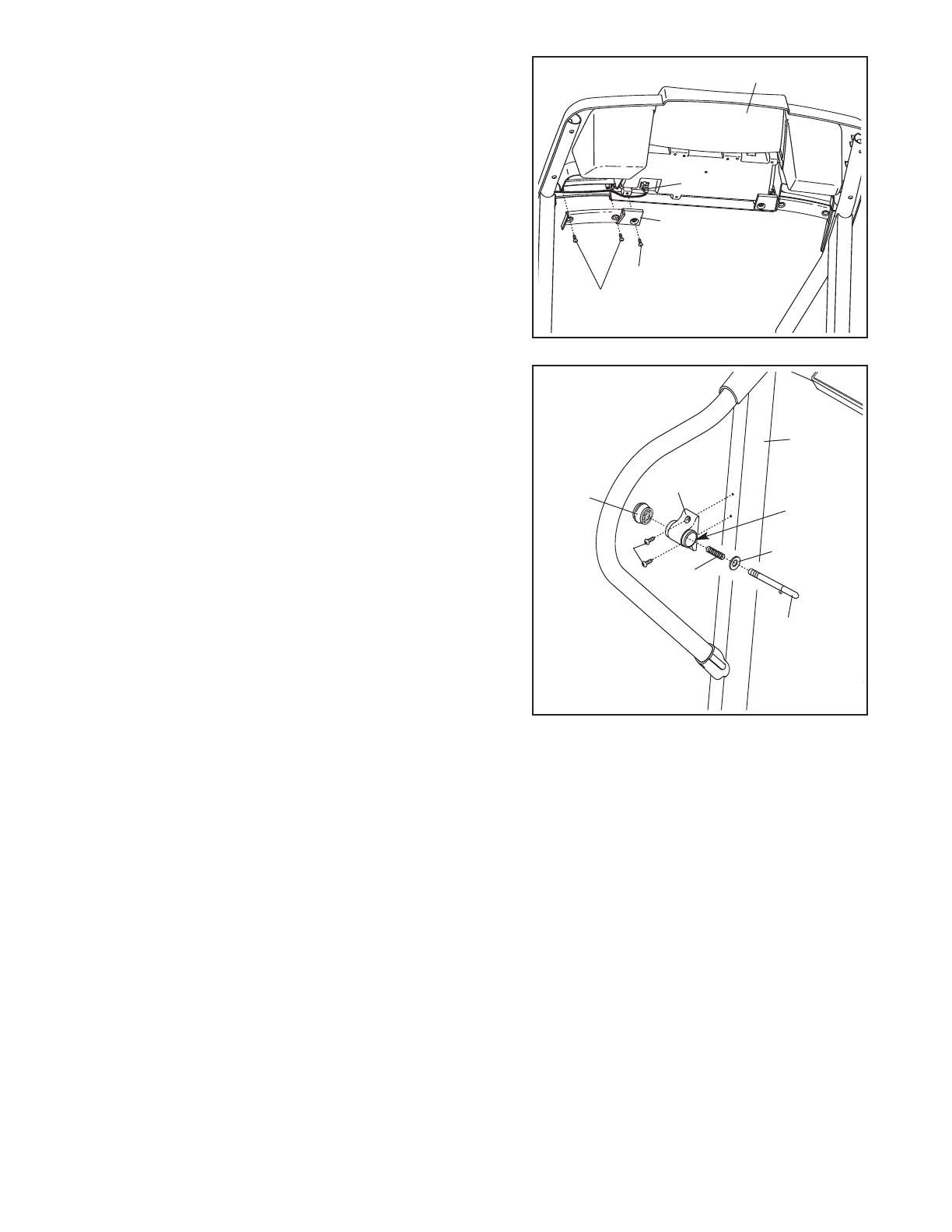

9. Attach the Latch Housing (29) to the left Upright (69)
with two 3/4” Screws (2).
Make sure that the large
hole in the Latch Housing is on the side shown.
Remove the knob from the pin. Make sure that the col-
lar and the spring are on the pin as shown. Then, in-
sert the pin into the Latch Housing (29), and tighten the
knob back onto the pin.
Pin
Collar
Spring
Knob
69
29
2
9
Large
Hole
42
36
2
47
8. Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
t
wo 1/2” Screws (48) and a 3/4” Screw (2) into the Right
Grip Plate and the Console Base (47).
48
8
To Next Page
