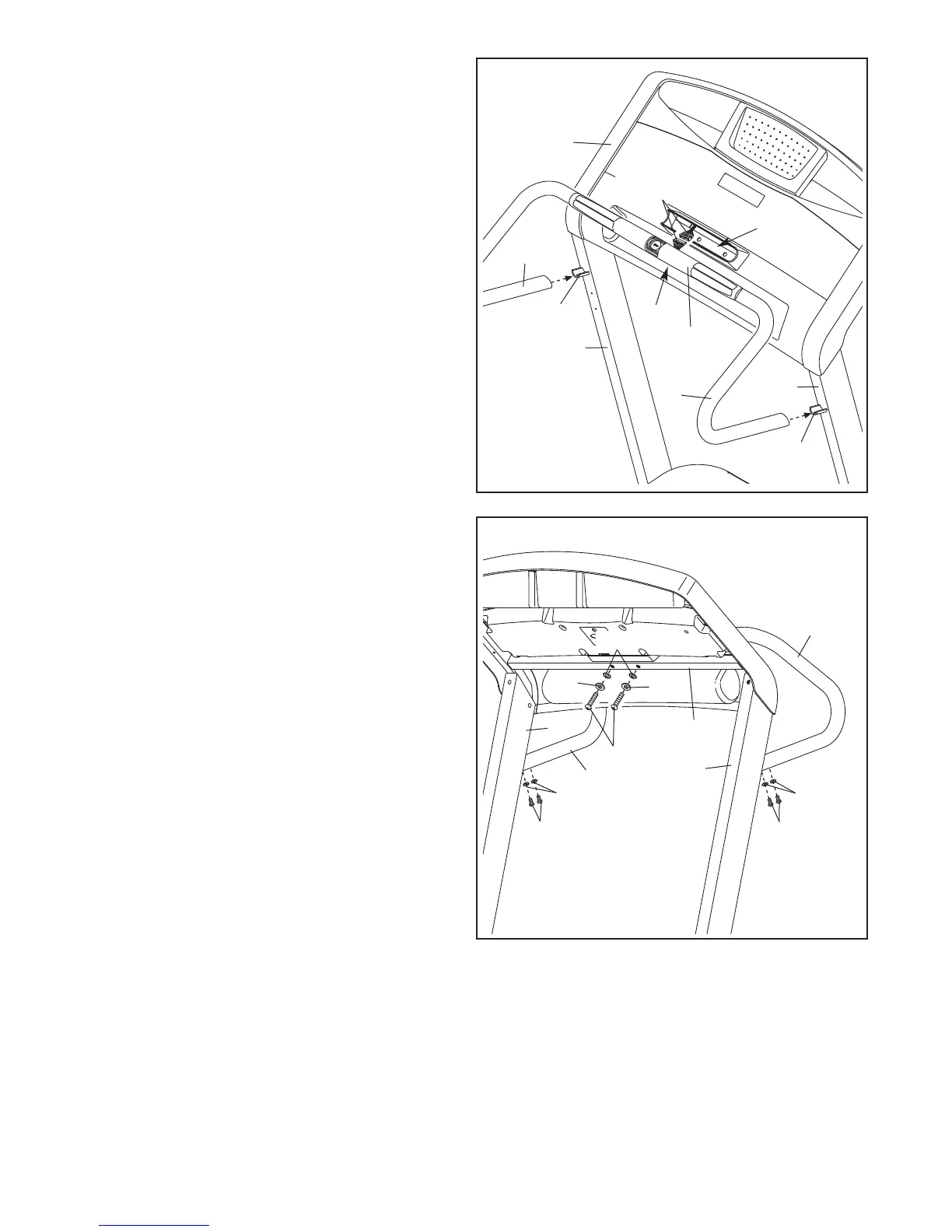

11. Hold the handrail assembly near the console as-
sembly. Connect the wire harness extending
f
rom the console assembly to the wire harness
extending from the handrail assembly. See the
inset drawing in step 7. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
N
ECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Set the Handrail Bracket (70) into the slot on the
console assembly as you slide the ends of the
Handrails (69, 71) onto the brackets on the
Uprights (77, 78). Be careful not to pinch any
wires.
69
70
77
78
Slot
Bracket
Console
Assembly
Handrail
Assembly
Bracket
11
12. Start two 1/4" x 1 1/2" Bolts (3) with two 1/4"
Washers (31) and two 1/4" Star Washers (11)
into the Console Frame (92) and Handrail
Bracket (not shown). Do not fully tighten the
Bolts yet.
Start four 1/4" x 1/2" Screws (6) with four 1/4"
Star Washers (11) into the lower ends of the
Handrails (69, 71).
Press the lower end of the Handrails (69, 71)
against the Uprights (77, 78) as you tighten the
four 1/4" x 1/2" Screws (6). Then, tighten the
1/4" x 1 1/2" Bolts (3).
6
3
69
71
78
77
92
11
12
71
6
11
Wire
H
arnesses
11
31
31
To Next Page
