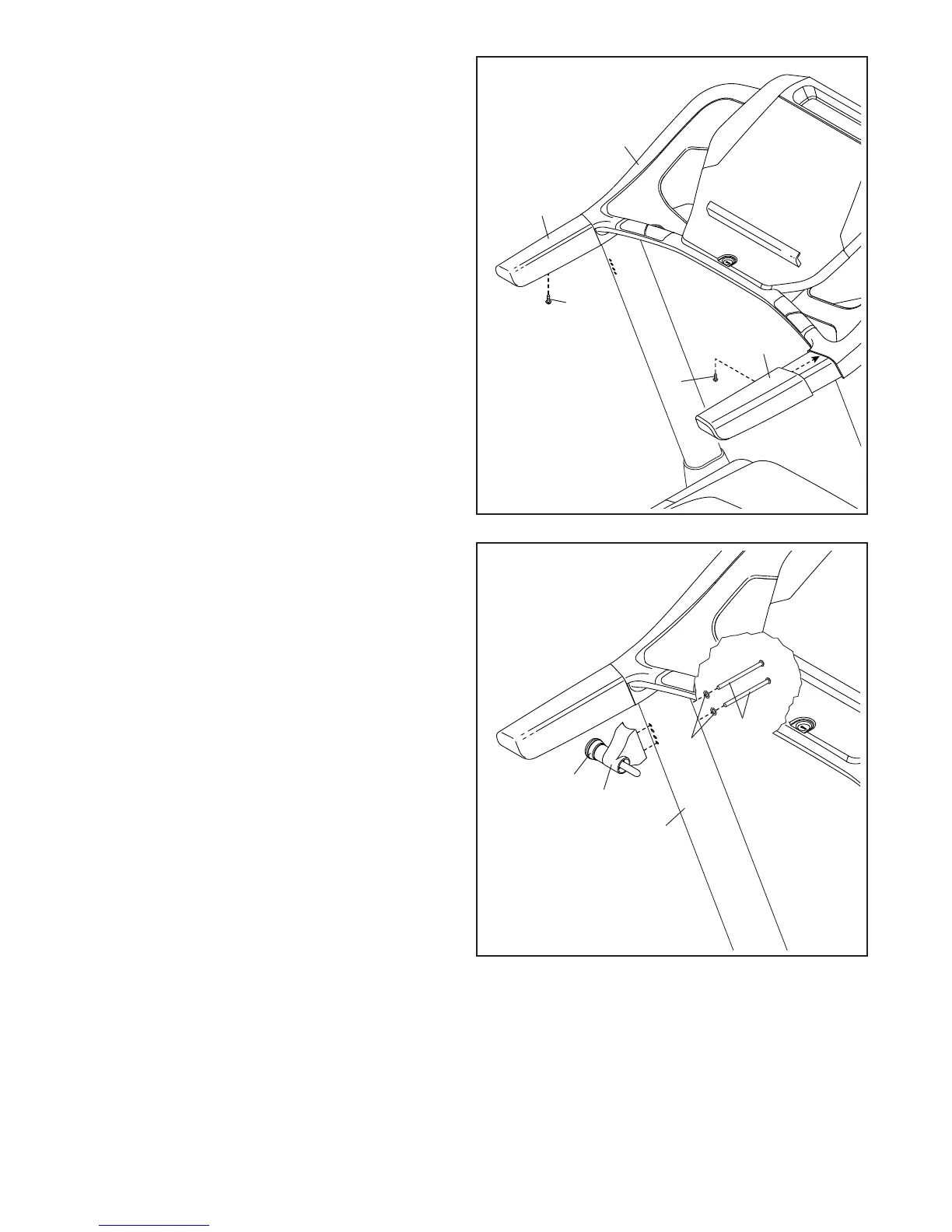

13. Orient the Latch Housing (62) as shown. Attach
the Latch Housing to the Left Upright (89) with
two 1/4" x 4 1/2" Screws (6) and two 1/4" Star
Washers (26) ; start both Screws, and then
tighten them.
62
89
Knob
6
26
12. Identify the Left and Right Handrail Covers (87,
8).
Slide the Left Handrail Cover (87) up against the
console assembly and tighten a #8 x 3/4" Screw
(4) into the bottom of the Left Handrail Cover. Be
careful not to overtighten the Screw.
Attach the Right Handrail Cover (8) in the
same way.
12
4
4
8
87
Console
Assembly
