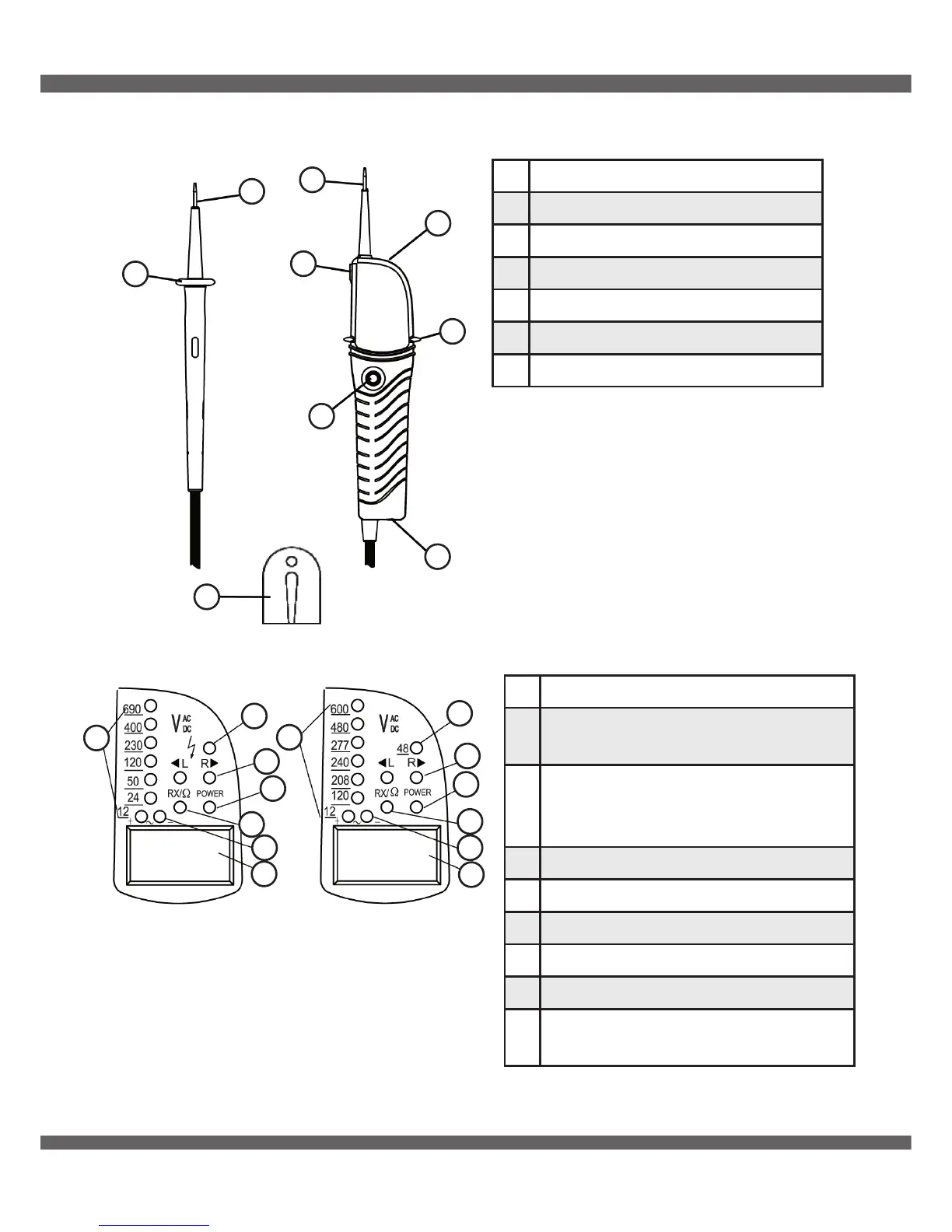

pro.point 8319683 - Parts Identification

For technical questions call: 1-800-665-8685
V 1.35
5
Europe America
# Description
1 12/24/50/120/230/400/690V
LEDs for European voltage indication
2 12/48/120/208/240/277/
480/600V LEDs for American
Voltage indication
3 L/R LEDs for phase rotation test
4 Power LED
5 Polarity indication LEDs for voltage
6 LCD (only on model SS-7339)
7 Continuity test / Live circuit LED
8 High voltage indication ≥100V,
LED will light up
# Description
1 L1 probe
2 L2 probe + (instrument probe)
3 Barrier
4 Pen light
5 Pen light switch
6 Battery case
