For technical questions call: 1-800-665-8685
8319683 / 8319709
V 1.35
7

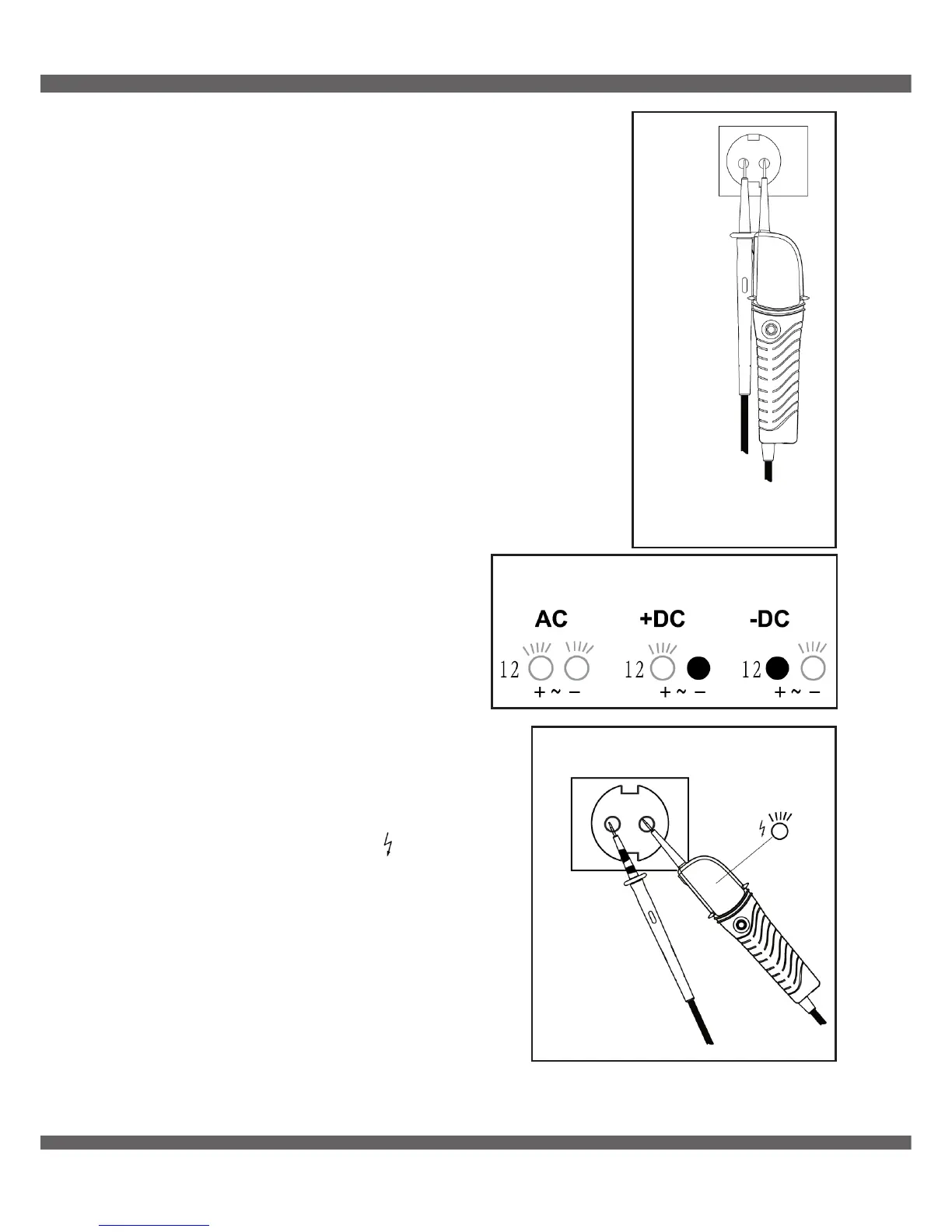

VOLTAGE TEST (DOUBLE POLE TEST)
1. Connect both probes to the object under test.
2. Voltage is indicated by LEDs and on the LCD
(model 7339).
3. To see how the voltage polarity is indicated
see Fig 3.
Note :
When the L2 probe + is the positive
(negative) potential, the Polarity Indication
LED indicates "+DC" ("-DC").
Tip:
With the L1 probe on the probe clip, you can change
the spacing between the probes using only one hand.
Live circuit LED lights up:
≥7V
Fig. 2
Fig. 3
Fig. 4
HIGH VOLTAGE INDICATION
1. Grasp the instrument firmly and
connect both probes to the object
under test.
2. The live circuit LED ( ) lights up
when a voltage of approx. 100V
AC or more exists in the object
under test (Pol≥100V AC).
To Next Page
