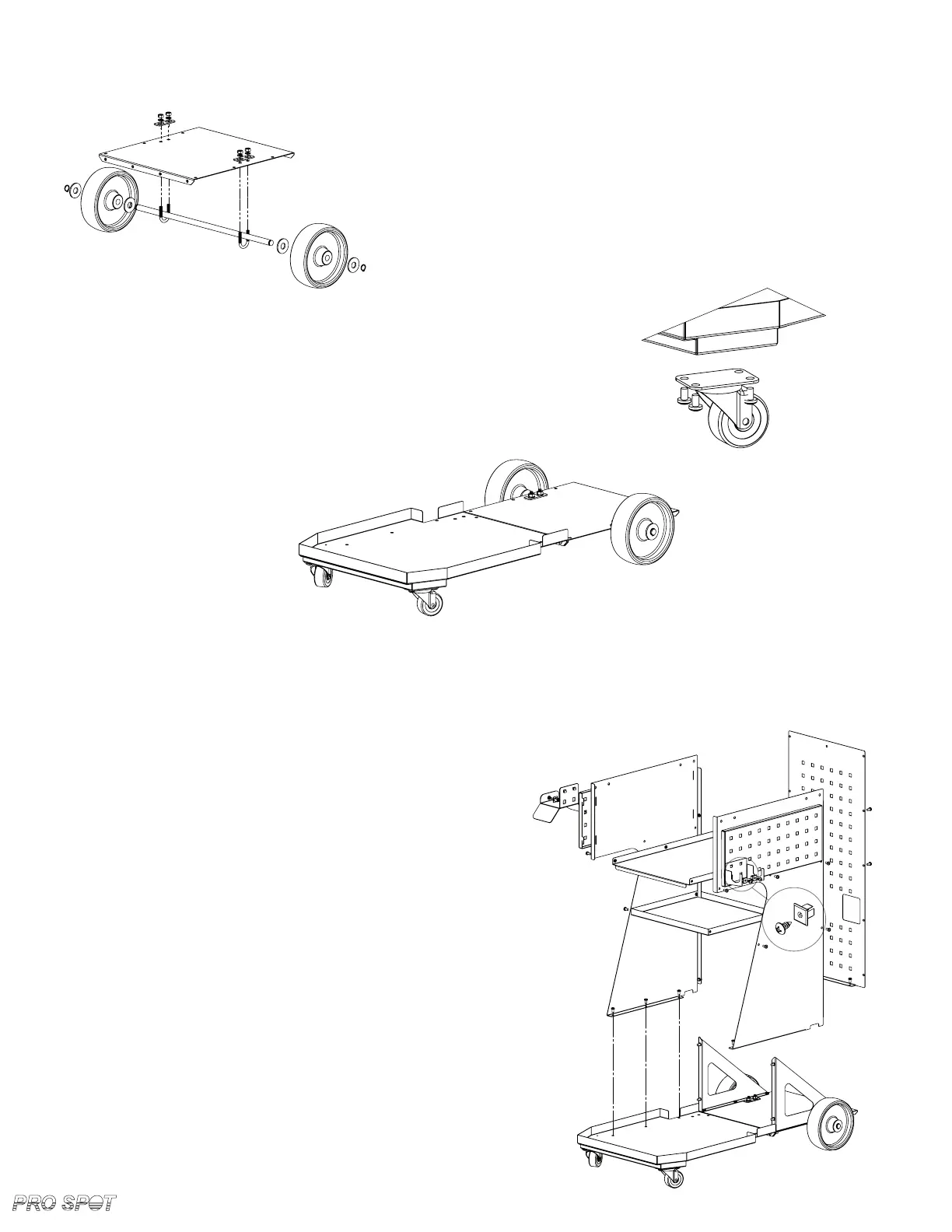

STEP 1: BASE ASSEMBLY
STEP 1 COMPLETE.
STEP 1A: ATTACH WHEELS TO AXLE WITH 1/2” FLAT
WASHERS AND 1/2” EXTERNAL SNAP RING.
STEP 1B: FASTEN AXLE TO TANK TROLLEY USING UBOLTS, PLATES,
1/4” LOCK WASHERS, AND 1/4-20 HEX NUTS. TIGHTEN
FIRMLY BUT DO NOT OVER TIGHTEN
STEP 1C: ATTACH SWIVEL CASTORS TO FRONT HALF OF BASE
WITH M6 X 10 PHMS.
STEP 1D: ATTACH TANK TROLLEY TO BASE WITH M5 X 10 PHMS.
STEP 2: CHASSIS ASSEMBLY
STEP 2A: ATTACH SIDE PANELS TO BOTTOM TRAY WITH
M5 X 10 PHMS.
STEP 2B: ATTACH BACK PANEL TO BOTTOM TRAY AND
SIDE PANELS WITH M5 X 10 PHMS.
STEP 2C: ATTACH SHELVES AND BOTTLE BRACES WITH
M5 X 10 PHMS.
STEP 2D: SNAP IN TOOL PANELS.
STEP 2E: SECURE HOOKS TO TOOL PANELS WITH
#12 X 1/2 PHSMS AND BLACK PLASTIC LICENSE
PLATE NUTS.
