ENGLISH
27
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
P. CONT
ANT CONT
MUTE
Installation/Connection

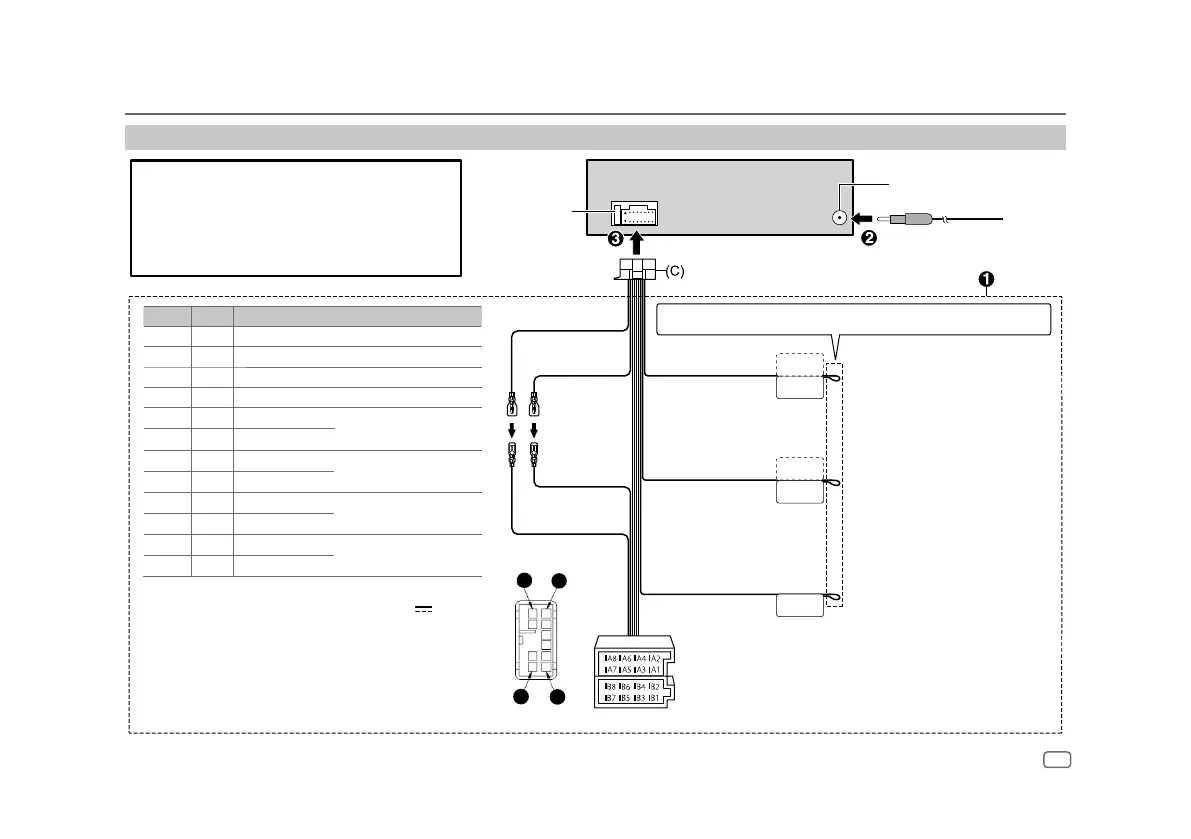

Wiring connection
ISO Pin Color and F unction
A4 Red : Ignition (ACC)
A5 Blue/White*1 : Power control
A7 Yellow : Battery
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
B4
Gray/black
[
B5
White ]
: Front speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
B8
Green/black
[
Fuse (10 A)
Antenna terminal
Blue/White*2
(Power control wire/
Antenna control wire)
Light blue/yellow
(Steering remote control
wire)
To the power control terminal when using
the optional power amplifier or to the
antenna control terminal in the vehicle
Brown
(Mute control wire)
(Not used)
If no connections are made, do not let the wire come out from the tab.
To the steering wheel remote control
adapter
ISO connectors
NOTE: Total output for Blue/White wire (*1) + (*2) is 12 V
350 mA
Yellow (A7)
Red (Ignition wire)
Red (A4)
Yellow (Battery wire)
Hino Pin
3
8
4
7
N/A
1
5
2
6
N/A
N/A
N/A
The PP107235 radio will include a wiring harness adapter for
standard ISO connection.
The PP107237 radio will include a wiring harness adapter for
connection to Hino trucks.
HINO connectors
10
1
5
4
