ProBoat Springjet PRB08045 - Drivetrain Lubrication

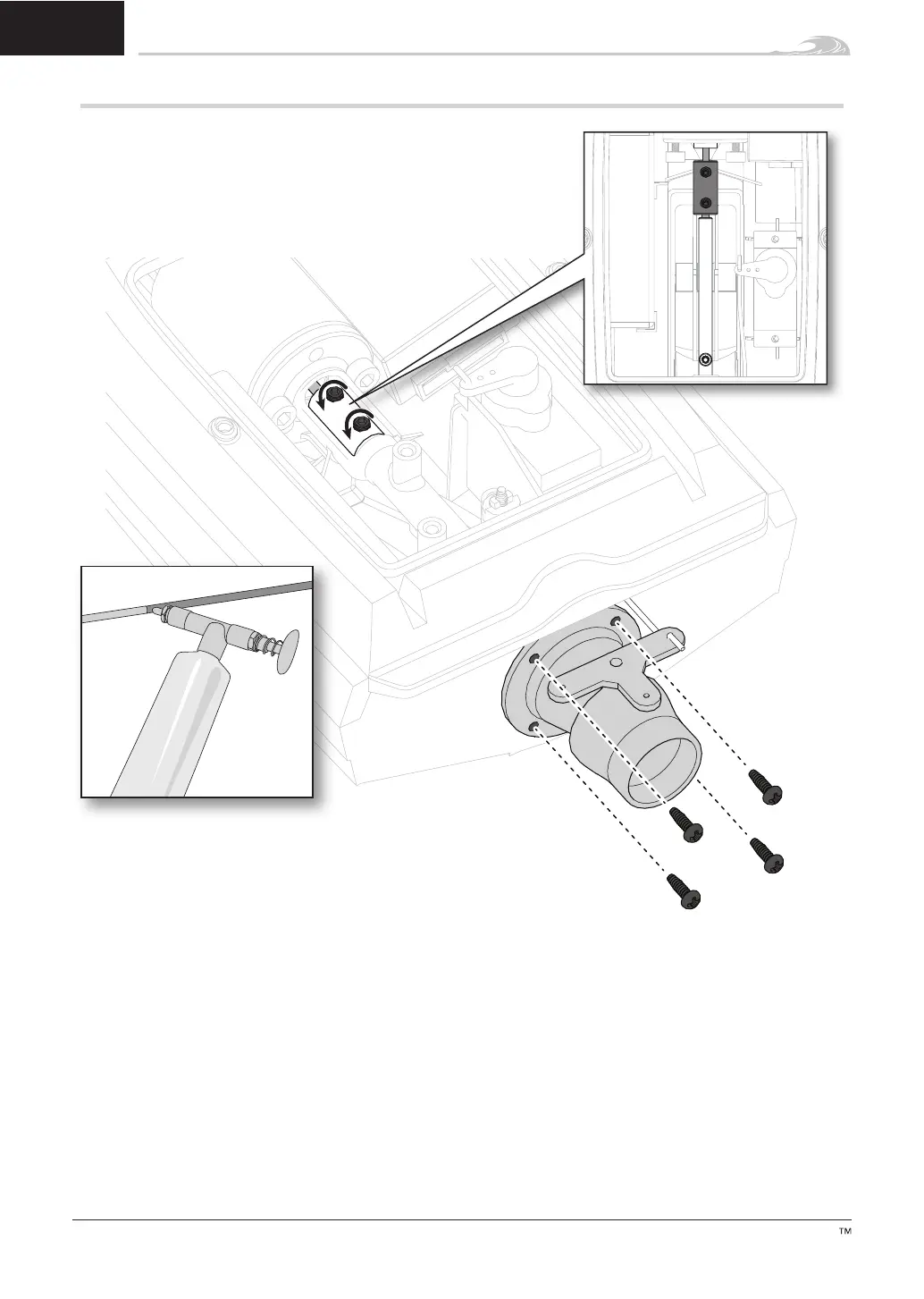

1. Use a #1 Phillips screwdriver to remove the 4 screws from the jet
pump nozzle.
2. Use a 1.5mm hex wrench to loosen the set screws on the motor
shaft coupler.
3. Pull the drive shaft out of the jet pump
4. Lubricate the drive shaft with marine grease (DYNM4200).
5. Reinstall the parts in reverse order from their removal.
Drivetrain Lubrication
10
EN
Sprintjet
screws
from
the
jet
e
ws on
the
motor
D
YNM4200
).
e
moval
.
