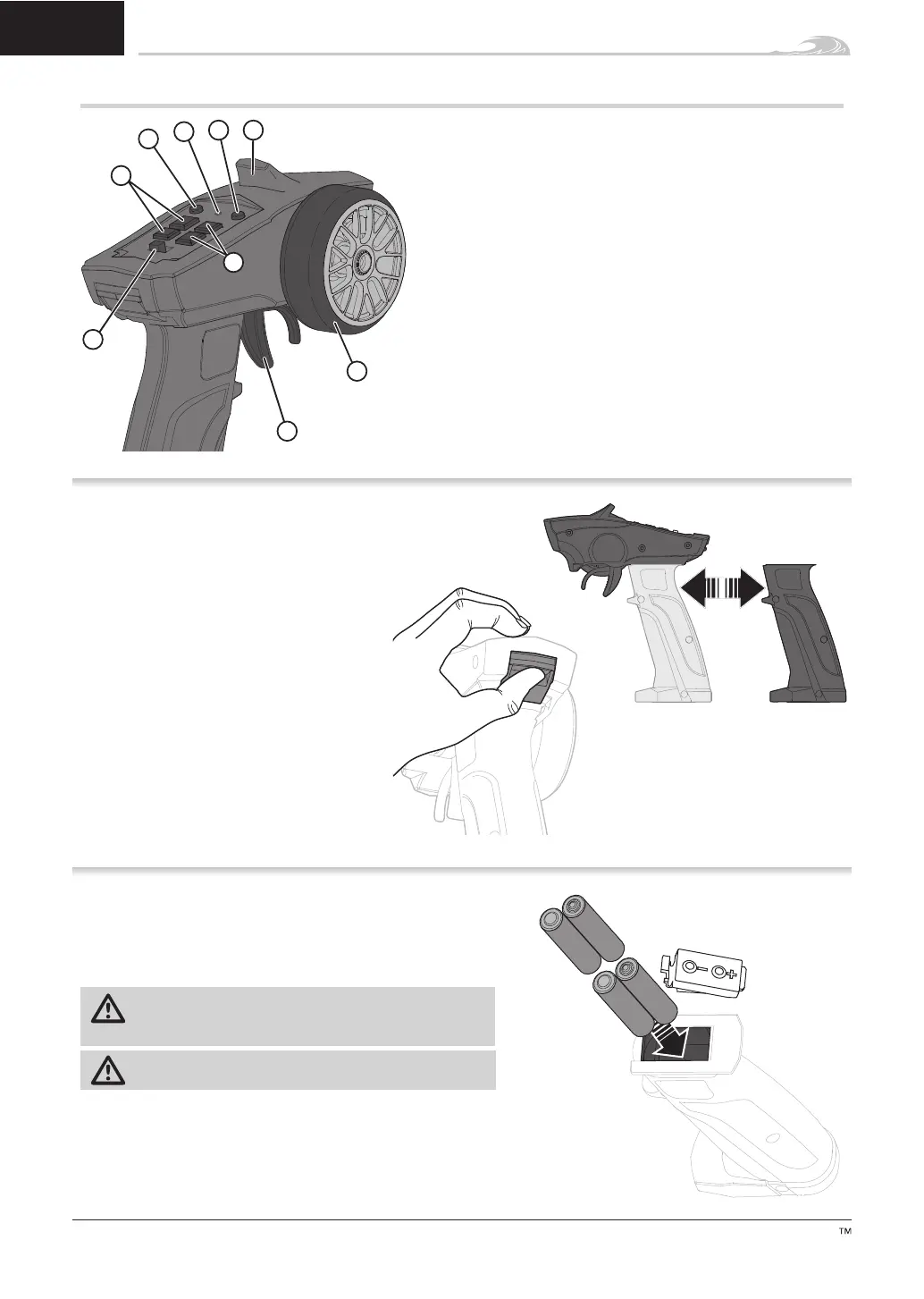

Assembling and Disassembling Transmitter Handle
Assemble
1. On the top transmitter portion, press the rear button.
2. Slide the transmitter handle into the track.
Disassemble
1. On the top transmitter portion, press the rear button.
2. Slide the transmitter handle out of the track.
6
EN
Sprintjet
Transmitter
Installing Transmitter Batteries
CAUTION: If using rechargeable batteries, charge only rechargeable
batteries. Charging non-rechargeable batteries may cause the batteries
to burst, resulting in injury to persons and/or damage to property.
This transmitter requires 4 AAA batteries.
1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover.
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to national regulations.
1. Steering Wheel Controls direction (left/right) of the model
2. Throttle Trigger Controls speed and direction (forward/brake/reverse) of the
model
3. ON/OFF Switch Turns the power ON/OFF
4. TH DR/TH Trim Adjusts the throttle trim end points
5. ST DR/ST Trim Adjusts the steering trim end points
6. CH 3
7. Indicator Lights
• Solid red light—Indicates radio connectivity and adequate battery power
• Flashing blue light—Indicates the battery voltage is critically low.
Replace batteries
8. REV Reverses the function of the steering when the wheel is turned left or right
9. Antenna Transmits the signal to the model
1
2
3
8
4
5
6
7
9
