Probox d8b - 4 Hardware Installation; 4.3 Audio Connections for Monitor Control

Probox user manual
Page 9 of 63

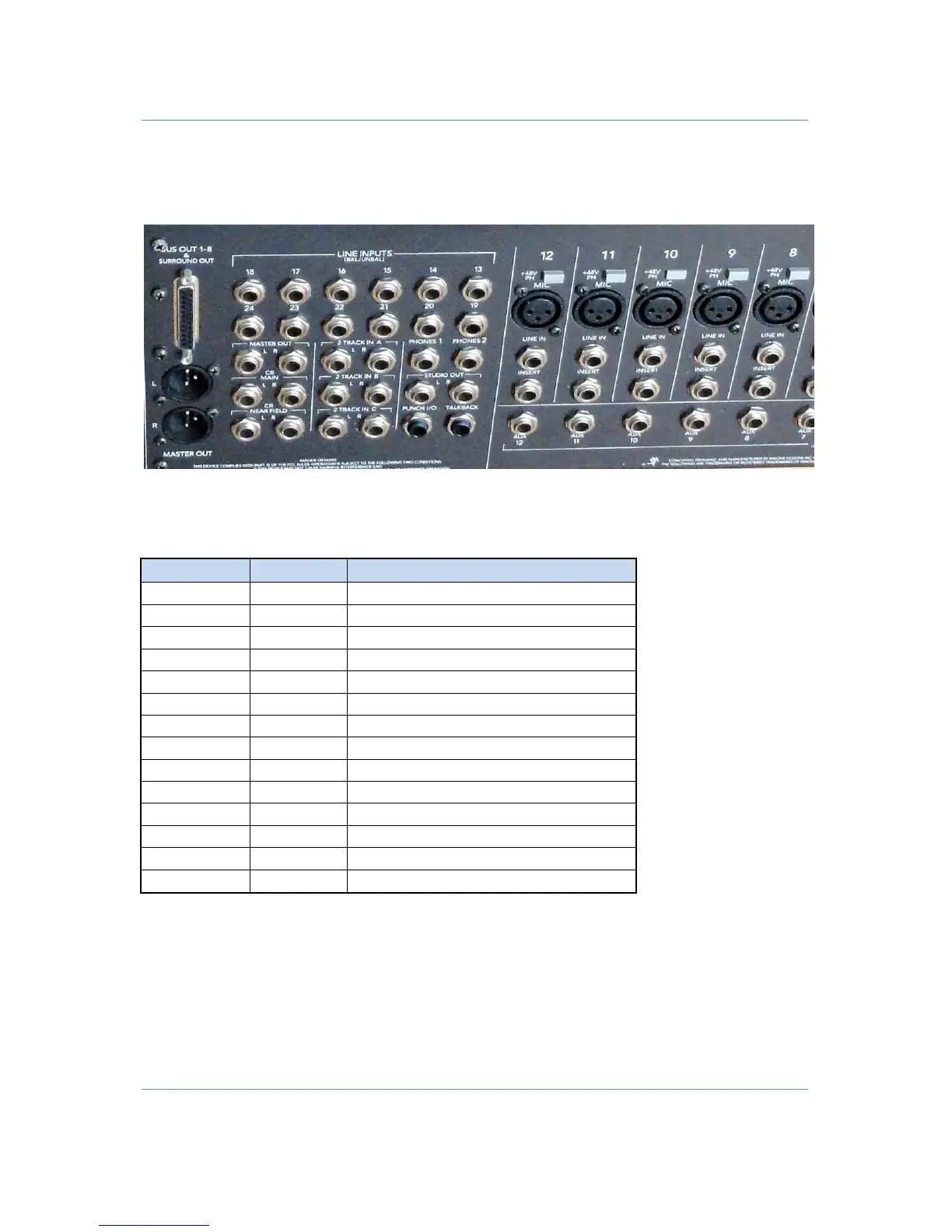

4.3 Connecting the audio to the d8b (Monitor controller)
The following Audio connectors can be used with the ProBox:
Connector type Function
2 TRACK IN A INPUT Input Source A
2 TRACK IN B INPUT Input Source B
2 TRACK IN C INPUT Input Source C
AUX 9 INPUT Input for CUE AUX (note 120 Ohm Load !)
AUX 10 INPUT Input for CUE AUX (note 120 Ohm Load !)
AUX 11 INPUT Input for CUE AUX (note 120 Ohm Load !)
AUX 12 INPUT Input for CUE AUX (note 120 Ohm Load !)
TALKBACK INPUT Footswitch Talkback
MIC1-12 INPUT Can be accessed analogue via Insert Out
CR MAIN OUTPUT Main Speakers
CR NEARFIELD OUTPUT Nearfield Speakers
STUDIO OUT OUTPUT Studio Output
PHONES 1 OUTPUT Phones 1 CUE 1 Output
PHONES2 OUTPUT Phones 2 CUE 2 Output
