16
6 SINGLE-ENDED INPUTS
Accepts signals from preamp/controllers with single-ended outputs via high
quality RCA connectors.
If you are planning to use single-ended connections between your pream-
plifier and any particular channel of the amplifier, select the single-ended
input by sliding the input select switch (see Item 5) toward the RCA input.
Then connect the single-ended outputs of your preamplifier to the corre-
sponding single-ended inputs on the amplifier, using high quality cable
such as CZ Gel-2.
7 SPEAKER OUTPUTS & BINDING POSTS
This Proceed amplifier is equipped with gold-plated, high-current binding
posts for output termination to a loudspeaker system. To take full advantage
of the amplifier’s sonic quality, we recommend using high-quality speaker
cable; see your Proceed dealer.
Caution! NEVER connect the amplifier output terminals to any device
other than a loudspeaker.
NEVER short-circuit the amplifier’s output terminals.

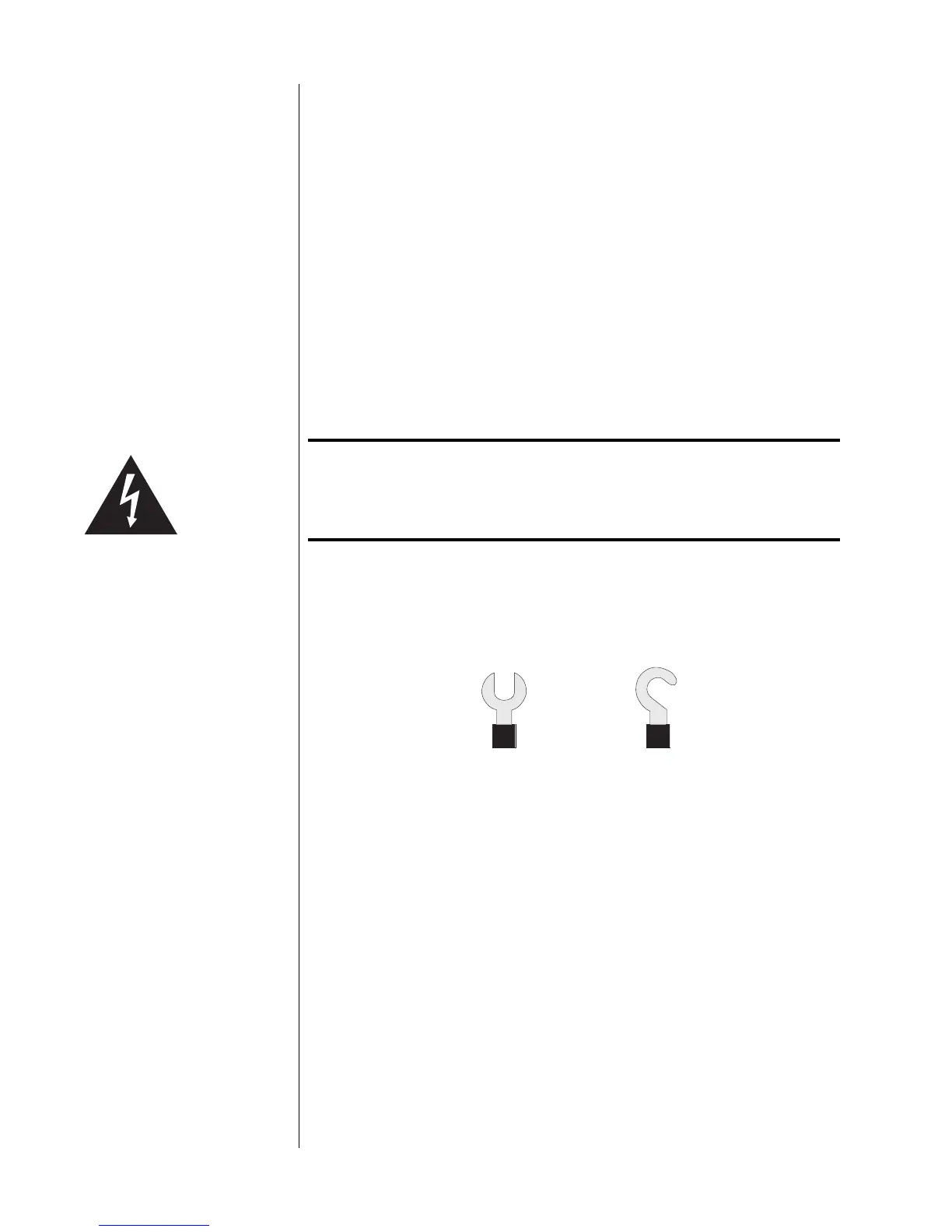

There are two recommended methods for connecting speaker cables to the
amplifier. A high-quality spade lug or hook lug, soldered to the cable (or
crimped with extremely high pressure), is best.
Spade lug Hook lug
For each channel in turn, connect the left-channel – (negative or black) out-
put post of the amplifier to the – (negative or black) input terminal of the
appropriate loudspeaker.
Then connect the + (positive or red) output post of the amplifier to the +
(positive or red) input terminal of the appropriate loudspeaker.
Repeat this procedure for the other channels.
