Procom FBD28T - Final Connections and Log Installation; Heater Gas Connection Testing

17
INSTALLING LOGS
WARNING: Failure to position the parts
in accordance with these diagrams or failure
to use only parts specically approved with this heater may
result in property damage or personal injury.
CAUTION: After installation, and
periodically thereafter, check to ensure that no ame comes
in contact with any log. With the heater set to high, check to
see if ames
contact any log. If so, reposition logs
according to the log installation instructions
in this manual. Flames contacting logs will
create soot.

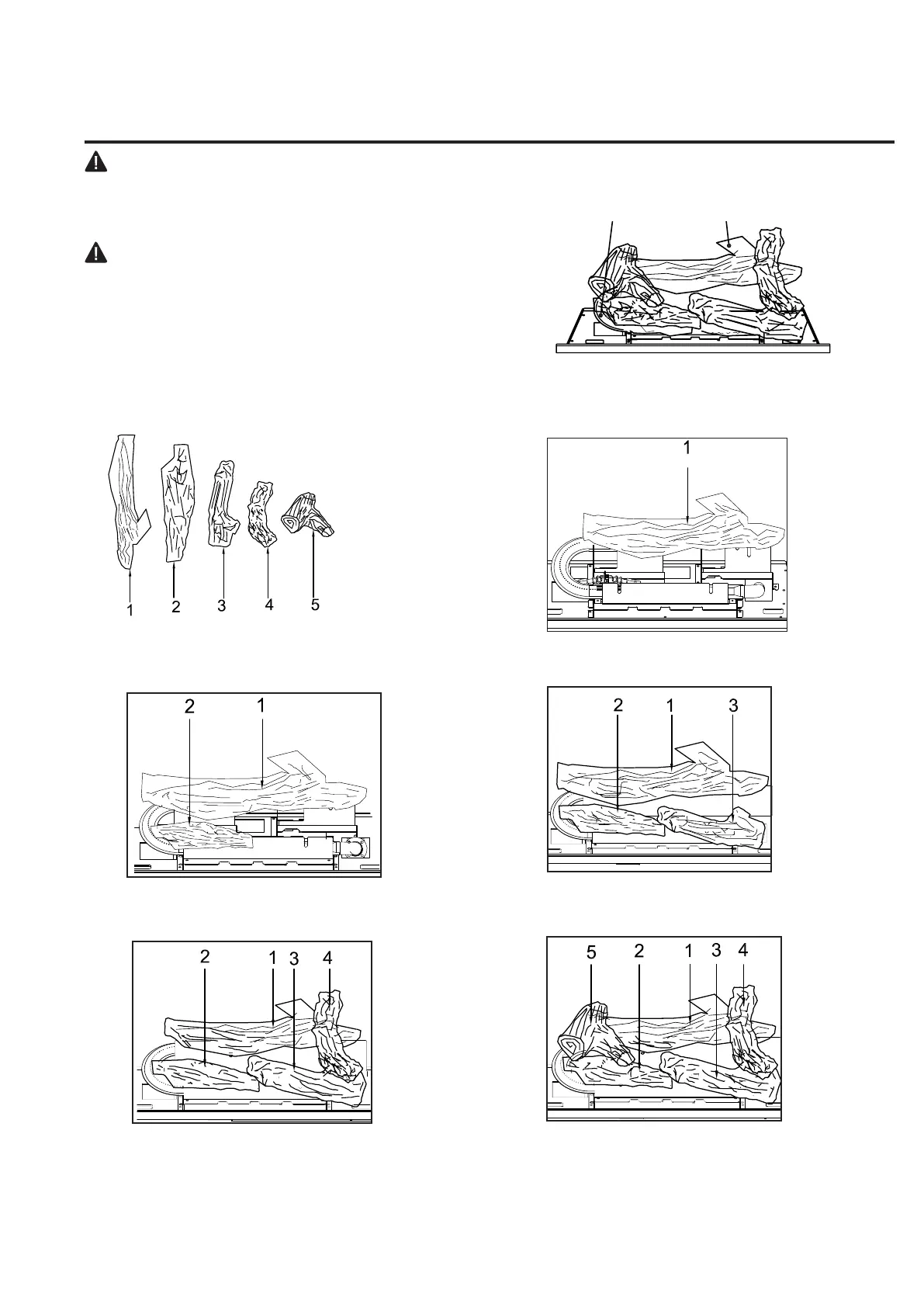

Fig. 18 - Installing Log Set
IMPORTANT: Make sure log does not cover any burner ports
(see Fig. 18). It is very important to install the logs exactly as
instructed. Do not modify logs. Use only logs supplied with
heater.
STEP 1: Install log 1 onto the two slots in middle plate
All logs
STEP 2: Install log 2 onto the two slots in left plate
STEP 3: Install log 3 onto the two slots in right plate
STEP 4: Install the recessed hole on the bottom of log 4
onto the pin on log 1 and place on log 3.
STEP 5: Install the recessed hole on the bottom of log 5
onto the pin on log 1 and place on log 2.
Burner Ports
Log Set
