15160177-01B

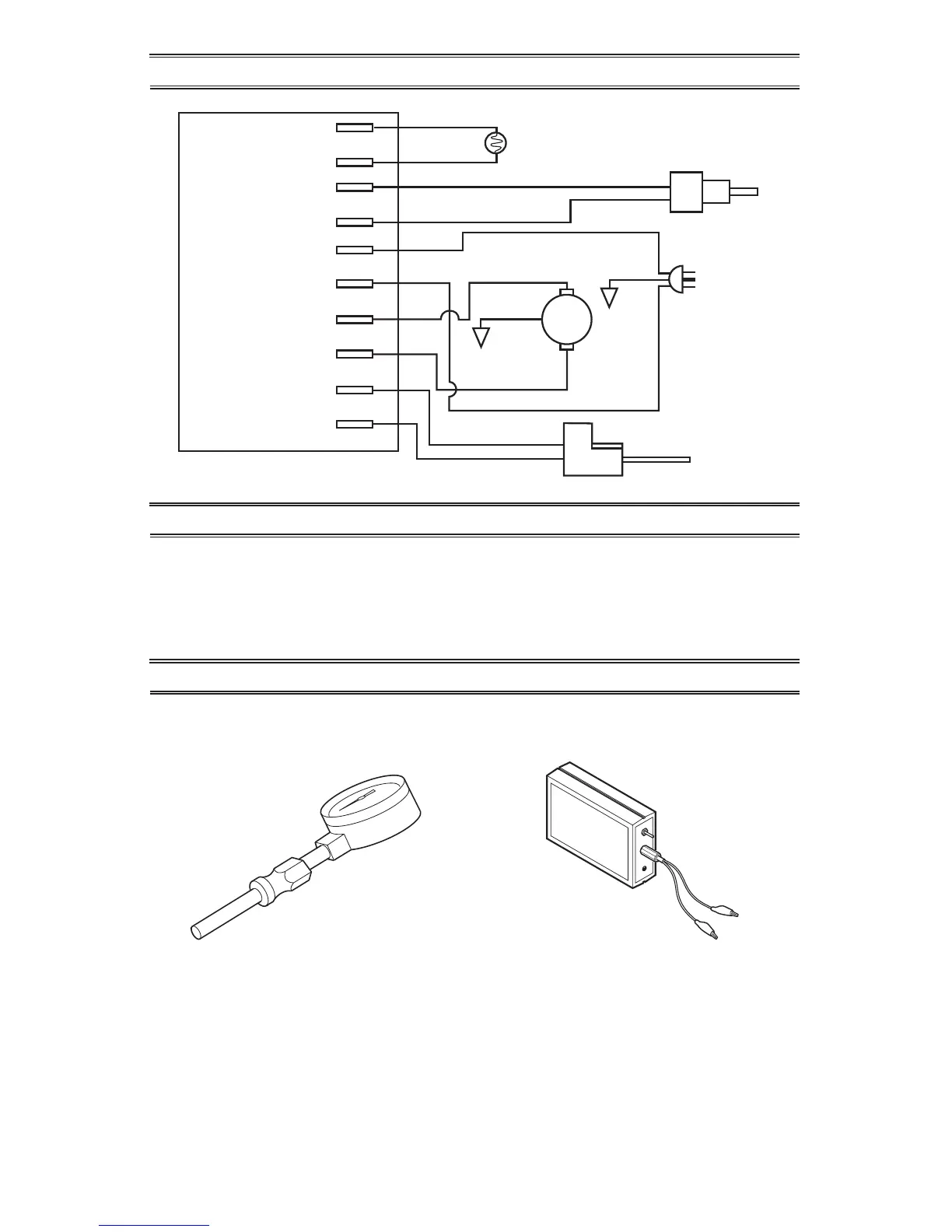

WIRING DIAGRAM
ST002-01
AIR GAUGE KIT
Special tool to check pump pressure.
0-15 PSI gauge. 3/8" NPT pipe thread.
ST001-01
IGNITION CONTROL ASSEMBLY/
PHOTOCELL TESTER
Special tool used to test the ignition control
assembly and photocell.
ACCESSORIES
Purchase these accessories from your local dealer. If they can not supply these accessories,
contact ProCom Heating, Inc. at 1-866-573-0674 for information. You can also write to the
address listed on the back page of this manual.
TECHNICAL SERVICE
You may have further questions about installation, operation, or troubleshooting. If so, contact
ProCom Heating, Inc. at 1-866-573-0674. When calling, please have your model and serial
numbers of your heater ready.
You can also visit ProCom Heating, Inc.’s web site at www.usaprocom.com.
Photocell
Photocell
Blue
Blue
White
White
White
White
Power Plug
120V/60Hz
Thermostat
Control
Green
Green
Red
Black
Black
Yellow/White
Yellow/White
Photocell
Heater Control Assembly
Temp.
Temp.
Ignitor
Ignitor
Ignitor
Motor Return
AC Neutral (N)
120V (L1)
Motor Main
Motor
To Next Page
