3302F Mainframe Operation Manual 15
3.3.1 The 4 buttons marked exit, test, enter and edit are used to set an auto-sequence.
3.3.2 The numbered buttons 1~10 are the memory states (locations) for storing or
Recalling a load set up. They are also used to select a previously saved
Auto-sequence when in test mode

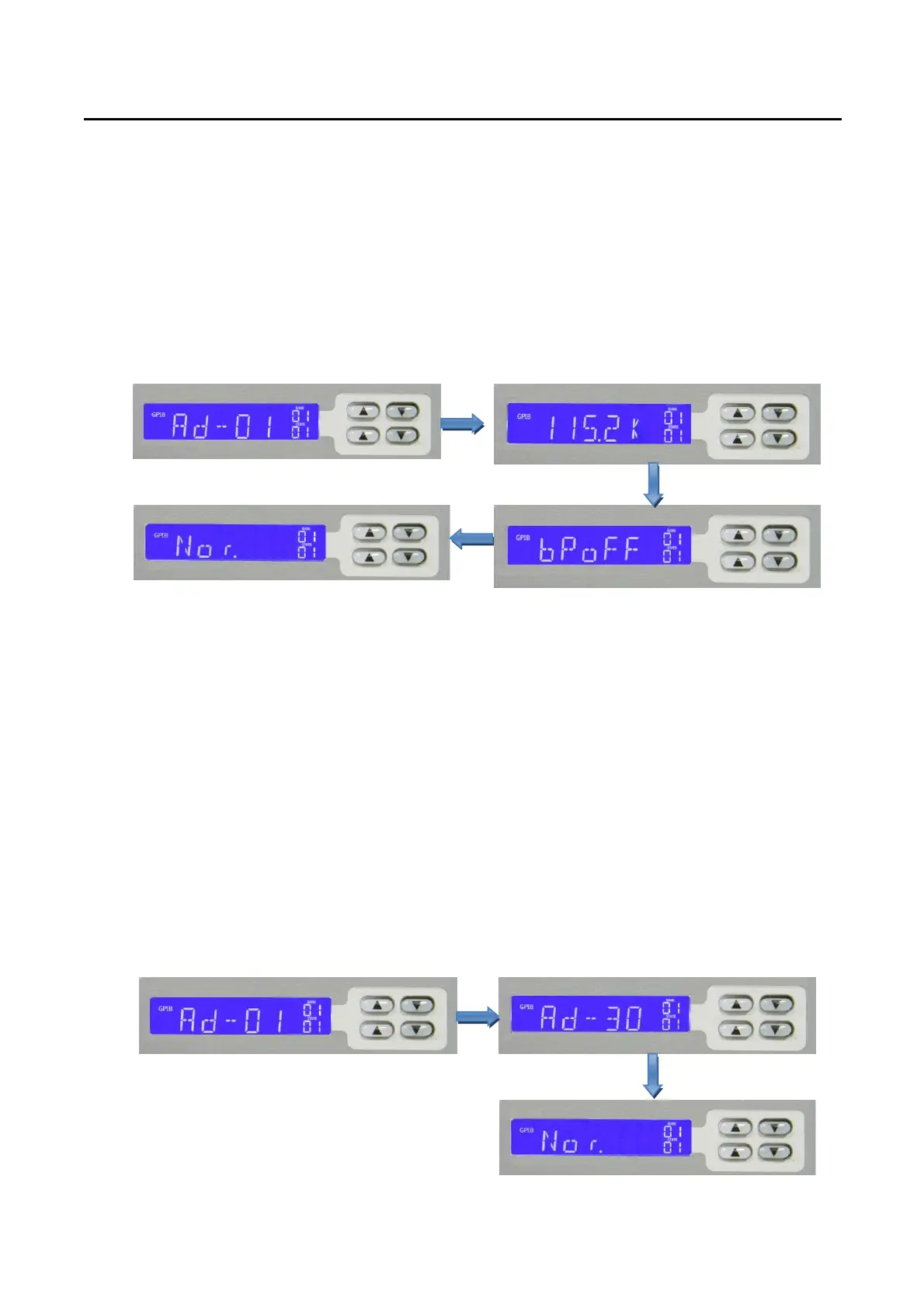

3.3.3 Pressing the system button once allows the GPIB address to be changed by using
The arrow keys. Pressing the system button again allows the RS232 baud rate to
Be adjusted. With the third press of the system button the buzzer can be switched
On/off. Another press puts the LCD back to Normal state as shown below.
3.3.4 The local button is used to exit the remote mode and bring the unit back to front
Panel control.
3.3.5 The store button is used to save the load configuration
3.3.6 The wake up button is used to recall the load configuration at mains power on.
3.4 Operating Instructions
3.4.1. Setting System Parameters
The system button allows the setting of:
a. GPIB address
b. RS232 BAUD RATE
c. Buzzer ON/OFF
3.4.1.1. To set the GPIB address you must press the system key once. The LCD will
Display the current address. The arrow keys are used to change the address.
Once the required address is reached press enter or store button to save the
New address. The exit key can be pressed to return to the normal screen.
