2. The Proliner (hardware)
Touchscreen
Carrying
handle
USB port
Data port (Ethernet)
Power connection
Ventilation grid
Battery
connection
Rotatable measuring head
Measuring pen
Measuring wire
Measuring head
unlock button
Storage drawer button
Power button
Foldable measuring unit
Signal speaker

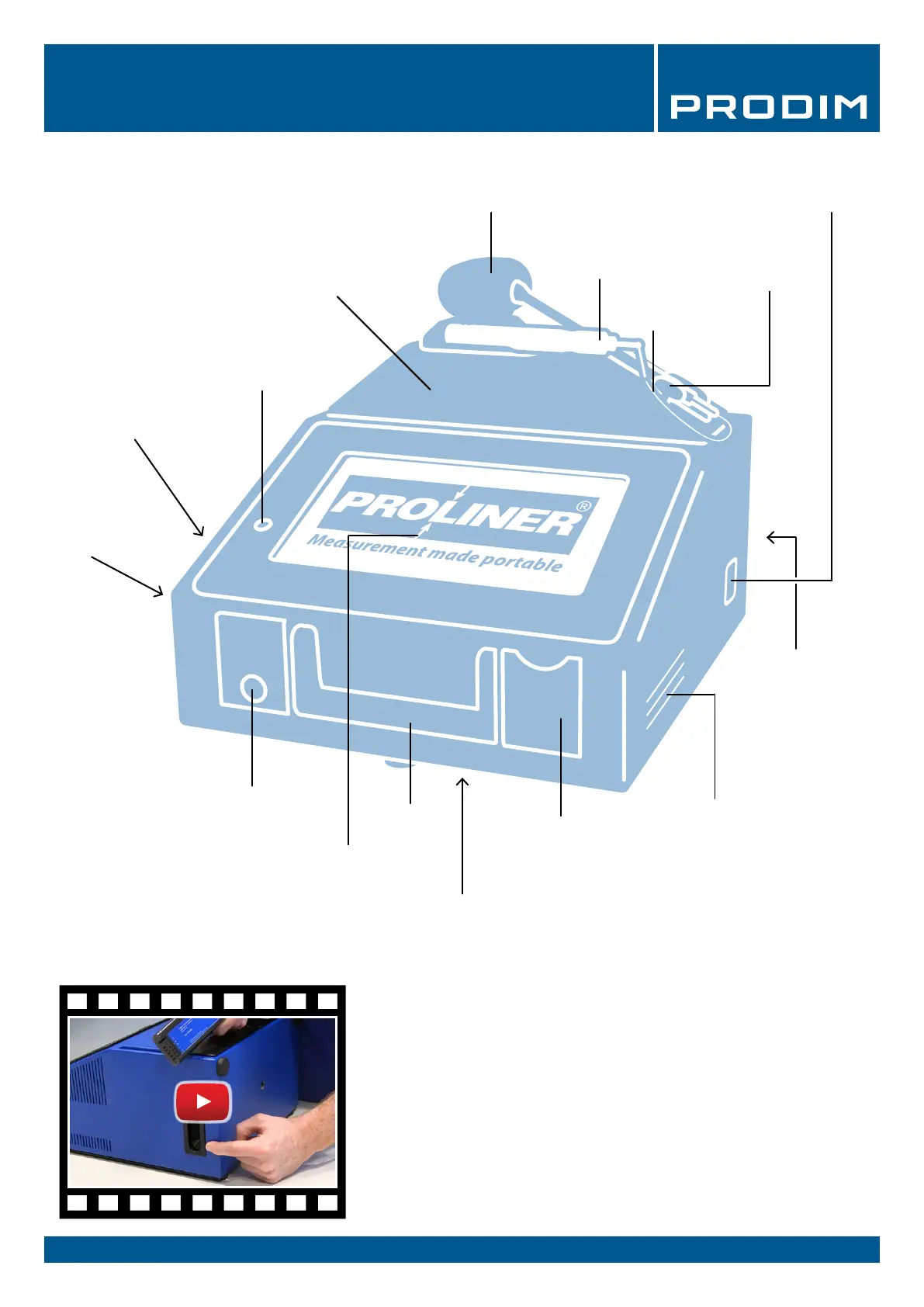

Proliner parts:
Storage drawer
Watch the video
Screw mount
(back side)
Screw mount
(bottom)
TIP: Mount the Proliner on a tripod for a better reach!
Screw mounts can be used to attach the Proliner on a tripod.
They are positioned at the bottom and back side of the Proliner.
