PROEL SW115A User Manual

12
ENG ITA

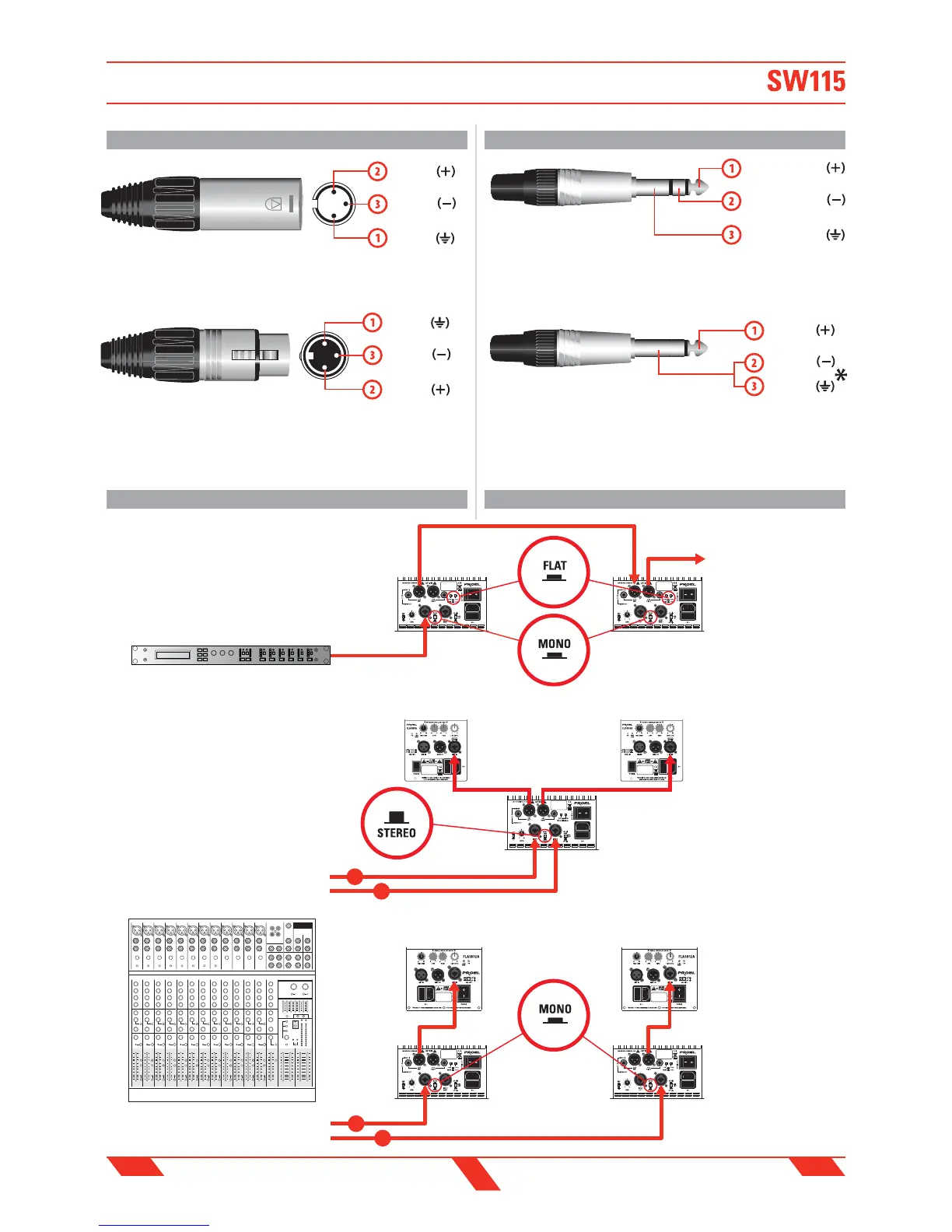

SW115A - CONNECTIONS AND EXAMPLES
SW115A - CONNESSIONI ED ESEMPI
SW115A - CONNECTIONS SW115A - CONNESSIONI
INPUT (ingresso)
Jack (bilanciato)
INPUT
Jack (balanced)
sleeve - ground
tip - hot
ring - cold
INPUT (ingresso)
XLR bilanciato maschio
INPUT
Balanced male XLR
ground
hot
cold
INPUT (ingresso)
Jack (sbilanciato)
INPUT
Jack (unbalanced)
ground
tip - hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
OUTPUT (uscita)
XLR bilanciato femmina
OUTPUT
Balanced female XLR
ground
hot
cold
SW115A - ESEMPI DI CONNESSIONE
SW115A - CONNECTION EXAMPLES
PROEL suggested
equipment:
Mseries mixer
Subwoofer output of
analog or digital
loudspeaker processor
LEFT
FLASH12A (sat) + SW115A (sub)
RIGHT
FLASH12A (sat) + SW115A (sub)
RIGHT
FLASH8A
LEFT
FLASH8A
basic stereo system
1x SW115SA
+
2x FLASH8A
350W + 230W x2
= 810W
standard stereo system
2x SW115A
+
2x FLASH12A
350W x2 + 250W x2
= 1200W
subwoofer reinforcement
L
R
L
R
L
