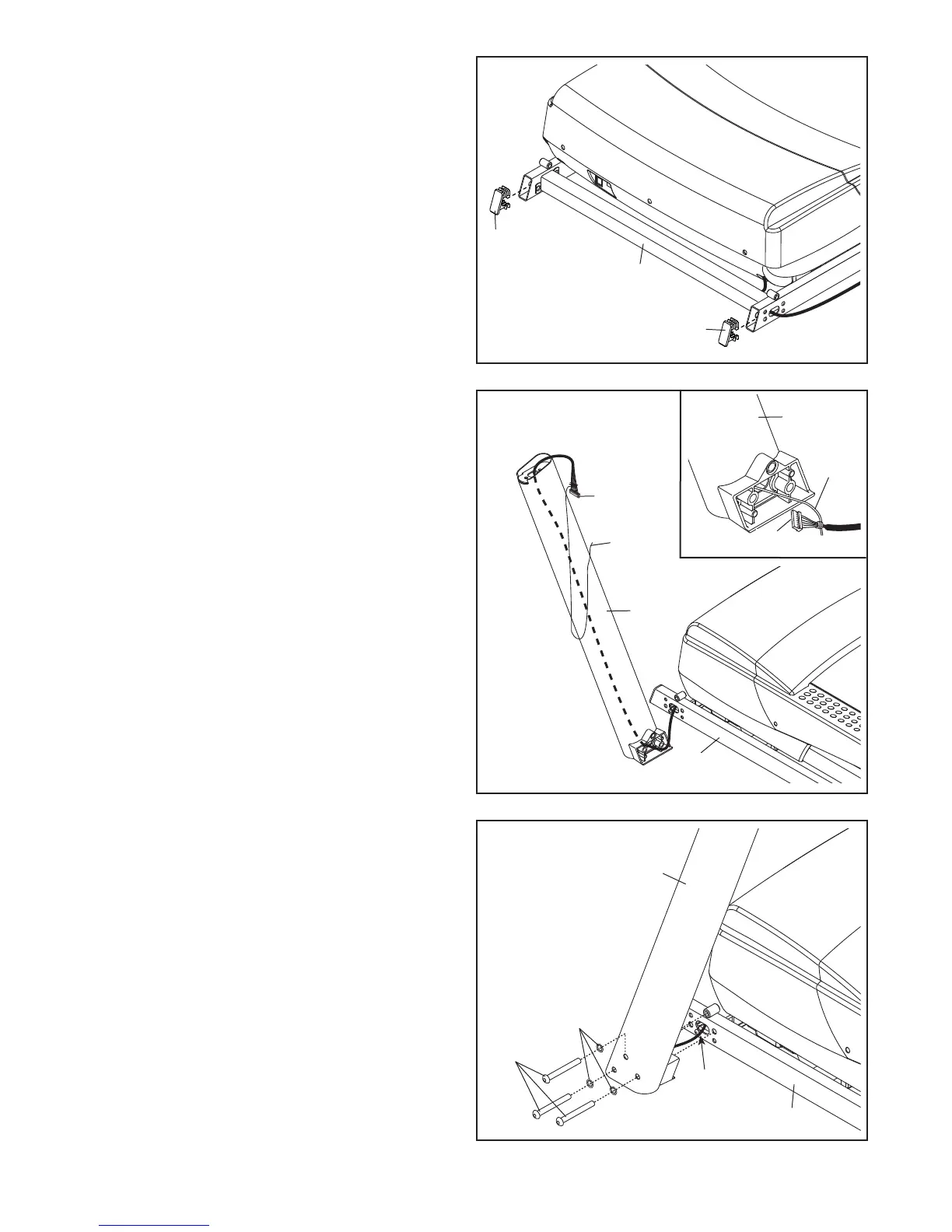

4. Localizzare il Montante Sinistro (84). Con l'aiuto
di un'altra persona reggere il Montante Sinistro
vicino alla Base (29).
Si veda il disegno nel riquadro. Fissare sal-
damente la fascetta cavo nel Montante Sinistro
(84) attorno all'estremità del Cavo Montante (91).
Quindi, inserire il Cavo Montante nell'estremità
inferiore del Montante Sinistro tirando l'estremità
opposta del cavo attraverso il Montante Sinistro.
4
91
84
84
Fascetta
Cavo
91
Fascetta
Cavo
29
5. Reggere il Montante Sinistro (84) a contatto
con la Base (29). Prestare attenzione a non
pizzicare i cavi. Avvitare parzialmente tre Viti
3/8" x 4" (3) con tre Rondelle a Stella 3/8" (10)
nel Montante Sinistro e nella Base; non serrare
completamente le Viti in questa fase.
84
5
10
3
29
Cavi
3. Inserire a pressione un Cappuccio Base (87) in
ogni lato della Base (29).
87
87
29
3
