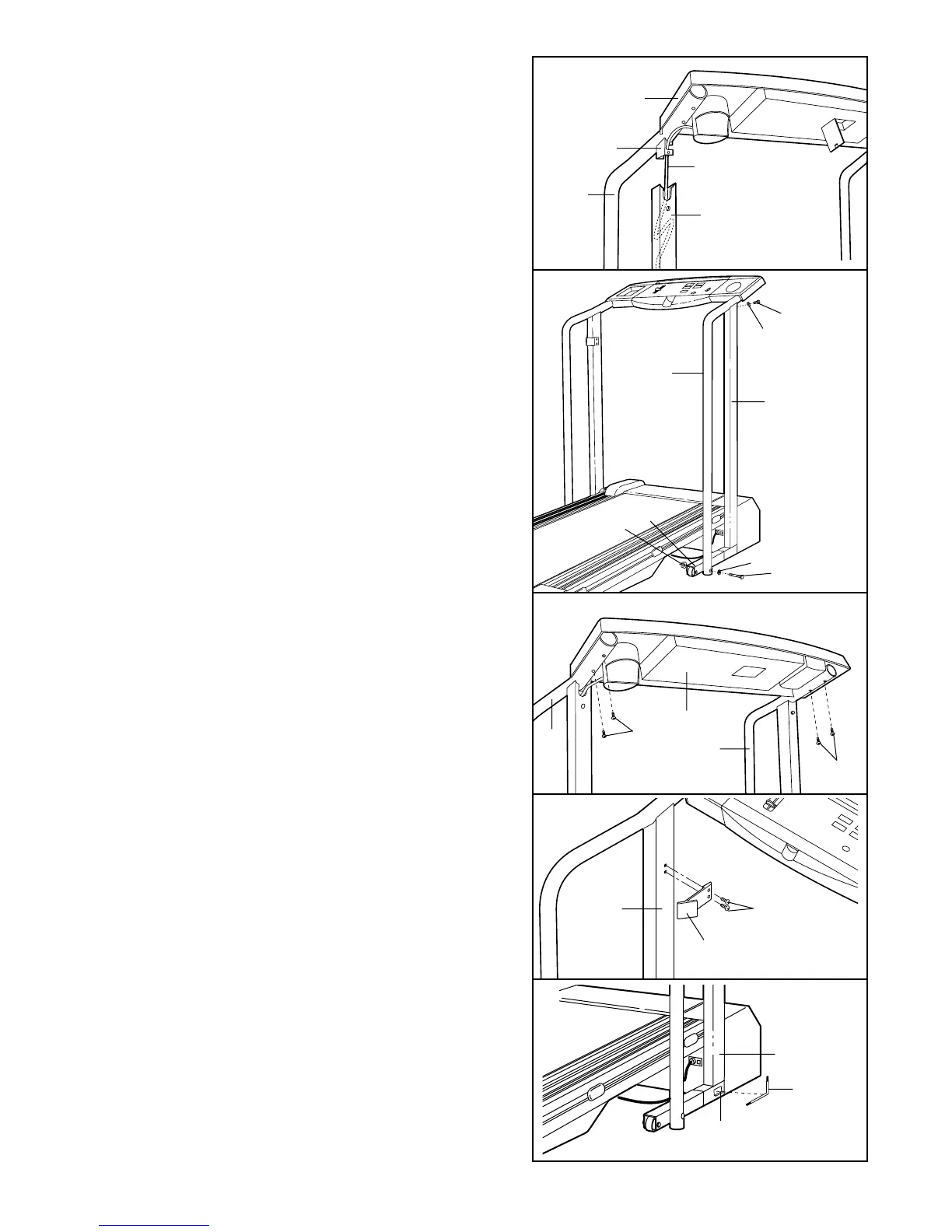

3. With the help of a second person, hold the Console Base
(6) and the Right Handrail (32) near the right Upright (14)
as shown. Insert the Wire Harness (26) down into the right
Upright; bend the Wire Harness, if necessary. Next, route
the Wire Harness through the bracket on the Right
Handrail and insert the bracket into the right Upright.
Make sure that the Wire Harness is not pinched.
4. Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the right Upright (14) and the Right Handrail (32). Do
not tighten the Handrail Bolt yet.
Attach the lower end of the Right Handrail (32) to the
Extension Leg (41) with a 3 1/2” Handrail Bolt (89), a 5/16”
Washer (61), and a Flange Nut (57).
5. Attach the Console Base (6) to the Left and Right
Handrails (2, 32) with four 3/4” Screws (59).
Tighten all parts used in this step and in steps 2 and
4.
6. Attach the Storage Latch (12) to the left Upright (14) with
two 3/4” Screws (59). Be careful not to overtighten the
Screws.
7. Remove the backing from the Adhesive Clip (74). Press
the Adhesive Clip onto the base of the Uprights (14) in
the indicated location. Press the Allen Wrench (73) into
the Adhesive Clip.
8. Make sure that all parts are tightened before you use
the treadmill. To protect the floor or carpet, place a mat
under the treadmill.
6
26
Bracket
32
14
3
6
89
61
15
16
14
32
57
41
4
59
6
59
2
32
5
59
12
14
6
73
74
14
7
To Next Page
