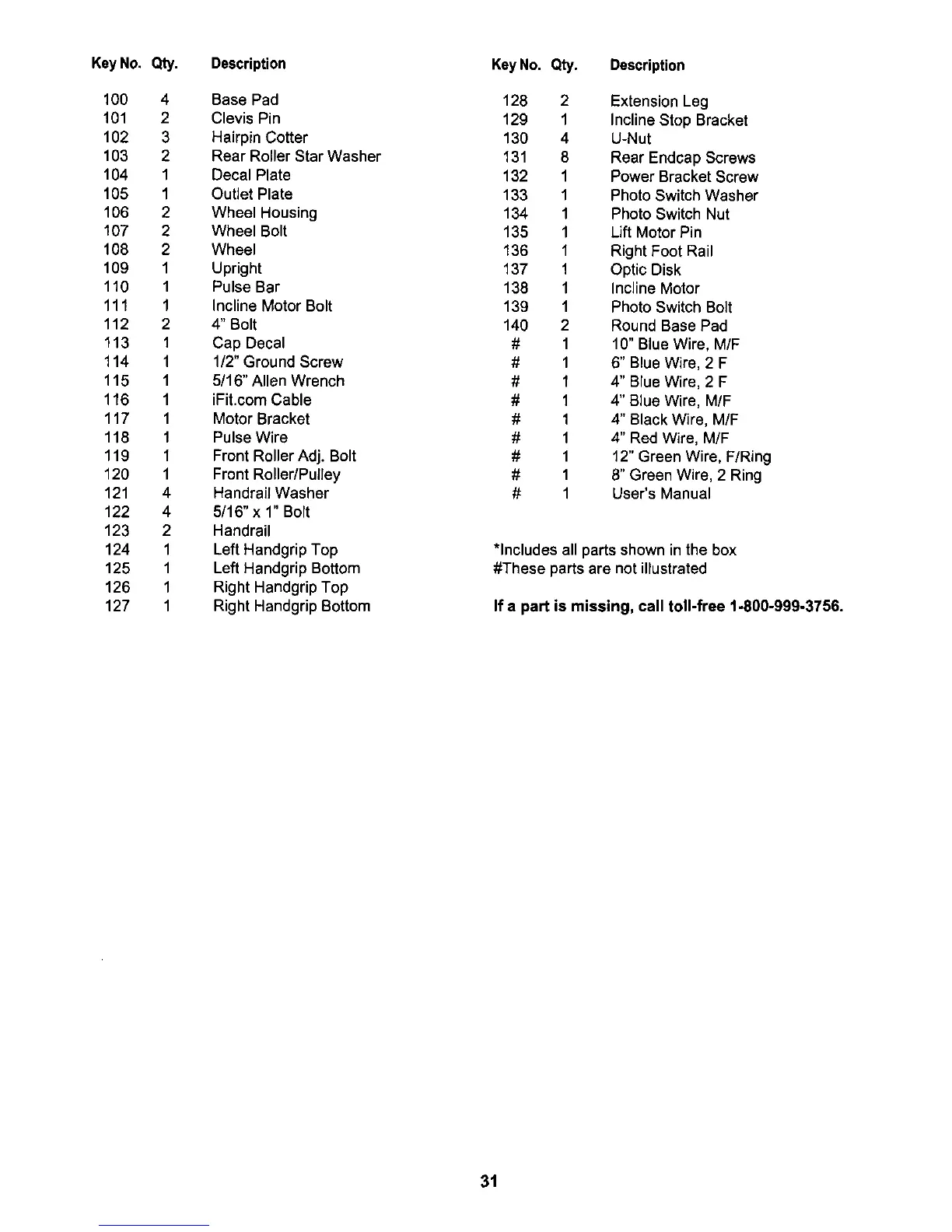

Key No. Qty.
lOO 4
101 2
102 3
103 2
104 1
105 1
106 2
107 2
108 2
109 1
110 1
111 1
112 2
113 1
114 1
115 1
116 1
117 1
118 1
119 1
120 1
121 4
122 4
123 2
124 1
125 1
126 1
127 1
Description
Base Pad
Clevis Pin
Hairpin Cotter
Rear Roller Star Washer
Decal Plate
Outlet Plate
Wheel Housing
Wheel Bolt
Wheel
Upright
Pulse Bar
Incline Motor Bolt
4" Bolt
Cap Decal
1/2" Ground Screw
5/16" Allen Wrench
iFit.com Cable
Motor Bracket
Pulse Wire
Front Roller Adj. Bolt
Front Roller/Pulley
Handrail Washer
5/16" x 1" Bort
Handrail
Left Handgrip Top
Left Handgrip Bottom
Right Handgrip Top
Right Handgrip Bottom
KeyNo. Qty. Description
128 2 Extension Leg
129 1 Incline Stop Bracket
130 4 U-Nut
131 8 Rear Endcap Screws
132 1 Power Bracket Screw
133 1 Photo Switch Washer
134 1 Photo Switch Nut
135 1 Lift Motor Pin
136 1 Right Foot Rail
137 1 Optic Disk
138 1 Incline Motor
139 1 Photo Switch Bolt
140 2 Round Base Pad
# 1 10" Blue Wire, M/F
# 1 6" Blue Wire, 2 F
# 1 4" Brue Wire, 2 F
# 1 4" Blue Wire, M/F
# 1 4" Black Wire, M/F
# 1 4" Red Wire, M/F
# 1 12" Green Wire, FIRing
# 1 8" Green Wire, 2 Ring
# 1 User's Manual
*Includes all parts shown in the box
#These parts are not illustrated
If a part is missing, call toll-free 1-800-999-3756.
