7

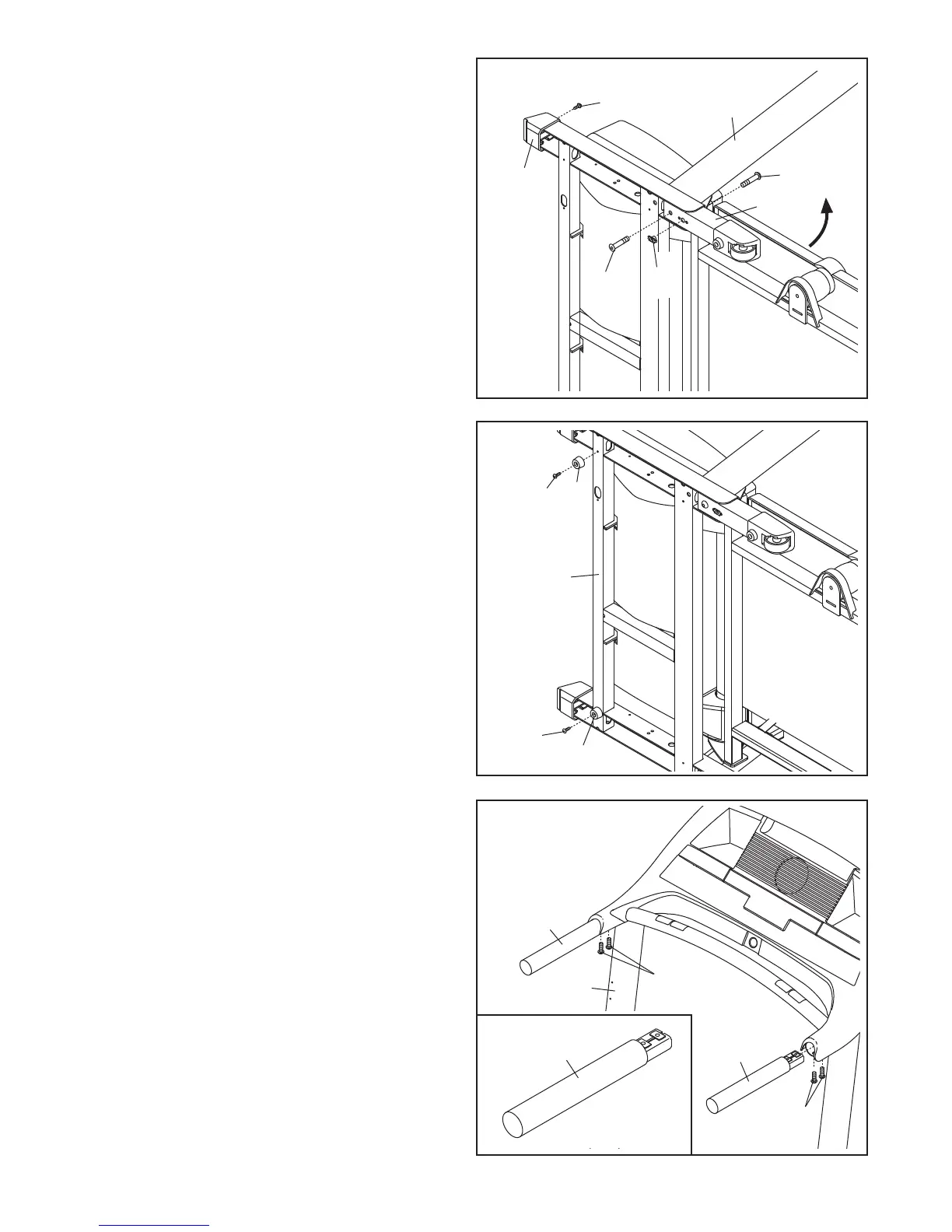

4. With the help of a second person, carefully raise
the Uprights (84) to a vertical position.
Insert the Handrails (20) into the tubes at the top
of the Upright (84). Make sure that the
Handrails are turned so that the Handrail
Bolts (64) can be threaded into the Handrails
(see the inset drawing). Start both Handrail
Bolts before tightening them.
See steps 1 and 2. Fully tighten the two Front
Endcap Screws (14).
84
64
64
20
20
2. With the help of a second person, carefully tip
the treadmill onto its right side. Do not fully fold
the treadmill until it is completely assembled.
Insert the other Extension Leg (89) into the base
o
f the Uprights (84). Hold an Extension Leg
Nut (67) in the bottom of the Extension Leg, and
thread a 2 1/4" Extension Leg Bolt (92) into the
top of the Extension Leg. Next, thread a 2 1/2"
Extension Leg Bolt (65) into the bottom of the
Extension Leg. Firmly tighten the Extension
Leg Bolts.
Slide the other Front Endcap (44) onto the base
of the Uprights (84). Partially tighten a Front
Endcap Screw (14) into the Front Endcap and
the base.
65
4
4
84
14
92
67
2
3. Attach two Base Pads (82) to the base of the
Uprights (84) with two 1" Tek Screws (83).
84
83
83
82
82
3
4
89
20
