8

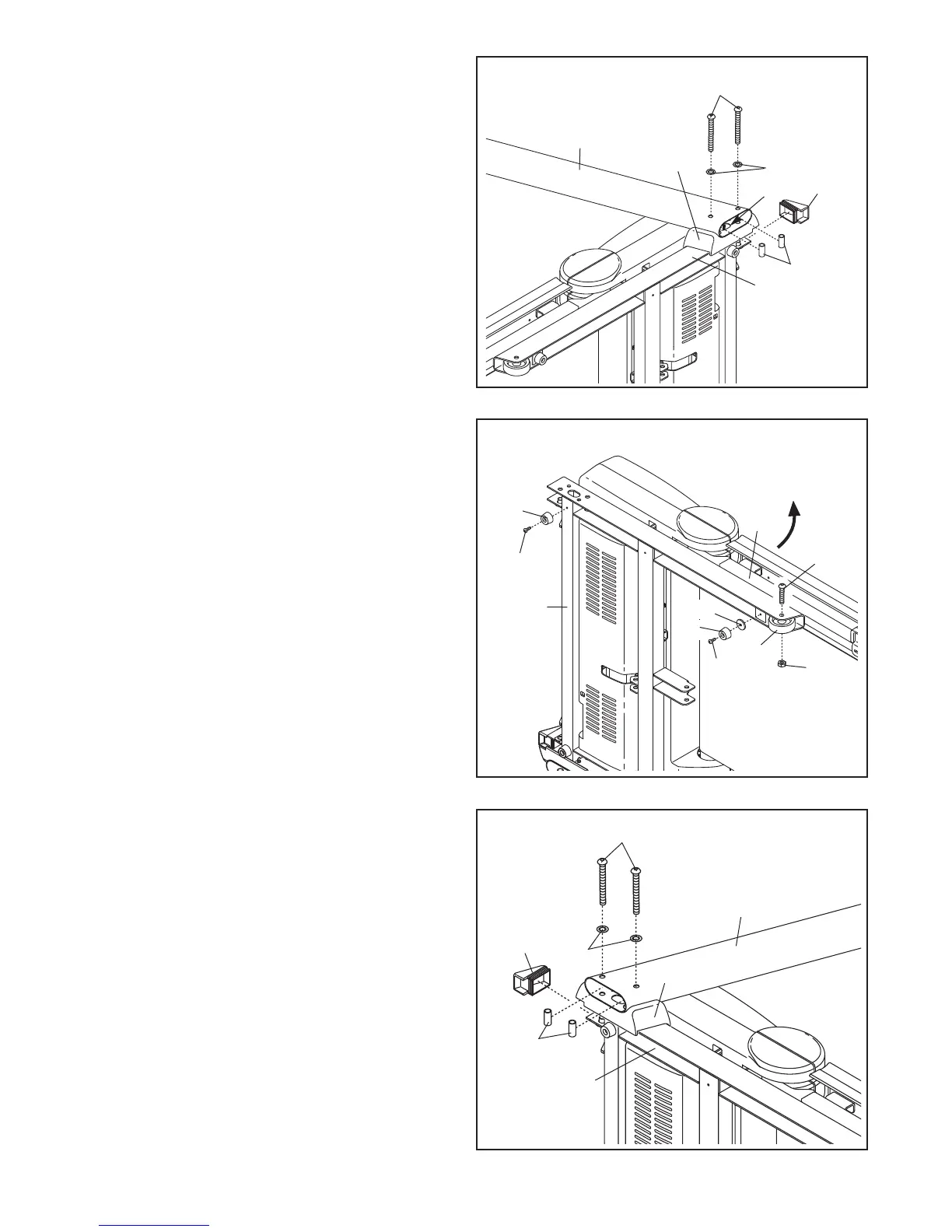

6. Set the Left Upright Spacer (76) on the Base
(83). Hold a Bolt Spacer (80) inside the lower
end of the Left Upright (74). Insert a 3/8" x 4"
Bolt (6) with a 3/8" Star Washer (9) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (80), 3/8" x 4" Bolt
(6), and 3/8" Star Washer (9). Set the Left
Upright into the Left Upright Spacer.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
77
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Attach a Wheel (84) with a 3/8" x 2" Bolt (4) and
a 3/8" Nut (8). Do not overtighten the Nut; the
Wheel must turn freely.
5
83
84
56
8
81
2
4
2
4. Hold a Bolt Spacer (80) inside the lower end of
the Right Upright (78). Insert a 3/8" x 4" Bolt (6)
with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
w
ith a second Bolt Spacer (80), 3/8" x 4" Bolt
(6), and 3/8" Star Washer (9). Set the Right
Upright into the Right Upright Spacer (79). Make
sure the Upright Wire (38) is not pinched.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
79
78
77
6
4
38
9
9
83
80
81
13
80
