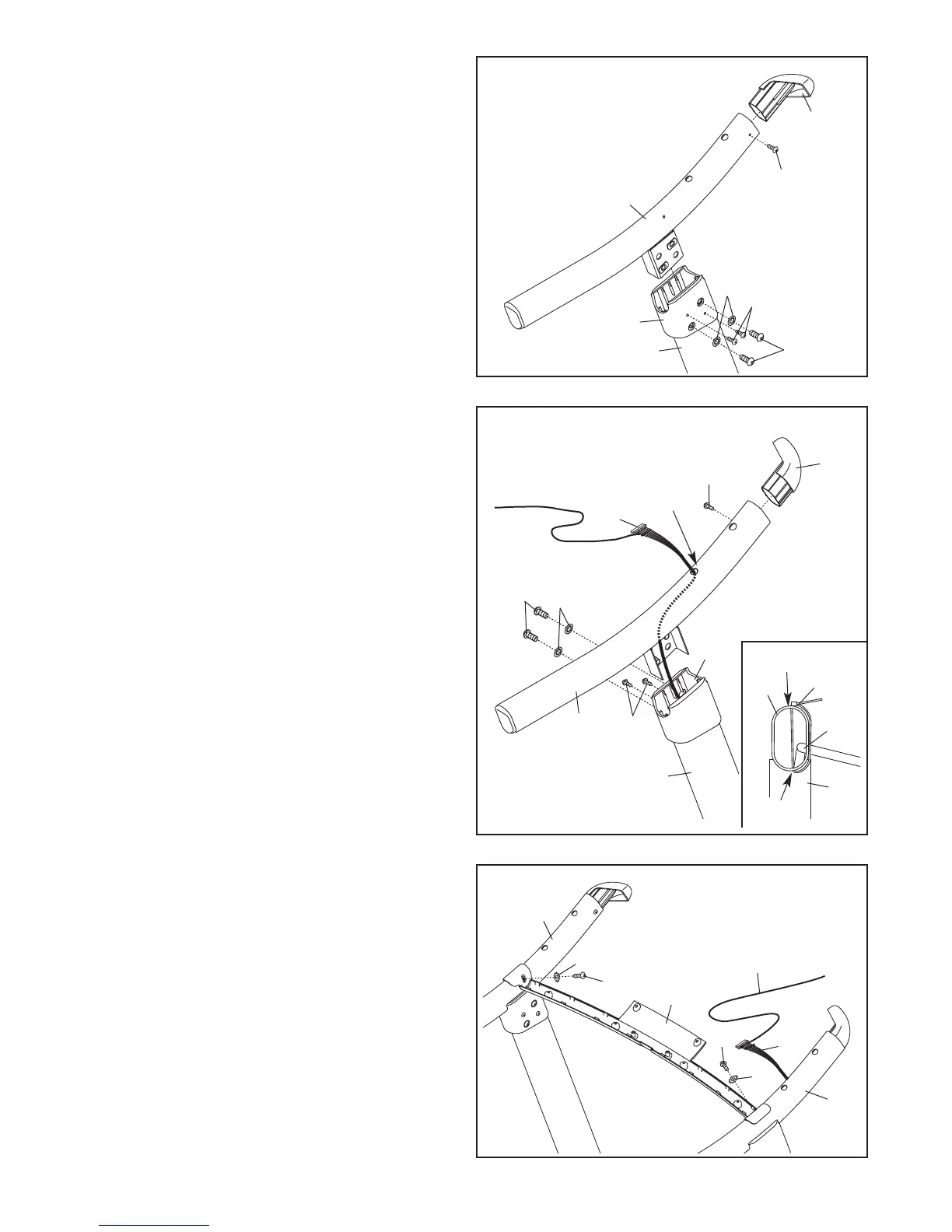

9. Attach the Pulse Bar Bottom (95) to the Left
Handrail (33) and the Right Handrail (34) with
two #10 x 3/4" Screws (5) and two #10 Star
Washers (27).
Remove the long tie from the Upright Wire (38).
9
95
5
5
38
34
33
27
27
Long Tie
7. Press a Front Handrail Endcap (97) into the Left
Handrail (33). Attach the Front Handrail Endcap
with a #8 x 3/4" Endcap Screw (16).
Slide the Left Handrail Spacer (47) onto the Left
U
pright (74). Align the large holes in the Left
Handrail Spacer with the large holes in the
Left Upright. Set the Left Handrail (33) on the
Left Handrail Spacer.
Attach the Left Handrail (33) with two 3/8" x
1 1/4" Bolts (7) and two 3/8" Star Washers (9).
Firmly tighten the Bolts.
Tighten two #8 x 3/4" Screws (12) into the Left
Handrail Spacer (47).
1
6
7
8. Hold the Right Handrail (34) near the Right
Upright (78). Insert the Upright Wire (38) through
the Right Handrail Spacer (60), into the hole in
the bottom of the Right Handrail, and out of the
large hole in the side of the Right Handrail.
See the inset drawing. Insert the included plas-
tic tie through the holes in the Right Handrail
(34) as shown. Look inside the Right Handrail.
Make sure that the plastic tie holds the
Upright Wire (38) to the side as shown in the
inset drawing. Then, tighten the plastic tie.
Press a Front Handrail Endcap (97) into the
Right Handrail (34). Attach the Front Handrail
Endcap with a #8 x 3/4" Endcap Screw (16).
Attach the Right Handrail (34) with two 3/8" x
1 1/4" Bolts (7) and two 3/8" Star Washers (9).
Firmly tighten the Bolts.
Tighten two #8 x 3/4" Screws (12) into the Right
Handrail Spacer (60).
8
33
60
78
97
38
34
12
7
9
Large
Hole
16
74
47
9
12
7
97
38
34
Tie
60
Hole
Hole
