8
7
11
5
26
23
34
26
8
18
18
16
17
4
17

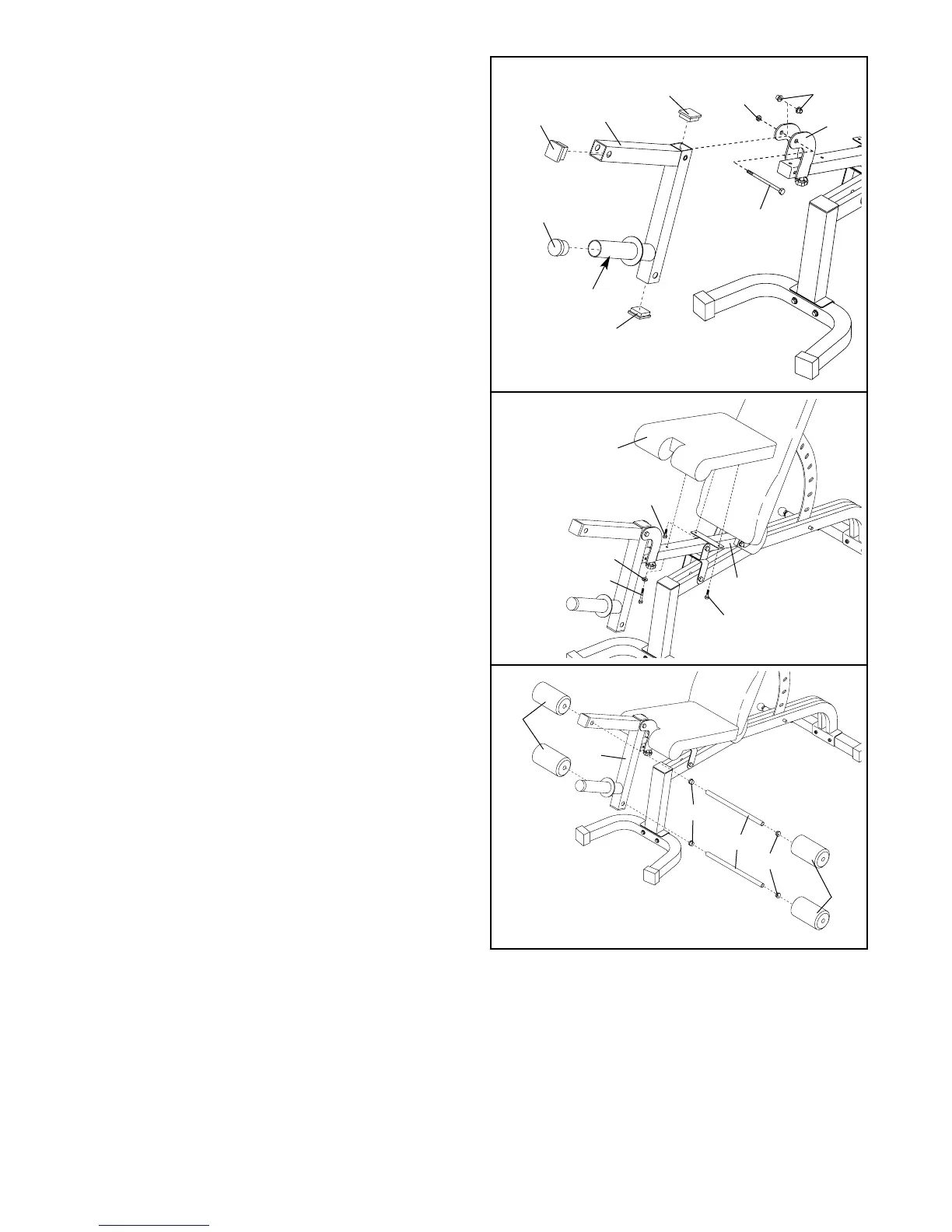

8. Press four 19mm Round Inner Caps (17) into the
ends of the two Pad Tubes (16).
Insert the Pad Tubes (16) into the holes in the
Leg Lever (4). Slide two Foam Pads (18) onto
each Pad Tube.
9. Make sure that all parts of the weight bench
are properly tightened.
7. Attach the Seat (11) to the brackets on the Seat
Frame (5) using two M6 x 16mm Bolts (26). Attach
the other end of the Seat to the Seat Frame with
an M6 Washer (34) and an M6 x 50mm Bolt (23).
6
37
4
37
14
19
Weight Tube
37
29
33
7
6. Press three 50mm Square Inner Caps (37) into
the Leg Lever (4). Press a 50mm Round Inner
Cap (19) into the weight tube.
Press two 8mm Bushings (14) into the Leg Lever
Bracket (7).
Lubricate the M10 x 78mm Bolt (29). Attach the
Leg Lever (4) to the Leg Lever Bracket (7) with
the Bolt and an M10 Nylon Locknut (33). Do not
overtighten the Nylon Locknut; the Leg Lever
must pivot freely.
To Next Page
