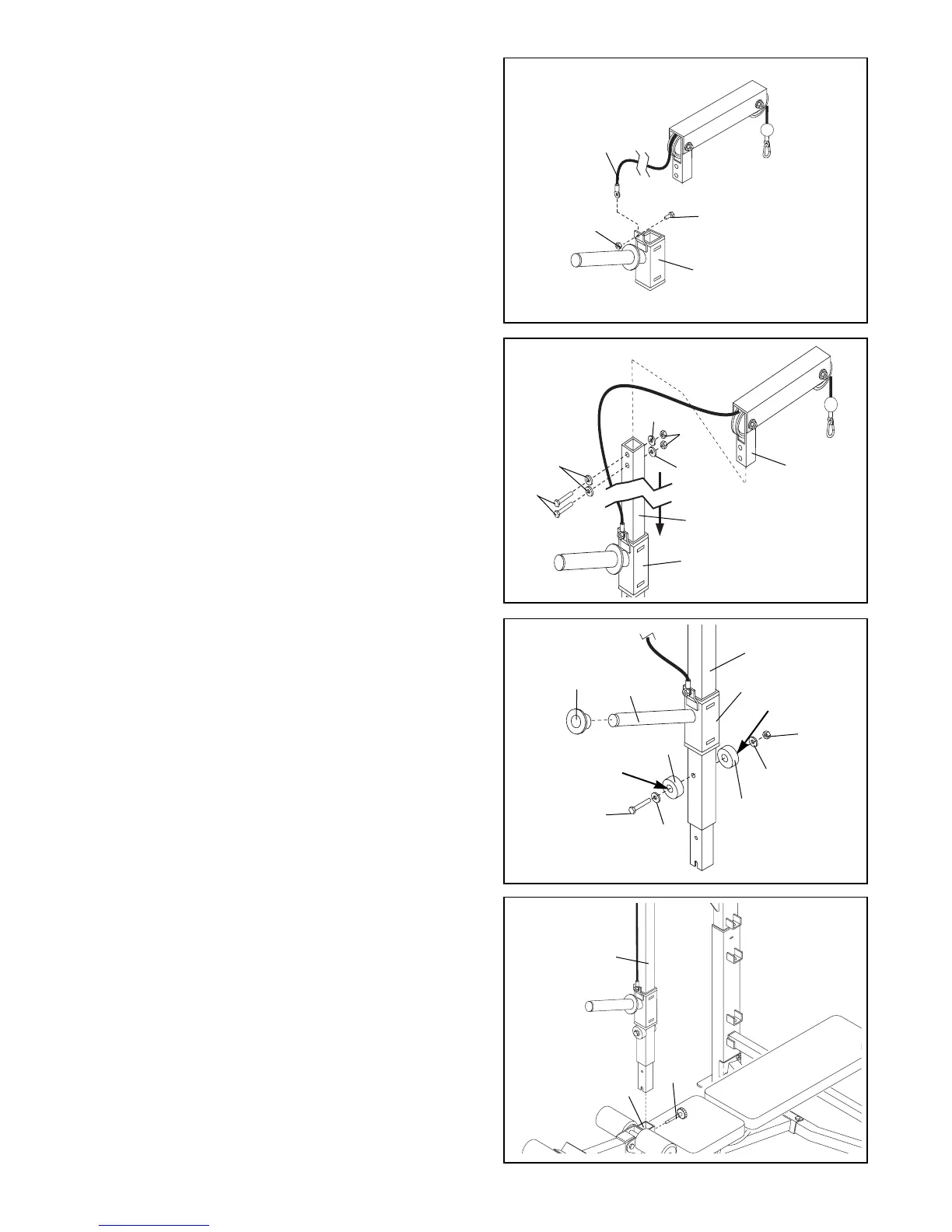

16. Attach the looped end of the Cable (45) to the Weight
Carriage (37) with an M10 x 19mm Bolt (8) and an
M10 Nylon Locknut (1).
16
11
19. Insert the Lat Tower (9) into the Front Leg (19). The
Lat Tower must be turned as shown. Secure the
Lat Tower with the Adjustment Knob (36).
18. Use the included socket tools to attach two Weight
Carriage Stops (38) to the Lat Tower (9) with the M6 x
73mm Bolt (7), two M6 Washers (50), and an M6
Nylon Locknut (2). Make sure the recessed sides of
the Carriage Stops are facing away from the Lat
Tower. Insert a small screwdriver through each socket
tool to turn the socket tool.
Slide a Weight Stop (62) onto the weight tube on the
Weight Carriage (37).
19
9
19
36
17. This step requires two people. Slide the Weight
Carriage (37) onto the Lat Tower (9). Make sure that
the Weight Carriage is oriented as shown.
Insert the Pulley Bracket (60) into the Lat Tower (9).
Attach the Pulley Bracket with two M10 x 65mm Bolts
(67), four M10 Washers (6), and two M10 Nylon
Locknuts (1).
18
17
45
8
37
1
60
1
6
6
37
9
6
67
38
37
9
38
62
Weight
Tube
7
2
50
50
Recess
Recess
