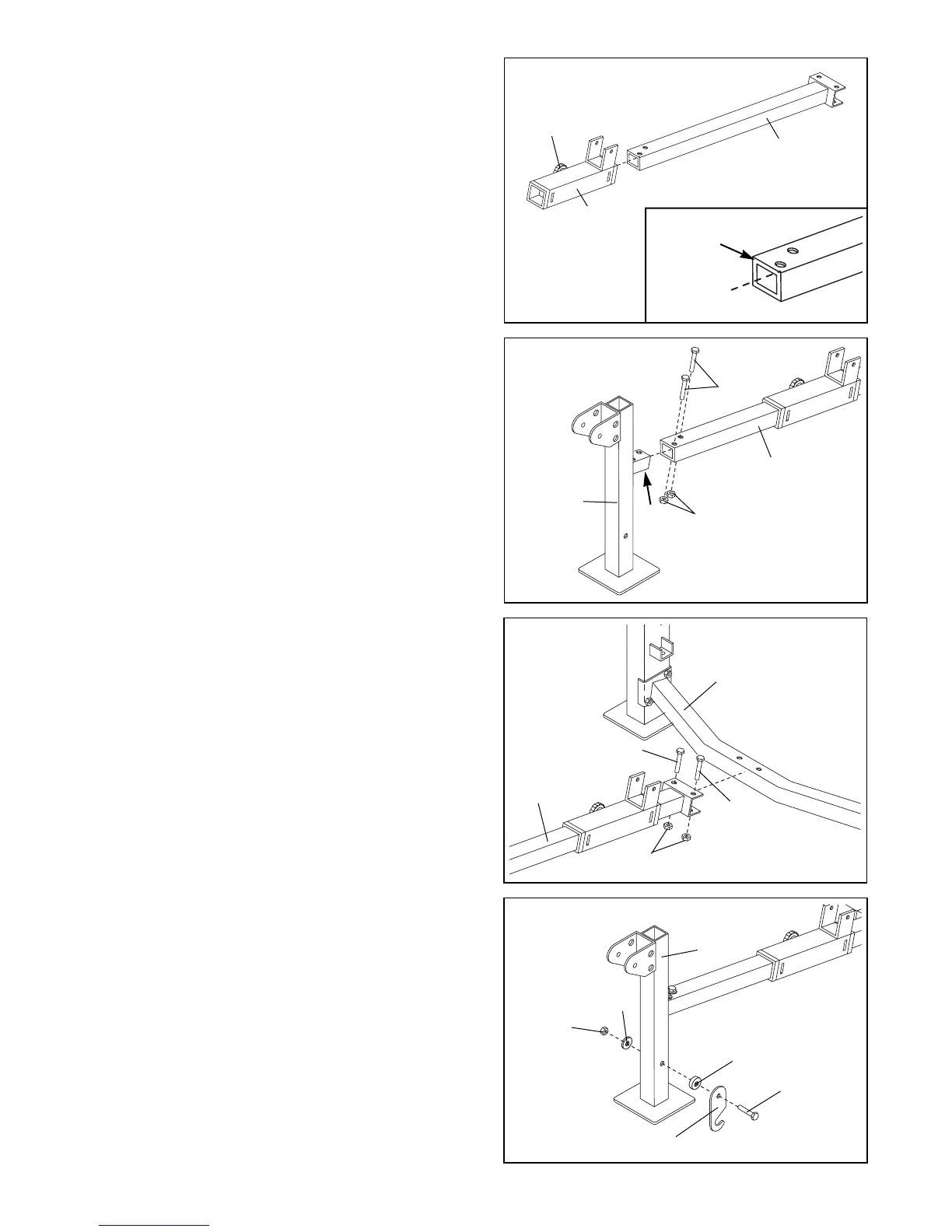

3. Attach the Bench Frame (5) to the bracket (B) on the
Front Leg (19) with two M10 x 63mm Bolts (33) and
two M10 Nylon Locknuts (1).
Make sure you tighten the Nylon Locknuts so
there is no play between the Bench Frame (5) and
the Front Leg (19).
5
19
B
1
33
3
4. Attach the Bench Frame (5) to the Crossbar (20) with
two M10 x 68mm Bolts (34) and two M10 Nylon
Locknuts (1).
Tighten the Nylon Locknuts used in steps 1, 2
and 4 now.
34
34
1
5
20
4
2. Pull out on the Seat Adjustment Knob (47) on the
Decline Carriage (11). Slide the Decline Carriage onto
the Bench Frame (5). If the Knob does not pull out,
unscrew it until it is loose.
Make sure the Bench Frame (5) is oriented as
shown. The end with no bracket is cut at an
angle, and the pointed edge must be on the top
(see the inset drawing).
2
11
5
47
Pointed
Edge on
Top
5. Attach the Lock (55) to the Front Leg (19) with the M8
x 70mm Bolt (52), an M8 Washer (23), the 7mm Lock
Spacer (65), and an M8 Nylon Locknut (13).
Do not overtighten the Nylon Locknut. You must
be able to freely pivot the Lock.
5
55
23
13
19
65
52
