11. Be careful not to pinch the wires in the Right
Handrail (105).

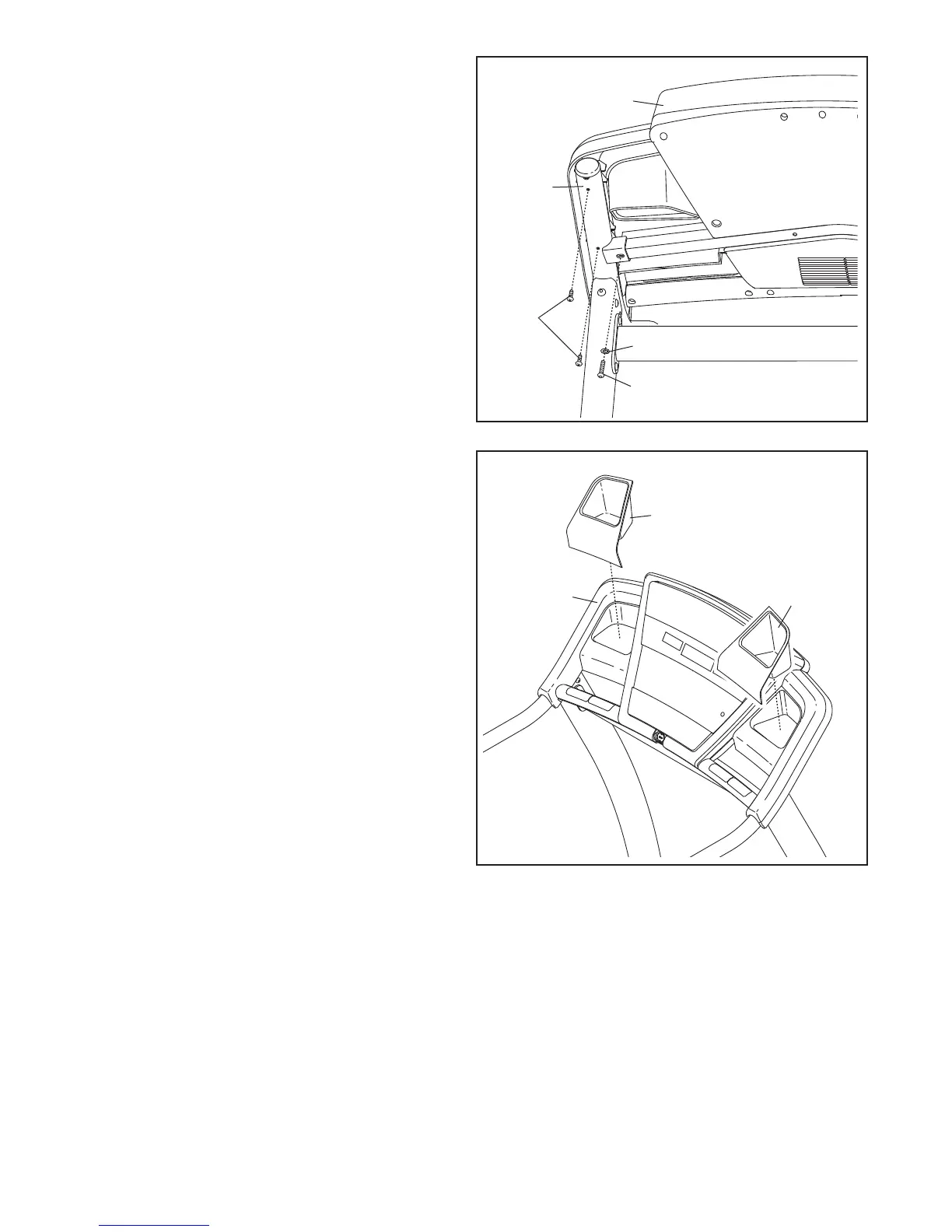

Attach the console assembly to the Right
H
andrail (105) with two #8 x 3/4" Screws (1), a
1/4" x 1 1/4" Bolt (6), and a 1/4" Star Washer
(10). Repeat this step on the left side of the
console assembly. Start all four Screws and
b
oth Bolts before tightening any of them.
See steps 4 and 6–9. Tighten all the bolts
used in these assembly steps.
1
10
6
Console Assembly
105
11
12. If necessary, press the Left Accessory Tray (94)
and the Right Accessory Tray (99) into the con-
sole assembly.
94
99
12
Console
Assembly
To Next Page
