Star Washer (29)–2
Wheel Nut (38)–2
Handrail Bolt (42)–4
Upright Bolt (65)–4
1/4” Washer
(38)–4
3/8” Washer
(66)–8
Crossbar Screw
(53)–2
1/2” Silver Screw
(48)–1
Wheel Bolt (36)–2
3/4” Tek Screw
(102)–4
1 1/4” Screw (105)–4
Silver Ground
Screw (75)–1
Star Washer (9)–6
(May be an internal Star Washer)
Extension Leg Screw (9)–2
Wheel Nut (13)–2
3/4” Tek Screw
(58)–8
Wheel Bolt (64)–2
1” Latch Screw (123)–2
1/4” Washer
(39)–4
Internal Star
Washer (77)–4
Console Bolt (76)–4
1” Tek Screw (40)–2
Extension Leg Bolt (96)–4
Latch Screw (56)–2

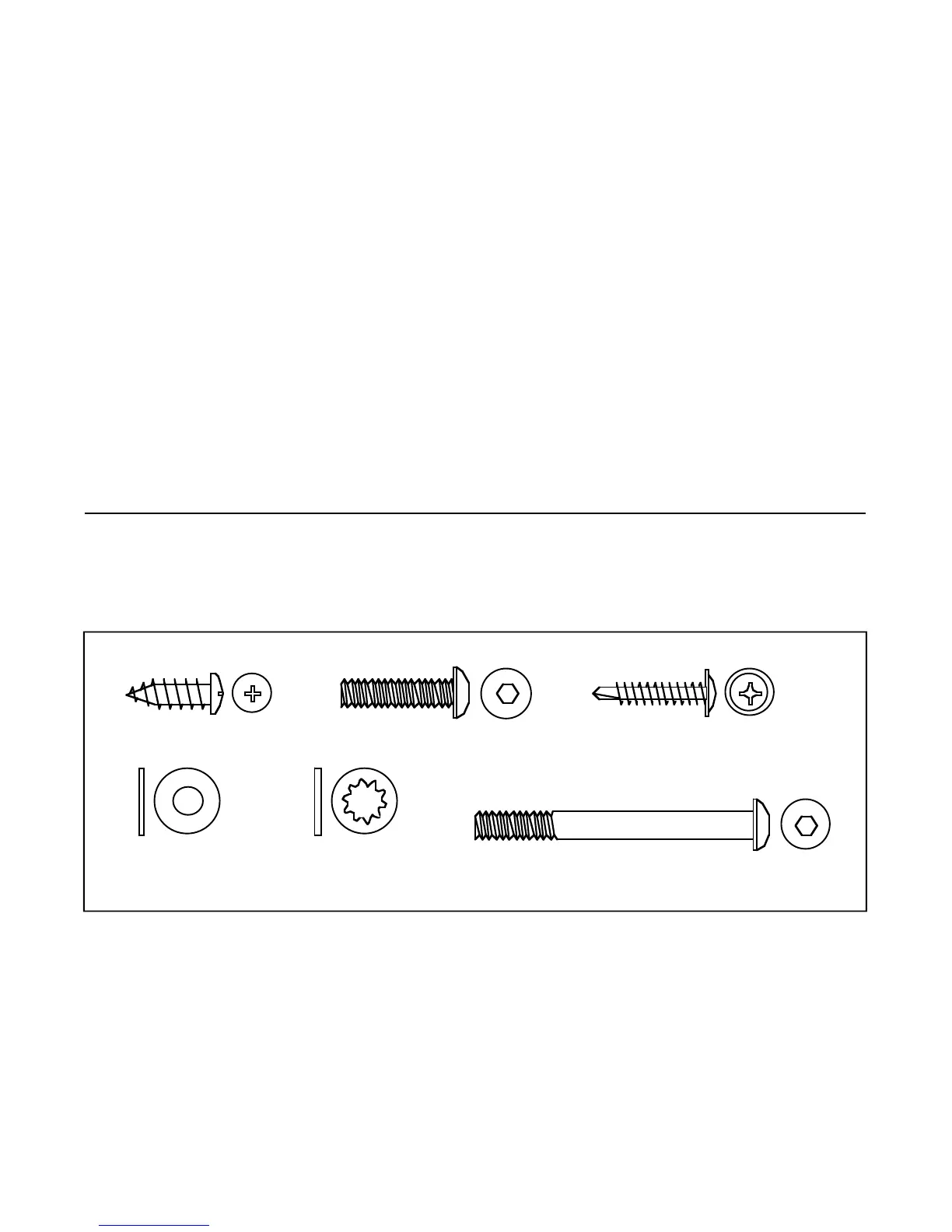

Use the drawings below to identify small parts used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled.
PART IDENTIFICATION CHART
Key No. Qty. Description Key No. Qty. Description
101 1 Console Base
102 1 iFIT.com Wire
103 8 Ground Screw/Choke Screw
104 1 Key Clip
105 1 Optic Disk
106 1 Fan
107 1 Console
108 44 Screw
109 1 Left Tray
110 1 CD Console
111 1 Right Tray
112 1 iFIT.com Wire
113 1 iFIT.com Jack
114 2 Motor Bracket Bolt
115 1 Photo Switch Screw
116 1 Console Base Frame
117 1 Left Handgrip
118 1 Photo Switch Nut
119 1 Left Bottom Handgrip
120 1 Right Handgrip
121 1 Right Bottom Handgrip
122 1 Access Door
123 1 Hood
124 1 Console Back
125 1 Photo Switch Star Washer
126 2 Rear Roller Star Washer
127 4 Upright Star Washer
128 1 Hood Bracket
129 1 Ground Wire
130 1 iFIT.com CD
# 1 12” Green Wire, F/Ring
# 1 8” Red Wire, M/F
# 1 4” Black Wire, M/F
# 1 4” Blue Wire, 2F
# 1 User’s Manual
*Includes all parts shown in the box
#These parts are not illustrated
