ProForm ACTIVATOR V5 User Manual

9
5
43
Wire Tie
36
1
4
3

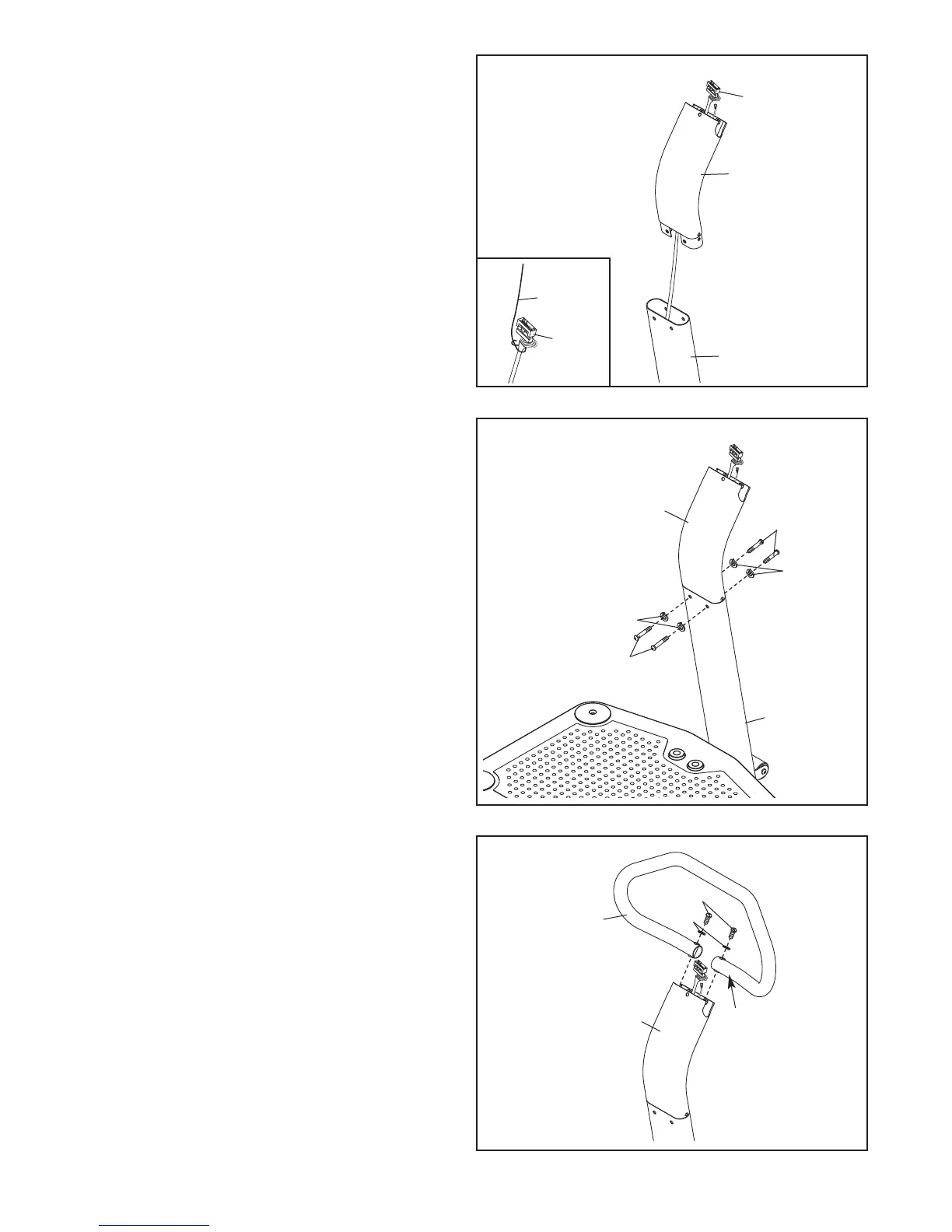

5. Have a second person hold the Upper Upright
(36) near the Lower Upright (1).
S
ee the inset drawing. Locate the wire tie in
the Upper Upright (36). Tie the lower end of the
w
ire tie to the Wire Harness (43) as shown.
Then, pull the upper end of the wire tie until the
Wire Harness is routed through the Upper
Upright.
6. Tip: Be careful not to pinch the wires during
this step.
Attach the Upper Upright (36) to the Lower
Upright (1) with four M10 x 20mm Patch Screws
(28) and four M10 Split Washers (38).
6
28
1
28
38
38
36
7. Tip: Orient the Handlebar (39) so that the
sticker marked with an “R” is in the location
shown.
Attach the Handlebar (39) to the Upper Upright
(36) with two M10 x 62mm Patch Screws (37)
and two M10 Split Washers (38).
7
37
38
39
“R”
36
