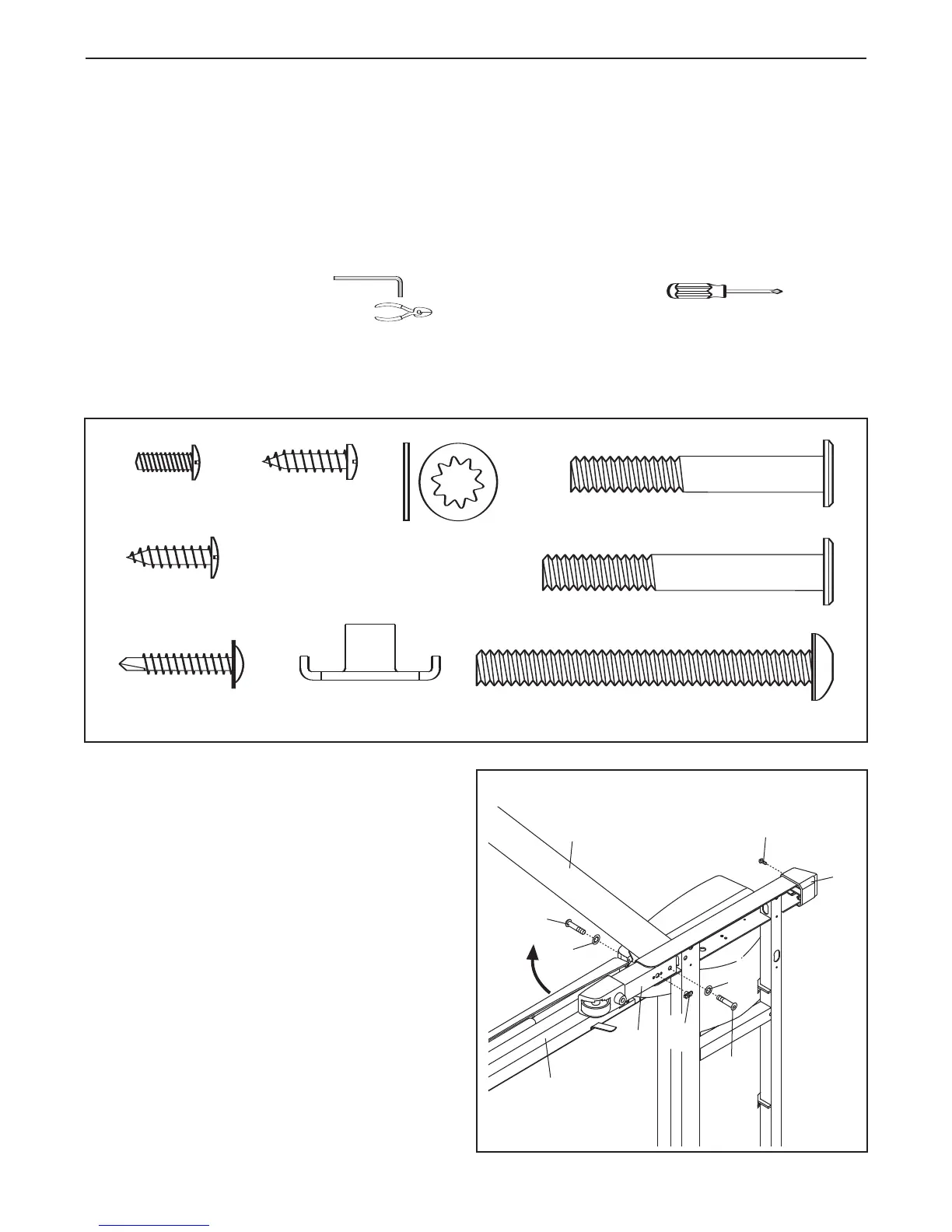

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown. Partially
fold the Frame (58) so the treadmill is more sta-
ble.
Do not fully fold the treadmill until it is
completely assembled.
Insert an Extension Leg (89) into the base of the
Uprights (84). Hold an Extension Leg Nut (67) in
the bottom of the Extension Leg, and thread a
2.25" Extension Leg Bolt (92) with a Star
Washer (8) into the top of the Extension Leg.
Next, thread a 2.5" Extension Leg Bolt (65) with a
Star Washer (8) into the bottom of the Extension
leg.
Firmly tighten the Extension Leg Bolts.
Slide a Front Endcap (44) onto the base of the
Upright (84). Partially tighten a Front Endcap
Screw (14) into the Front Endcap and the base.
6
ASSEMBLY
T
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex key and your own phillips screwdriver (with a
shaft at least 6" long) and wire cutters .
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plastic
parts, do not use power tools for assembly.
89
58
44
84
92
8
8
14
67
65
Wheel Nut (13)–2
1
W
heel Nut (32)–2
1" Tek Screw (83)–2
2 1/2” Bolt (37)–2
Handrail Bolt (64)–4
W
asher (38)–4
1
3 1/2” Bolt (45)–4
Star Washer
(106)–4
Extension Leg Bolt (96)–4
3/4” Screw (2)–6
Star Washer
(84)–2
Star Washer (8)–8
Extension Leg Nut (67)–2
Screw (3)–11
Handrail Bolt (64)–4
Ground Screw
(33)–1
Front Endcap
Screw (14)–2
Extension Leg Bolt (96)–4
2.5" Extension Leg Bolt (65)–2
2.25" Extension Leg Bolt (92)–2
1
