5
5. Tighten a 1/2” Tek Screw (113) into the right side of the
Crossbar (46) and the Right Upright (55).
Attach the Console Base (38) to the Uprights (55, 64) with
four 1/2” Screws (33). Make sure that the Wire Harness
(49) is not pinched.
38
6. Tighten the 1/2” Tek Screw (113) in the left side of the
Crossbar (46).
Orient one of the Handgrip Extensions (34) so the bottom is
open as shown, and insert it as far as possible into the
post on the left Upright (64). If necessary, tap the
Handgrip Extension with a rubber mallet to fully insert it.
Attach the Handgrip Extension with two 3/4” Tek Screws
(35), one towards the front of the post and the other to-
wards the back.
Attach the other Handgrip Extension to the post on the
Right Upright (not shown) in the same way.
34
35
113
46
35
64
Post
6
49
33
64
55
46
113
33
7
7. See the inset drawing. Identify the Left Top Handgrip
(31); there are identifying marks inside of the Handgrips.
Set the Left Top Handgrip on the left Handgrip Extension
(34). Insert two 1/2” Screws (33) into the two holes in
the Handgrip Extension indicated by the arrows.
Tighten the Screws into the Left Top Handgrip.
Important: Do not tighten the Screws into the plastic
bosses on the bottom of the Left Top Handgrip.
31
Bosses
64
33
34
7
31
43
4

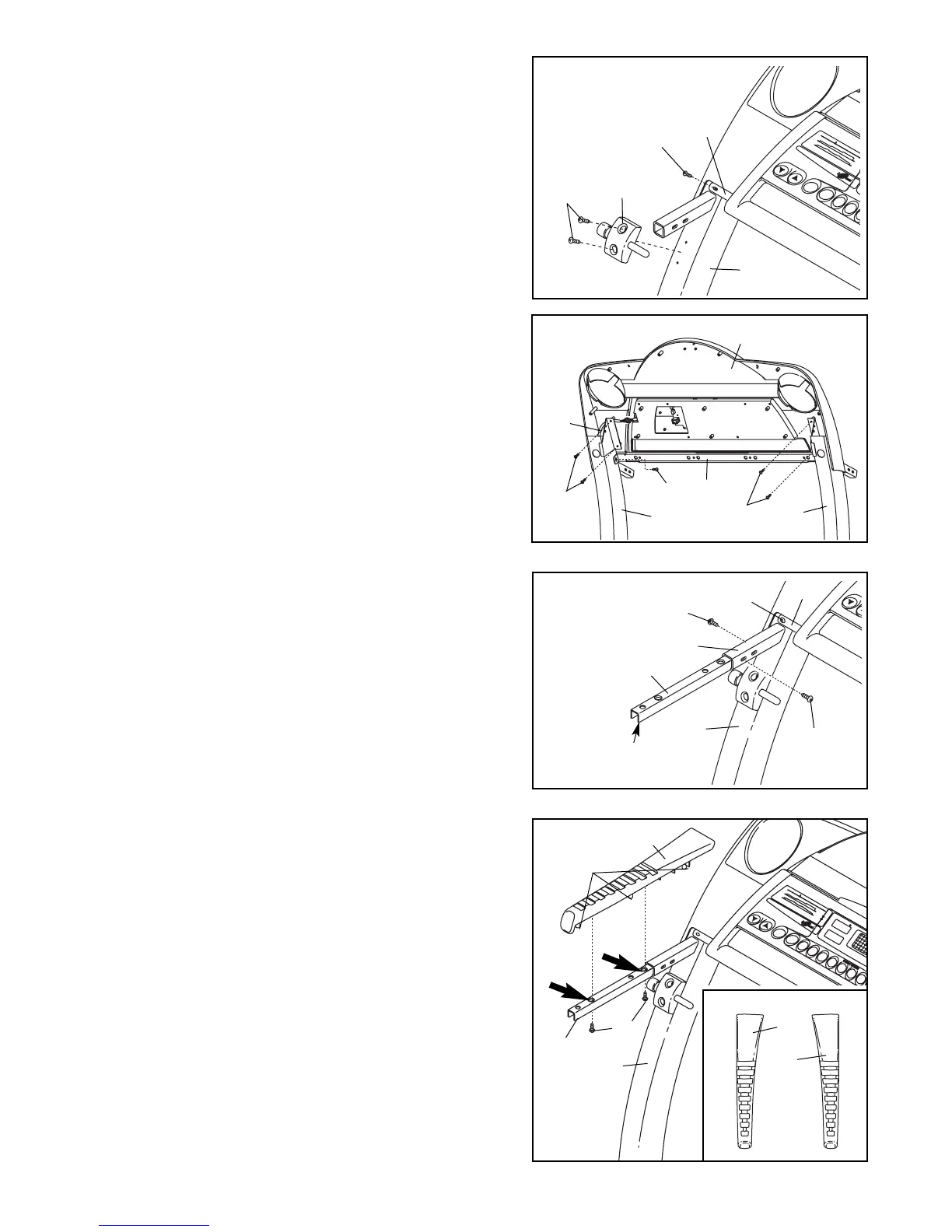

4. Loosely thread a 1/2” Tek Screw (113) into the left side of
the Crossbar (46) and the Left Upright (64).
Attach the Latch Assembly (32) to the Left Upright (64)
with two 3/4” Tek Screws (35).
113
(Leave loose)
46
64
32
35
Open side
