ProForm PFB48030 User Manual

17

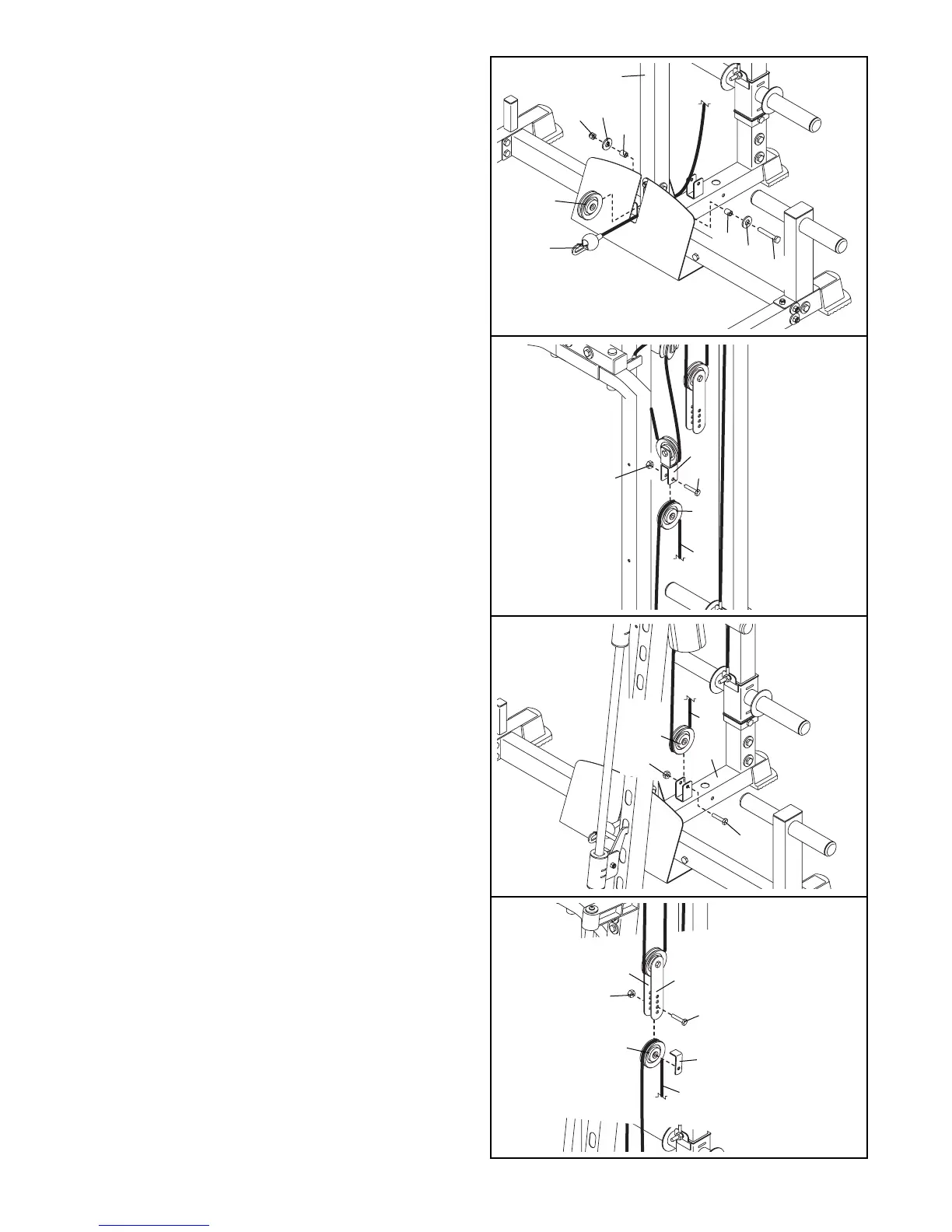

40. Locate the Low Cable (82). Route the eyelet
end of the Cable through the Center Upright (37)
and under a 90mm Pulley (90). Attach the Pulley
inside the Upright with an M10 x 75mm Bolt
(127), two M10 Washers (99), two 17mm Spacers
(86), and an M10 Nylon Locknut (97).
41. Route the Low Cable (82) over a 90mm Pulley
(90) as shown. Attach the Pulley to the Double
“U”-bracket (73) with an M10 x 45mm Bolt (112)
and an M10 Nylon Locknut (97).
42. Route the Low Cable (82) under a 90mm Pulley
(90) as shown. Attach the Pulley to the Rear
Base (33) with an M10 x 45mm Bolt (112) and an
M10 Nylon Locknut (97).
43. Route the Low Cable (82) over a 90mm Pulley
(90) as shown. Attach the Pulley and a Cable
Trap (125) to the second set of holes from the
bottom of the two Pulley Plates (72) with an M10
x 45mm Bolt (112) and an M10 Nylon Locknut
(97). Make sure the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
40
82
37
97
99
99
127
90
86
86
97
97
112
90
82
41
97
90
82
33
112
97
90
125
82
72
72
112
42
43
