18

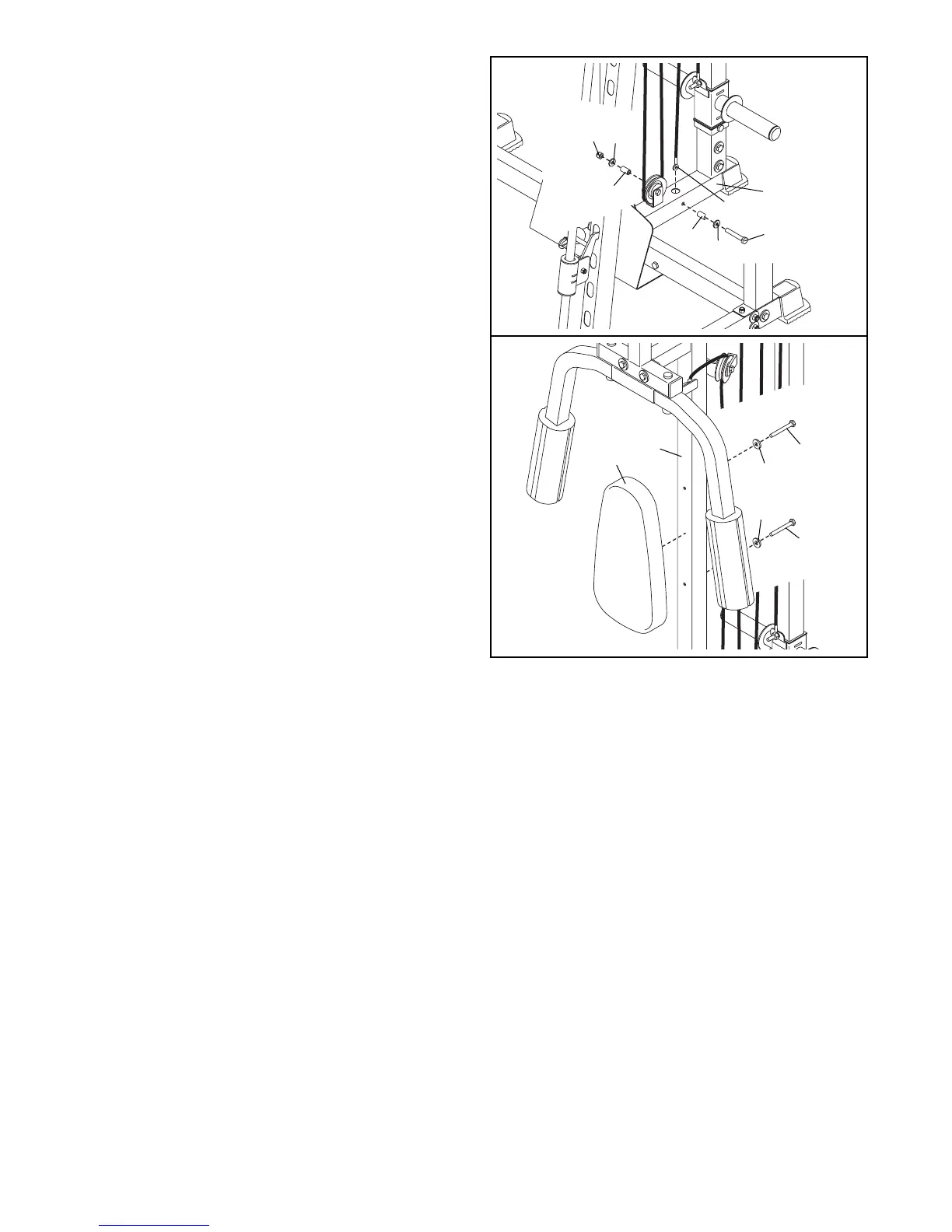

44. Attach the Low Cable (82) inside the Rear Base
(33) with an M10 x 75mm Bolt (127), two M10
Washers (99), two 27mm Spacers (87), and an
M10 Nylon Locknut (97). Do not overtighten the
Locknut; the Cable must be able to pivot easily.
45. Attach the Butterfly Backrest (80) to the Center
Upright (37) with two M6 x 72mm Screws (105)
and two M6 Washers (101).
46. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the weight bench, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAMS on page 22 of this manual for proper cable routing. If there is any slack in the
cables, you will need to remove it by tightening the cables. See TROUBLESHOOTING on page 23.
44
45
97
87
87
99
99
82
33
127
80
37
101
101
105
105
To Next Page
