11

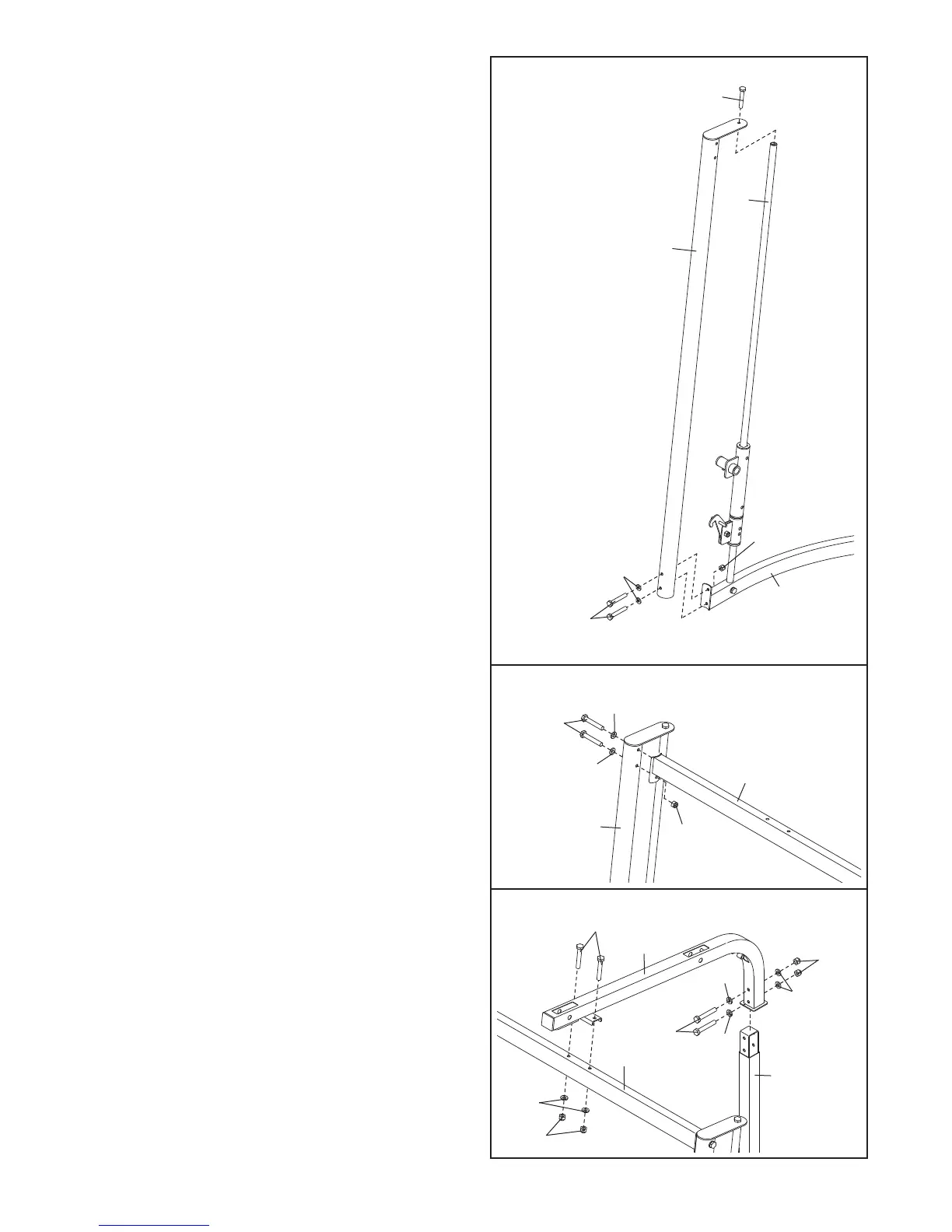

17. Attach a Front Upright (43) to the Right Rack
Base (38) with two M10 x 82mm Bolts (85), two
M
10 Washers (80), and an M10 Nylon Locknut
(77).
Do not tighten the Bolts yet.
Attach the Front Upright (43) to the right Guide
Rod (46) with an M10 x 25mm Bolt (88).
Repeat this step with the other Front Upright
(not shown).
18. Attach the Cross Frame (44) to the right Front
Upright (43) with two M10 x 82mm Bolts (85), two
M10 Washers (80), and an M10 Nylon Locknut
(77). Do not tighten the Bolts yet.
Repeat this step with the left Front Upright
(not shown).
19. Attach the Top Frame (45) to the Rear Upright
(41) with two M10 x 67mm Bolts (86), four M10
Washers (80), and two M10 Nylon Locknuts (77).
Do not tighten the Nylon Locknuts yet.
Attach the
T
op Frame (45) to the Cross Frame
(44) with two M10 x 78mm Bolts (87), two M10
Washers (80), and two M10 Nylon Locknuts (77).
Do not tighten the Nylon Locknuts yet.
43
17
8
8
4
6
38
77
85
80
85
80
77
44
43
80
18
19
87
44
41
45
80
77
86
77
80
80
80
To Next Page
